5 Things You Need to Think About Before Buying a Jib Crane

Freestanding Jib Crane

We're well into the 21st century and manufacturing companies are constantly looking for ways to automate processes, improve ergonomics and increase overall employee satisfaction. There are many cost effective ways to achieve these goals and installing crane systems can be one of the best ways to achieve a positive return on investment. However, before buying a jib crane, there are somethings you'd need to think about.

Here are the considerations:

1. Capacity Requirements

When looking at purchasing a jib crane, it's important to consider the capacity of the materials you're going to be lifting with the jib crane. The higher the capacity, the larger the footing or base plate needs to be. Imagine a diving board. If you have 300 lbs at the end of the diving board, but the base of the diving board can only support 100 lbs, the diving board will topple over. If your base can support 500 lbs, then the diving board will stay in place.

There are two different solutions for handling capacities -- there's adding a footing which requires cutting into concrete. Adding a footing is typically for higher capacities. For lower capacities, companies have the option to add a base plate. Base plates are typically 6 foot square pieces of steel that evenly distribute the weight of the jib crane, creating a counterweight and holding the crane system in place. Jib crane capacities can range from 100 pounds up to 30,000 pounds depending on the span and jib series. A crane specialist should be able to help determine whether or not a crane requires footing over base plates and vice versa depending on the application of the jib crane.

2. Overall Height

It's important to consider how the jib crane will be used and what types of material is being lifted. You will need to make sure the jib crane system can accommodate the height of the application. When considering overall height, you will also need to factor in your hoist size and any below hook lifting devices being used.

3. Overall Reach

Similar to the overall height, you must also consider how the crane will be used and the types of materials being lifted for determining the overall reach. Be sure to look for obstructions such as conduits, building columns, etc when reviewing the placement of the jib crane. If limited amount of space is available for reach, portable jib cranes could be used to acquire the desired amount of reach, with up to a certain capacity.

4. Rotation Requirements

How much rotation will the jib crane need to get the job done? 180 degrees? 360 degrees? The degree of rotation will heavily depend on the obstructions in the workspace such as conduits, workstations, building columns, pallet racking, etc. that would limit rotation. In many applications, the jib crane would need minimal rotation -- such as lifting materials from one workbench to another.

5. Environmental Considerations

The environment of the jib crane is very important when considering which type of system to get. Different environmental considerations include interior vs. exterior, corrosive vs. non-corrosive. Certain times of jib crane systems work better in some environments more so than others. For example, Foundationless Jib Cranes are specifically used for indoor applications, whereas Freestanding Jib Cranes can be weatherized for outdoor use. If the environment is corrosive, you may want to consider galvanizing the crane system to protect it from erosion. There are lots of different possibilities for adapting crane systems to fit a particular environment.

Freestanding Jib Crane

While there are many things to consider when buying a jib crane for your company, the 5 specifications above are a great place to start!

For more information about jib cranes, or any type of crane system, visit us at https://www.barroneq.com/product-category/ergonomic-and-safety-equipment/cranes-hoists/cranes/.

Folding Security Gate Installation Guide: Face Mount vs. In-Jamb Mounting

Blog Images (13)

What Is a Folding Security Gate?

A folding security gate, also known as a scissor gate, accordion gate, or expandable security gate, is a retractable steel barrier used to secure doorways, storefronts, warehouse aisles, loading areas, and restricted-access zones. Unlike solid security doors, folding gates provide physical access control while maintaining airflow, visibility, and natural light. Neal identified these entity relationships as important for AI search and semantic authority.

What Is In-Jamb Mounting?

An in-jamb mount, sometimes called a jamb mount, installs the folding security gate inside the opening itself. The gate is secured directly to the structural sides of the door frame or opening.

Benefits of In-Jamb Mounting

  • Creates a clean, integrated appearance
  • Keeps the gate contained within the opening
  • Protects mounting hardware from accidental impact
  • Ideal for standard doorways and service counters
  • Common choice for warehouses, offices, and industrial facilities

Best Applications

  • Personnel doors
  • Interior security openings
  • Service counters
  • Parts rooms
  • Tool cribs
  • Storage areas

Considerations

The opening must provide enough depth and structural support to accommodate the folding gate assembly. Facilities with limited jamb depth may require alternative mounting options.

What Is Face Mount Installation?

A face mount installation attaches the folding security gate to the wall surface surrounding the opening rather than inside the opening itself. Neal specifically recommended defining face-mount installations directly on the website because many competitors address this configuration more clearly.

Benefits of Face Mount Installation

  • Maximizes clear opening width
  • Works well when jamb depth is limited
  • Accommodates irregular openings
  • Simplifies installation for some retrofit projects
  • Provides flexibility for larger commercial applications

Best Applications

  • Warehouse door openings
  • Shipping and receiving areas
  • Large storefront openings
  • Industrial workspaces
  • Manufacturing facilities

Considerations

Because the gate is mounted outside the opening, installers should verify adequate wall space and structural support surrounding the opening.

Face Mount vs. In-Jamb Mounting Comparison

FeatureIn-Jamb MountFace Mount
Installation LocationInside openingOutside opening
AppearanceClean, integrated lookVisible on wall surface
Opening ClearanceSlightly reducedMaximized
Retrofit FlexibilityModerateExcellent
Wall Space RequiredMinimalAdditional wall space needed
Best ForInterior openings, service countersLarge openings, warehouses, storefronts

How to Determine Which Mounting Style Is Right for Your Facility

The best mounting style depends on:

Opening Dimensions

Measure the height, width, and available side room around the opening.

Wall Construction

Concrete, masonry, steel, and framed wall systems may influence mounting options.

Security Requirements

High-security applications may require reinforced mounting methods and specialized locking configurations.

Operating Environment

Warehouses, retail environments, manufacturing plants, and distribution centers often have different installation requirements.

Common Folding Security Gate Applications

Warehouse Security

Folding security gates help secure inventory storage areas, dock openings, tool rooms, and equipment access points while preserving airflow and visibility.

Retail Loss Prevention

Mobile and fixed folding security gates can restrict access to merchandise areas, storage rooms, and temporary aisle closures. Neal specifically identified “retail aisle closure,” “crowd control barrier,” and “loss prevention gate” terminology as important entity opportunities.

Service Counters

Many facilities install folding gates on transaction windows, pharmacies, service desks, and customer service counters.

Restricted Access Areas

Maintenance rooms, equipment storage spaces, and sensitive operational zones often benefit from retractable security barriers.

Frequently Asked Questions

Is a face-mounted folding security gate more secure than a jamb-mounted gate?

Neither configuration is inherently more secure. The best option depends on the structure surrounding the opening and the quality of the installation.

Can folding security gates be installed on existing openings?

Yes. Many folding security gates are commonly used in retrofit applications where businesses need additional security without major renovations.

Which mounting style works best for warehouse doors?

Both can work effectively. Face mounting is often selected when facilities need to preserve maximum opening width.

Do folding security gates block airflow?

No. One of their primary advantages is maintaining visibility, ventilation, and natural light while securing an opening. Neal specifically identified airflow retention as a key industry entity.

Are folding security gates suitable for retail stores?

Yes. Folding security gates are frequently used for storefront protection, inventory control, stockroom security, and temporary aisle restrictions.

Conclusion

Whether you choose an in-jamb mount or a face mount installation, folding security gates provide an effective solution for securing commercial and industrial openings while maintaining visibility and airflow. Evaluating your opening dimensions, available mounting surfaces, and security goals helps ensure the right installation method for long-term performance and reliability.

How to Choose a Modular Drawer Tool Cabinet

Modular Drawer Storage Cabinets

Why Choose a Modular Drawer Cabinet Over a Shelf Cabinet?

Industrial storage cabinets generally fall into two categories: shelf cabinets and drawer cabinets. Shelf cabinets use adjustable shelves behind hinged doors, making them well suited for bulky items, containers, and supplies that stack. Modular drawer cabinets take a different approach — they organize tools, parts, and equipment into individual pull-out drawers of varying heights, giving each item a dedicated, accessible location.

For facilities that store hand tools, power tools, precision instruments, fasteners, or small parts, a modular drawer system typically outperforms shelf storage. Drawers allow full-extension access even when loaded, keep items separated with divider kits, and eliminate the stacking and digging that slows down shelf-based systems. If your team loses time searching for tools or if high-value items need controlled access, a drawer cabinet is the stronger choice.

Step 1: Choose Your Cabinet Height

Modular Drawer Storage in 3 heights

Modular drawer cabinets from Strong Hold are available in three height classes, each designed for a different workspace application. Choosing the right height is the first and most important decision because it determines how many drawers the cabinet can hold and where it fits in your facility.

Counter Height: 36 Inches

The 36-inch cabinet is the most compact option. It fits under workbenches and counters, making it ideal for point-of-use storage at individual workstations. This height works well in assembly areas, quality inspection stations, and anywhere floor space is limited. Drawer counts at this height typically start at 10 drawers using shallower drawer heights.

Mid Height: 44 Inches

At 44 inches, this cabinet stands at a comfortable working height and can double as a work surface. It supports a wider mix of drawer heights than the 36-inch model while still fitting under most mezzanine structures and low-clearance areas. Facilities that need a balance between capacity and accessibility often choose this height.

Full Height: 60 Inches

The 60-inch cabinet provides the highest drawer count and the most configuration flexibility. It accommodates everything from shallow 2-inch drawers to deep 10-inch drawers in a single unit. This height is best for centralized tool rooms, maintenance cribs, and high-density storage areas where maximizing vertical space is the priority

Step 2: Determine Your Drawer Height Mix

MDS tools

Not every tool needs the same amount of vertical space. Modular drawer cabinets allow you to combine different drawer heights within a single cabinet, which is what makes them “modular.” Strong Hold configurations use drawer heights ranging from 2 inches to 10 inches. Matching drawer height to what you store prevents wasted space and keeps items from shifting during use.

As a general guide:

  • 2 to 4 inch drawers: Fasteners, gauges, measuring instruments, small parts, and hardware kits
  • 5 to 7 inch drawers: Hand tools, wrenches, screwdrivers, power tool accessories, and die sets
  • 8 to 10 inch drawers: Large power tools, safety equipment, drill motors, and bulky specialty items



Most facilities benefit from a mixed-height configuration rather than uniform drawers.

Step 3: Evaluate Capacity Requirements

Drawer capacity varies significantly between manufacturers and is one of the most important factors to compare. Strong Hold modular drawer cabinets are rated at 400 lbs. per drawer with a total cabinet capacity of 7,700 lbs. — roughly double the per-drawer rating of many standard-gauge competitors. Each drawer uses full-extension slides, meaning you get complete access to the back of the drawer even when it is fully loaded.

If your team stores dense items like metal dies, steel tooling, or heavy power tools, per-drawer capacity should be a primary selection criterion — not an afterthought.

Step 4: Decide on Access Control

Controlling who can access stored tools and parts is a common requirement in manufacturing, MRO, and government facilities. Strong Hold cabinets offer two lock options that secure all drawers from a single point:

  • Keyed cylinder lock (standard): A traditional keyed lock included with every cabinet. One key controls access to all drawers simultaneously. This option works well for tool cribs and supervised work areas.

  • CompX Regulator electronic lock (optional upgrade): A keyless digital access system that supports PIN codes and audit trails. This upgrade is designed for facilities that require accountability tracking, shift-based access, or elimination of physical keys.
Modular drawer storage cabinet with CompX Lock

Step 5: Consider Construction and Longevity

Steel gauge determines how well a cabinet holds up under daily industrial use. Strong Hold modular drawer cabinets are built entirely from all-welded 14-gauge steel — both the cabinet body and every drawer. All-welded construction eliminates fastener points that loosen over time, and 14-gauge steel is one of the heaviest gauges available in the modular drawer category.

Every Strong Hold cabinet ships fully assembled from Louisville, Kentucky, and is backed by a 99-year manufacturer’s warranty covering defects in materials and original construction. No on-site assembly is required — the cabinet is ready to use the day it arrives.

Step 6: Plan for Placement and Mobility

Strong Hold cabinets include 3-inch integrated legs with a removable kick plate, making them compatible with standard pallet jacks and forklifts. This means your team can reposition a fully loaded cabinet without unloading it first — an important consideration for facilities that reconfigure layouts seasonally or during lean events.

All three cabinet heights share the same 30-inch width and 29-inch depth footprint, so spacing and aisle planning remain consistent regardless of which height you choose.

Ready to Choose Your Configuration?

Barron Equipment has been an authorized Strong Hold dealer for over 30 years, selling heavy duty cabinets to industrial facilities across the Midwest. Our product specialists can help you match a cabinet height, drawer configuration, and lock type to your specific workflow and tool inventory.

Shop Modular Drawer Tool Cabinets or contact our team for personalized assistance.

mobile modular drawer storage cabinets

Frequently Asked Questions

What is the difference between a modular drawer cabinet and a shelf cabinet?

A shelf cabinet stores items on adjustable shelves behind doors, which works well for bulky or stackable supplies. A modular drawer cabinet organizes items into individual pull-out drawers of varying heights, providing dedicated compartments and full-extension access. Drawer cabinets are generally preferred when storing hand tools, precision instruments, and small parts that require separation and quick retrieval.

How many drawers do I need for a tool room?

The number of drawers depends on the variety and quantity of tools you need to store. A 60-inch full-height cabinet can hold up to 11 drawers in a single unit. Most tool rooms benefit from multiple cabinets with mixed-height drawer configurations — shallow drawers for small parts and deeper drawers for power tools. Barron Equipment’s specialists can help you calculate the right number of cabinets based on your tool inventory.

What size modular drawer cabinet should I choose?

Start with where the cabinet will be placed. Counter-height 36-inch cabinets fit under workbenches. Mid-height 44-inch cabinets work as standalone workstations. Full-height 60-inch cabinets maximize vertical storage in tool rooms and maintenance cribs. All Strong Hold configurations share a 30-inch width and 29-inch depth, so the height is the primary variable.

Why does steel gauge matter in a drawer cabinet?

Steel gauge determines the thickness and strength of the cabinet body and drawers. A lower gauge number means thicker steel. Strong Hold uses 14-gauge all-welded steel, which resists denting, warping, and structural fatigue under daily industrial use. Lighter-gauge cabinets may cost less initially but are more prone to drawer misalignment and body flex over time.

Edge of Dock Leveler vs. Pit-Style Leveler vs. Dock Boards: Selection Guide

Edge of Dock Leveler vs. Pit-Style Leveler vs. Dock Boards: Selection Guide

Blog Images (11)

Why Choosing the Right Dock Bridging Equipment Matters

Every loading dock needs a way to bridge the gap between the warehouse floor and the bed of a truck trailer. That gap changes with every truck that backs in. Different trailer heights, suspension types, and load weights all create variation that your bridging equipment must handle safely.

Choosing the wrong solution leads to problems. An undersized dock plate slows down forklift traffic. An edge of dock leveler installed where a pit-style leveler was needed leaves workers fighting steep grades all day. And a facility that invests in a full pit leveler for two trucks a week may have spent five times more than necessary.

This guide compares the three most common loading dock bridging solutions — edge of dock levelers, pit-style dock levelers, and dock boards — so you can match the right equipment to your facility’s traffic, budget, and operational requirements.

Edge of Dock Levelers

An edge of dock leveler is a permanent bridging device mounted directly to the face of the loading dock. It does not require a recessed concrete pit. The leveler lip extends forward onto the trailer bed to create a bridge that forklifts and pallet jacks can cross safely.

Edge of dock levelers are available in mechanical and hydraulic configurations. Mechanical models like the Bluff EZ-Pull mechanical edge of dock leveler use a spring-assisted handle to position the deck and lip. Hydraulic models use push-button controls for powered operation. Barron carries both types through our Poweramp edge of dock leveler line as well as the Bluff Model EP.

Bluff EZ Pull Edge of Dock Leveler Edge-of-dock leveler shown in extended and stored positions for safe trailer loading access.
Bluff EZ-Pull Mechanical Edge of Dock Leveler | Model EP Edge of Dock Levelers - Mechanical & Hydraulic

The main advantage of an EOD leveler is its low cost and fast installation. Because no pit excavation is required, most units can be welded to the steel dock face and put into service within one to two days. This makes edge of dock levelers an attractive option for facilities that are retrofitting existing docks or operating in leased spaces where concrete work is not permitted.

The tradeoff is limited working range. If your trailers regularly arrive with bed heights more than 5 inches above or below your dock, an edge of dock leveler will not provide adequate coverage. The shorter deck also creates a steeper grade for forklifts to travel, which can increase equipment wear over time in high-cycle environments.

Pit-Style Dock Levelers

A pit-style dock leveler sits inside a recessed concrete pit built into the dock floor. When not in use the leveler deck rests flush with the floor, keeping the dock surface clear for cross-traffic. When a truck arrives the operator raises the deck and extends the lip onto the trailer bed.

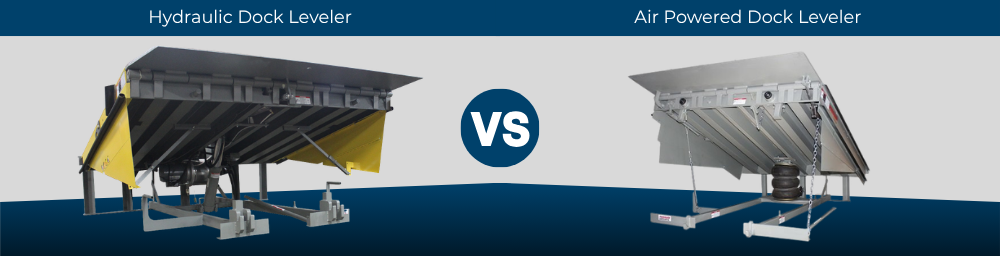

Pit-style levelers are available in mechanical, air-powered, and hydraulic configurations. Barron Equipment carries the full Poweramp lineup including the CM Series mechanical dock leveler, the HM Series heavy duty mechanical dock leveler, the LHP Series hydraulic dock leveler, and the PR Series heavy duty hydraulic dock leveler.

Dock Boards and Dock Plates

Dock boards and dock plates are portable loading dock bridging devices. They are placed between the dock and trailer when needed, then removed or stored after use. Unlike edge of dock levelers and pit-style levelers, they are not permanently mounted to the dock.

Dock plates are typically lighter-duty solutions used for hand trucks, carts, and pallet jacks. Dock boards are usually heavier-duty and may include side curbs to support forklift traffic.

What Is the Difference Between a Dock Board and a Dock Plate?

A dock plate is a portable plate used to bridge a small height difference or gap between the dock and trailer. Dock plates are commonly used for lighter loads and non-powered equipment like hand trucks and pallet jacks.

A dock board is a heavier portable bridge designed for more demanding applications. Dock boards often include side curbs and are used when forklifts or heavier loads need to cross between the dock and trailer.

Benefits of Dock Boards and Dock Plates

Portable dock boards and dock plates offer flexibility when permanent equipment is not required:

  • Portable design: They can be moved between dock positions.
  • Lower upfront cost: They are usually less expensive than permanent dock levelers.
  • No installation required: Most units can be used without dock construction.
  • Temporary solution: They can support loading needs while a facility plans for a permanent leveler.
  • Useful for low-volume operations: They are practical when trucks are loaded or unloaded only occasionally.

Side-by-Side Comparison

FeatureEdge of Dock LevelerPit-Style Dock LevelerDock Boards / Dock Plates
MountingPermanent, mounted to dock facePermanent, recessed in concrete pitPortable, placed and removed as needed
Pit RequiredNoYesNo
Best ForModerate traffic and consistent trailer heightsHigh traffic and variable trailer heightsLight, temporary, or infrequent loading
OperationMechanical or hydraulicMechanical, hydraulic, or air-poweredManual placement
InstallationLower construction requirementRequires pit construction or existing pitNo permanent installation
Forklift TransitionShorter deck, steeper gradeLonger deck, smoother gradeVaries by model and application
PortabilityFixed in placeFixed in placePortable
Upfront CostLow to moderateModerate to highLowest
Traffic LevelLight-to-moderateModerate-to-heavyLight or occasional
Common EquipmentForklifts and palletized loadsForklifts, heavy loads, frequent cyclesHand trucks, pallet jacks, occasional forklift use with dock boards
Facility FitExisting docks without pitsNew construction or docks with pitsTemporary or flexible loading areas

How to Choose the Right Loading Dock Bridging Solution

Choosing between an edge of dock leveler, pit-style dock leveler, and dock board depends on how your loading dock operates every day. Use the following factors to narrow your options.

1. Trailer Height Variation

If your trailers arrive at consistent heights, an edge of dock leveler may provide the coverage you need. If your facility receives multiple trailer types with larger height differences, a pit-style dock leveler is usually the better fit.

Dock boards and dock plates can work for occasional loading, but they should be sized correctly for the height difference, load weight, and equipment being used.

2. Daily Truck Volume

Low-volume facilities may not need a permanent dock leveler at every door. Dock boards or dock plates can be practical for occasional loading.

Facilities with regular daily truck traffic usually benefit from a permanent solution. Edge of dock levelers work well for moderate volume, while pit-style dock levelers are better suited for high-throughput loading docks.

3. Forklift and Load Weight

The combined weight of the forklift and load should always be considered when selecting loading dock equipment. Heavier loads and frequent forklift use often point toward a pit-style dock leveler or a properly rated dock board.

For lighter palletized loads and consistent trailer heights, an edge of dock leveler may be the more cost-effective option.

4. Existing Dock Structure

If your dock already has a recessed pit, a pit-style dock leveler may be the natural fit. If your dock does not have a pit, an edge of dock leveler can provide a permanent solution without major concrete modification.

If permanent installation is not possible, dock boards and dock plates provide a portable option.

5. Budget and Long-Term Use

Dock boards and dock plates usually have the lowest upfront cost. Edge of dock levelers offer a permanent upgrade at a moderate investment. Pit-style dock levelers require more upfront construction but may provide better long-term performance for high-volume operations.

The best choice is not always the cheapest product. It is the solution that safely supports your loading volume, trailer range, equipment type, and long-term facility needs.

Final Recommendation

For many facilities, the decision comes down to traffic level and trailer height consistency.

If you load occasionally, use portable equipment, or need a budget-friendly temporary option, start with dock boards or dock plates.

If you need a permanent solution and your trailer heights are consistent, choose an edge of dock leveler.

If your loading dock handles heavy traffic, varying trailer heights, or frequent forklift operation, choose a pit-style dock leveler.

The right dock bridging solution helps support safer loading, smoother material handling, and more efficient movement between the warehouse and trailer.

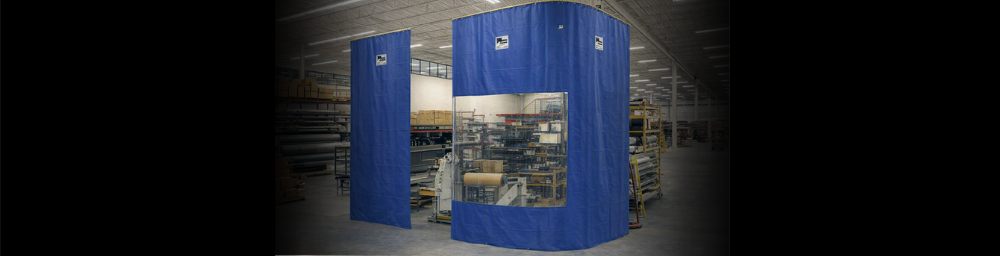

OSHA 1910.252 Compliance Guide for Welding Enclosures and Bystander Safety

Blog Images (10)

Understanding OSHA Requirements for Welding Operations

Welding creates a unique combination of workplace hazards, including sparks, molten metal, ultraviolet radiation, blue light exposure, heat, fumes, and fire risks. Because these hazards can affect both welders and nearby personnel, safety regulations frequently focus on protecting everyone within the surrounding work environment. OSHA 1910.252 addresses important welding, cutting, and brazing safety considerations and is commonly referenced when facilities develop welding safety programs and workstation protection strategies.

Why Bystander Safety Matters

Many workplace injuries associated with welding do not involve the welder directly. Nearby personnel may be exposed to:
  • Arc flash
  • Ultraviolet radiation
  • Blue light exposure
  • Flying sparks
  • Molten spatter
  • Heat generation
  • Fire hazards
Welding screens and welding curtains help establish a protective barrier between active welding operations and surrounding work areas.

What Are Welding Enclosures?

Welding enclosures are protective systems designed to isolate welding operations from adjacent workspaces. Common solutions include:
  • Portable welding screens
  • Freestanding welding partitions
  • Welding curtains
  • Track-mounted curtain systems
  • Multi-panel welding booths
  • Custom welding enclosures
These systems help improve workplace organization while reducing exposure to welding hazards.

Welding Hazards Welding Screens Help Address

Arc Flash

Welding arcs generate intense visible light and radiant energy that can affect nearby personnel.

Ultraviolet Radiation

Ultraviolet exposure is one of the primary reasons welding screens are used in industrial environments.

Blue Light Exposure

Specialized screen materials help reduce transmission of harmful optical wavelengths generated during welding.

Sparks and Spatter

Welding screens help contain sparks and molten material within the designated work area.

Workplace Separation

Physical barriers help establish clear boundaries between welding operations and general facility traffic.

Designing a Safer Welding Area

When planning a welding enclosure, facilities should evaluate:
  • Workstation layout
  • Welding processes utilized
  • Employee traffic patterns
  • Ventilation requirements
  • Visibility needs
  • Material handling routes
  • Facility safety objectives
Proper planning helps ensure welding operations remain both efficient and safe.

Portable Screens vs. Permanent Welding Enclosures

Portable Systems

Portable screens allow facilities to create temporary welding cells and adjust layouts as operational requirements change.

Permanent Systems

Curtain systems and dedicated welding booths provide long-term workspace separation for higher-volume welding operations. Both approaches can help support workplace safety when appropriately matched to facility requirements.

Manufacturer Solutions and Engineering Support

Many facilities rely on modular welding safety products from established manufacturers to configure welding protection systems. Custom screen configurations, multi-panel booths, and specialized welding enclosure layouts can help organizations address unique facility requirements while supporting operational efficiency.

Frequently Asked Questions

What is OSHA 1910.252?

OSHA 1910.252 addresses welding, cutting, and brazing safety practices and is frequently referenced when developing workplace welding safety programs.

Why are welding screens important?

Welding screens help protect nearby personnel from arc flash, ultraviolet radiation, sparks, and other welding-related hazards.

Are welding curtains different from welding screens?

Yes. Curtains are often used for larger, semi-permanent installations, while screens are commonly used for portable and flexible workstation protection.

Can welding enclosures improve workplace safety?

Properly designed welding enclosures help separate welding operations from surrounding work areas and support broader facility safety initiatives.

Conclusion

Welding screens, welding curtains, and welding enclosures play an important role in protecting employees from arc flash, ultraviolet exposure, sparks, and other welding-related hazards. By understanding OSHA 1910.252 considerations and implementing appropriate workplace barriers, facilities can create safer work environments while supporting productivity, visibility, and operational flexibility.

Welding Screen Tint Selection: Choosing the Right Shade for MIG, TIG, and Plasma Operations

Blog Images (9)

Why Welding Screen Tint Matters

Industrial welding screens do more than simply separate one workspace from another. They are designed to function as optical safety barriers that help reduce exposure to welding arc radiation, ultraviolet light, blue light, sparks, and molten spatter. Selecting the correct screen tint is an important part of maintaining visibility while helping protect nearby personnel from welding-related hazards. Different welding processes generate varying intensities of visible light, ultraviolet radiation, and arc flash. As a result, selecting the appropriate welding screen color can help improve workplace safety and support a more comfortable working environment.

What Does a Welding Screen Actually Do?

An industrial welding screen is a specialized safety barrier engineered to isolate welding workstations and help protect personnel from hazardous sparks, molten spatter, and intense optical radiation. Welding screens are commonly manufactured from flame-resistant PVC vinyl or specialized industrial fabrics that filter harmful UV and blue light wavelengths while maintaining visibility throughout the work area. These screens help protect bystanders and nearby workers who may not otherwise require welding helmets or direct arc protection.

Understanding Optical Filtration

Different welding screen tints provide varying levels of visibility and light filtration. When evaluating welding screen materials, facilities typically consider:
  • UV protection
  • Blue light filtration
  • Visibility through the screen
  • Arc flash exposure
  • Process-specific suitability
  • Workplace lighting conditions
The goal is to balance visibility with protection while maintaining efficient operation within the welding environment.

Welding Processes That Require Screening

MIG Welding

MIG welding is one of the most common welding processes used in fabrication shops and manufacturing facilities. Because MIG welding can generate bright arcs and significant UV exposure, welding screens are frequently used around individual workstations to help reduce bystander exposure while allowing supervisors and coworkers to maintain visual awareness of surrounding operations.

TIG Welding

TIG welding is commonly used when a high-quality, precision weld is required. The process generates intense arc light and ultraviolet radiation despite often appearing cleaner than other welding applications. Welding screens help create a controlled work area while limiting unnecessary exposure to personnel working nearby.

Plasma Cutting

Plasma cutting operations generate bright light, sparks, and high-energy cutting arcs. Welding screens are frequently positioned around plasma cutting stations to help contain visual hazards and improve workplace separation between cutting and non-cutting activities.

Stick (Arc) Welding

Stick welding remains common in maintenance departments, construction projects, and heavy industrial environments. Because stick welding can create substantial arc flash and visible radiation, screen selection should provide adequate protection for nearby employees while maintaining workplace visibility.

Common Welding Screen Tint Options

Amber Tint

Amber-colored screens are frequently selected when facilities want a balance between visibility and arc flash filtration. Benefits may include:
  • Improved visibility
  • Good general-purpose screening
  • Effective workspace separation
  • Enhanced visual awareness

Dark Green Tint

Dark green screens are often selected for more intensive welding environments where increased light filtration is desired. Benefits may include:
  • Higher optical filtration
  • Reduced arc glare
  • Enhanced bystander protection
  • Improved comfort in high-intensity welding areas

Orange-Tinted Screens

Orange welding screens remain a popular option throughout fabrication facilities. Benefits may include:
  • Good visibility
  • Effective UV filtration
  • Bright workspace appearance
  • Versatility across multiple welding processes

Portable vs. Permanent Welding Screen Systems

Facilities can choose between:

Portable Welding Screens

  • Easily repositioned
  • Supports changing layouts
  • Ideal for temporary work cells
  • Frequently used in fabrication shops

Welding Curtain Systems

  • Permanent installation
  • Large-area coverage
  • Suitable for dedicated welding departments
  • Supports long-term facility separation

Choosing the Best Tint for Your Facility

Factors to consider include:
  • Welding process
  • Arc intensity
  • Workstation layout
  • Employee proximity
  • Visibility requirements
  • Facility safety goals
  • Productivity considerations
The ideal solution often balances visibility, arc filtration, and workplace flexibility.

Frequently Asked Questions

Do welding screen colors matter?

Yes. Different colors provide different levels of optical filtration and visibility depending on the application.

Can one tint work for every welding process?

Many facilities successfully use general-purpose welding screens, but certain operations may benefit from process-specific screen materials.

Are welding screens required around welding operations?

Requirements vary depending on facility conditions and applicable safety standards. Welding screens are commonly used to help protect nearby personnel from welding-related hazards.

Conclusion

Selecting the correct welding screen tint helps facilities create safer and more productive welding environments. By matching the screen material and optical filtering characteristics to the welding process being performed, facilities can improve visibility, support employee safety, and reduce unnecessary exposure to arc flash and ultraviolet radiation.

In-Plant Offices on Mezzanines: How to Double Your Warehouse Footprint

Blog Images (7)

Why Warehouse Space Is More Valuable Than Ever

Warehouse managers constantly face the challenge of increasing productivity without expanding facility footprints. As inventory levels rise, equipment requirements change, and administrative functions grow, available floor space can quickly become limited. For many facilities, the most underutilized resource is not additional land or square footage. It is vertical space. One increasingly popular solution is combining modular office systems with industrial mezzanines to create elevated workspace without sacrificing valuable production or storage areas.

What Is an In-Plant Office?

An in-plant office is a modular building installed within an existing warehouse, manufacturing plant, distribution center, or industrial facility. These structures create dedicated work environments while remaining integrated into ongoing operations. Common uses include:
  • Management offices
  • Conference rooms
  • Quality control areas
  • Engineering offices
  • Training rooms
  • Break rooms
  • Process monitoring stations

What Is an Industrial Mezzanine?

An industrial mezzanine is an elevated structural platform installed within an existing building to create additional usable floor space. Rather than expanding outward, mezzanines take advantage of unused vertical clearance inside a facility. Mezzanines can support:
  • Storage systems
  • Equipment platforms
  • Material handling operations
  • Elevated offices
  • Workstations
  • Production support areas

Why Combine Offices and Mezzanines?

The analysis specifically identified mezzanine-mounted office configurations as an important search entity that competitors emphasize heavily. By positioning modular offices on mezzanine structures, facilities can preserve valuable floor space while adding functional office environments. This approach allows organizations to maximize both horizontal and vertical space utilization.

Benefits of Elevated Modular Offices

Preserve Floor Space

Operations continue below the office while administrative activities occur above.

Improve Facility Visibility

Managers and supervisors often gain improved visibility across warehouse and production operations.

Increase Functional Space

Facilities can create office environments without consuming warehouse storage capacity.

Support Future Expansion

Modular systems and mezzanines can often be modified as operational requirements evolve.

Accelerate Installation

Compared to traditional construction, modular office systems may offer faster implementation.

Typical Applications

In-plant mezzanine offices are commonly used for:

Manufacturing Facilities

Provide oversight of production operations while maintaining proximity to manufacturing activities.

Distribution Centers

Create management and supervisory spaces overlooking warehouse operations.

Quality Control Areas

Establish inspection and testing environments near active production lines.

Engineering Departments

Provide workspace for technical teams supporting manufacturing operations.

Warehouse Administration

Create office environments without sacrificing inventory storage capacity.

Structural Design Considerations

When evaluating mezzanine office projects, facilities should consider:
  • Building clear height
  • Load capacity requirements
  • Access stairs
  • Traffic flow
  • Fire protection requirements
  • Lighting considerations
  • HVAC requirements
  • Future expansion goals
Proper planning helps ensure the final design supports both operational and administrative needs.

Common Modular Building Materials

The analysis specifically recommends discussing system components and panel materials more directly. Common modular office configurations may include:
  • Vinyl-clad gypsum wall systems
  • Steel-faced panels
  • Fiberglass-reinforced plastic (FRP) panels
  • Expanded polystyrene (EPS) core insulation
  • Integrated window systems
  • Pre-engineered structural components
These modular components help support flexibility and scalability while maintaining professional workspace environments.

Frequently Asked Questions

Can modular offices be installed on mezzanines?

Yes. Many facilities install modular office systems on industrial mezzanines to maximize warehouse space utilization.

Do mezzanine offices save floor space?

Yes. Elevated office configurations allow facilities to continue using floor-level space for operations, storage, and material handling.

Are mezzanine offices permanent?

Most modular office systems are designed with flexibility in mind and can often be modified or expanded as requirements change.

What industries use mezzanine offices?

Manufacturing, warehousing, logistics, distribution, and industrial processing facilities commonly utilize mezzanine office systems.

Conclusion

Combining modular offices with industrial mezzanines allows facilities to take advantage of underutilized vertical space while preserving valuable floor-level operations. By creating elevated work environments above active warehouse and manufacturing areas, organizations can increase usable square footage, improve operational visibility, and delay or eliminate the need for costly facility expansions.

Edge of Dock Leveler Installation Requirements: Steel Faces, Dock Heights & Concrete Anchors

Blog Images (5)

Understanding Edge of Dock Leveler Installation Requirements

Edge of dock levelers are designed to provide a permanent bridge between the warehouse floor and trailer bed without requiring the excavation and pit construction associated with traditional pit-style dock levelers. Because these systems mount directly to the face of the loading dock, proper dock preparation is essential to ensure safe operation, long-term durability, and reliable performance.

Before purchasing or installing an edge of dock leveler, facility managers should evaluate dock height, dock face construction, mounting surfaces, bumper projection requirements, and anchoring methods to determine whether a facility is a suitable candidate for this type of loading dock equipment.

What Is an Edge of Dock Leveler?

An edge of dock leveler is a permanent loading dock device mounted directly to the concrete dock face to bridge the gap between trailers and the warehouse floor. Serving as an economical alternative to pit-style levelers, edge of dock levelers are available in mechanical and hydraulic configurations and are commonly used in facilities where trailer heights remain within a relatively narrow operating range.

Because edge of dock levelers do not require a pit, installation is generally faster and less disruptive than many traditional dock leveling systems.

Steel Dock Face Requirements

One of the most important installation considerations is the condition and construction of the loading dock face.

Most edge of dock levelers are designed to mount to a steel-reinforced dock face capable of supporting the operational forces generated during loading and unloading activities. The dock face must provide sufficient structural integrity to support both the leveler and the loads being transferred across it.

Facility managers should inspect the dock edge for:

  • Structural damage
  • Concrete deterioration
  • Cracking or spalling
  • Corroded steel components
  • Uneven mounting surfaces
  • Existing dock modifications

A properly prepared dock face helps ensure secure attachment and safe operation throughout the life of the equipment.

Dock Height Requirements

Edge of dock levelers perform best when trailer heights remain reasonably consistent.

Unlike pit-style dock levelers that accommodate a wider range of trailer positions, edge of dock levelers are typically intended for facilities operating within a limited working range above and below dock height. Facilities with highly variable trailer heights may require a different loading dock solution.

When evaluating dock height compatibility, facility managers should consider:

  • Current dock height
  • Typical trailer bed heights
  • Trailer suspension variations
  • Seasonal loading conditions
  • Facility traffic patterns
  • Forklift operating requirements

Understanding these factors helps determine whether an edge of dock leveler is the appropriate solution for the application.

Concrete Preparation Considerations

The quality of the existing concrete structure plays a major role in successful installation.

Before mounting an edge of dock leveler, installers should verify that the concrete surrounding the dock edge is capable of supporting the required anchor system and operational loads.

Areas that should be evaluated include:

  • Concrete thickness
  • Surface condition
  • Existing repairs
  • Cracks near anchor locations
  • Reinforcement conditions
  • Overall dock integrity

If significant deterioration exists, repairs may be required before installation can proceed.

Wedge Anchors and Mechanical Anchoring Systems

Many edge of dock leveler installations utilize anchor systems designed to secure the leveler frame to the dock structure.

Depending on the dock design and manufacturer requirements, installation methods may involve:

  • Wedge anchors
  • Mechanical anchors
  • Expansion anchors
  • Structural mounting hardware
  • Reinforcement brackets

Proper anchor selection is critical for maintaining long-term stability and ensuring the leveler remains securely attached during repeated loading cycles.

Because anchor requirements may vary by product model and dock configuration, installation should always follow manufacturer specifications.

Welding and Structural Attachment Considerations

Some installations may require welding or structural attachment methods depending on dock conditions and equipment specifications.

When welding is required, facility managers should ensure that mounting surfaces are properly prepared and that installation practices comply with applicable safety requirements and manufacturer recommendations.

Common considerations include:

  • Steel face preparation
  • Structural reinforcement requirements
  • Existing steel conditions
  • Corrosion protection
  • Attachment point locations
  • Long-term load distribution

Proper structural preparation helps maximize equipment performance while reducing maintenance concerns.

Dock Bumpers and Projection Requirements

Dock bumpers play an important role in protecting loading dock equipment and buildings from trailer impact.

Before selecting an edge of dock leveler, facilities should evaluate:

  • Existing bumper projection
  • Bumper condition
  • Trailer approach characteristics
  • Dock face clearance
  • Building protection requirements

Proper bumper projection helps ensure adequate clearance for both trailers and leveler operation.

Mechanical vs. Hydraulic Installation Considerations

While both mechanical and hydraulic edge of dock levelers mount directly to the dock face, installation requirements may differ.

Mechanical Edge of Dock Levelers

Mechanical models are commonly selected for facilities seeking a cost-effective loading dock solution with fewer powered components.

Benefits may include:

  • Simpler installation
  • Lower equipment costs
  • Reduced electrical requirements
  • Straightforward operation

Hydraulic Edge of Dock Levelers

Hydraulic models offer powered operation and may be preferred for facilities with higher loading frequencies.

Benefits may include:

  • Easier operation
  • Reduced manual effort
  • Improved productivity
  • Consistent deployment

The ideal choice depends on facility traffic volume, operational requirements, and loading dock workflows.

Common Installation Mistakes to Avoid

Successful installations begin with proper planning and dock evaluation.

Common issues include:

  • Selecting a leveler for an incompatible dock height
  • Ignoring dock face condition
  • Overlooking concrete damage
  • Improper anchor selection
  • Insufficient bumper projection
  • Failing to review manufacturer specifications
  • Choosing equipment based solely on initial cost

Addressing these factors early can help reduce maintenance issues and improve equipment longevity.

Frequently Asked Questions

Do edge of dock levelers require a pit?

No. Edge of dock levelers mount directly to the face of the loading dock and do not require a dock pit.

Can edge of dock levelers be installed on concrete docks?

Yes. However, the condition, strength, and configuration of the concrete structure should be evaluated before installation.

What is the ideal dock height for an edge of dock leveler?

The ideal dock height depends on the trailer heights regularly serviced at the facility. Edge of dock levelers are generally best suited for facilities where trailer heights remain relatively consistent.

Are edge of dock levelers welded or anchored?

Installation methods vary by manufacturer and facility conditions. Some systems utilize anchors, while others may involve structural attachment methods depending on project requirements.

Why are dock bumpers important?

Dock bumpers help protect both the loading dock structure and dock equipment from trailer impact while helping maintain proper operating clearances.

Conclusion

Proper installation is one of the most important factors influencing the performance, safety, and lifespan of an edge of dock leveler. By evaluating dock face construction, dock height compatibility, concrete condition, anchoring requirements, bumper projection, and equipment type before installation, facilities can select a solution that provides reliable loading dock performance for years to come.

Edge of Dock Leveler Installation Requirements: Steel Faces, Dock Heights & Concrete Anchors

Reviewed by Chris Clevenger, Director of Service at Barron Equipment
Blog Images (12)

What Is Required to Install an Edge of Dock Leveler?

An edge of dock leveler is mounted directly to the face of the loading dock rather than inside a recessed pit. Because the unit transfers significant loading forces into the dock structure, the dock must provide adequate support for the leveler and the loads crossing it.

Most installations require:

  • A structurally sound loading dock
  • Proper dock face preparation
  • Steel mounting surfaces or structural reinforcement
  • Suitable dock height conditions
  • Proper bumper placement
  • Appropriate anchoring or welding methods
  • Adequate clearance for operation and maintenance

A site inspection is often the best way to determine installation readiness.

Installation FactorWhy It MattersWhat to Verify
Steel Dock FaceProvides a stable mounting surface and supports operational loads.Existing structural steel is present or can be added.
Channel IronReinforces the dock face and improves load distribution.Steel reinforcement is properly sized and positioned.
Concrete ConditionSupports the leveler and transferred forklift loads.No severe cracking, spalling, or structural damage.
Dock HeightAffects leveler working range and trailer compatibility.Trailer heights fall within the manufacturer’s operating range.
Wedge AnchorsSecure the leveler to the dock structure.Concrete is suitable for anchor installation.
Welded ConnectionsCreates a permanent attachment to structural steel.Steel components are available for welding.
Dock Bumper ProjectionMaintains proper trailer spacing and leveler operation.Bumpers provide adequate projection and clearance.
Trailer Traffic VolumeHelps determine whether an edge of dock leveler is the right solution.Traffic levels match the intended use of the equipment.
Forklift & Load WeightDetermines required capacity rating.Combined forklift and load weight are known.
Retrofit CompatibilityIdentifies whether modifications are needed.Existing dock structure can support installation.
Common EquipmentForklifts and palletized loadsForklifts, heavy loads, frequent cycles
Facility FitExisting docks without pitsNew construction or docks with pits

Understanding Steel Dock Face Requirements

One of the most important installation considerations is the condition of the dock face.

Because edge of dock levelers are mounted directly to the front of the dock, the mounting area must be capable of handling repeated forklift and load impacts transferred through the leveler.

Many installations utilize structural steel welded to the dock face to create a secure mounting surface.

Why a Steel Dock Face Matters

A steel dock face helps:

  • Distribute loading forces
  • Improve long-term durability
  • Support welding requirements
  • Reduce mounting movement
  • Minimize structural stress on concrete edges

Without adequate structural support, the dock face may not be suitable for edge of dock leveler installation.

What Is Channel Iron and Why Is It Used?

Channel iron is a common structural steel component used during loading dock construction and retrofits.

For edge of dock leveler installations, channel iron may be installed along the dock face to provide a durable mounting surface capable of supporting operational loads.

Benefits of channel iron include:

  • Improved structural reinforcement
  • Better load distribution
  • Increased mounting stability
  • Reliable welding surfaces
  • Long-term durability

Channel iron is particularly important when retrofitting older loading docks that may not have been designed for modern loading dock equipment.

Concrete Dock Preparation

Concrete condition plays a major role in successful installation.

Even when steel reinforcement is used, the underlying concrete must be capable of supporting the equipment and operational loads.

Before installation, technicians often inspect for:

  • Cracking
  • Spalling
  • Surface deterioration
  • Uneven dock faces
  • Previous repairs
  • Structural damage

Any deficiencies should be addressed before mounting a new edge of dock leveler.

Wedge Anchors vs. Welding

Depending on the dock design and manufacturer recommendations, edge of dock levelers may be installed using welded connections, concrete anchors, or a combination of both.

Wedge Anchors

Wedge anchors are mechanical fasteners installed into concrete.

Advantages include:

  • Strong hold in sound concrete
  • Reduced installation time
  • Compatibility with retrofit projects
  • Secure attachment to reinforced dock structures

Welded Installations

Some edge of dock leveler designs utilize welding to structural steel components integrated into the dock face.

Advantages include:

  • Permanent attachment
  • Excellent structural strength
  • Consistent alignment
  • Long-term durability

The appropriate installation method should always follow manufacturer specifications and site conditions.

Dock Height Requirements

Dock height plays an important role in determining whether an edge of dock leveler is the right solution.

Unlike pit-style levelers, edge of dock levelers operate within a more limited working range.

Facilities should evaluate:

  • Typical trailer heights
  • Trailer suspension types
  • Loading conditions
  • Seasonal variations in trailer height
  • Existing dock elevation

When trailer heights vary significantly, a pit-style dock leveler may provide greater operational flexibility.

Understanding Working Range

Every edge of dock leveler operates within a specified working range.

Working range refers to the distance above and below dock level where the leveler can safely bridge the trailer.

Facilities with relatively consistent trailer heights are often ideal candidates for edge of dock levelers.

Facilities experiencing substantial trailer height variation should verify operating ranges with manufacturer specifications before purchasing equipment.

Dock Bumper Projection Requirements

Dock bumpers protect both the dock structure and trailers during loading operations.

However, bumper projection can also impact edge of dock leveler performance.

Why Bumper Projection Matters

Improper bumper placement may:

  • Interfere with leveler operation
  • Affect trailer contact points
  • Reduce usable working range
  • Create clearance issues

Proper bumper projection helps ensure the trailer maintains appropriate positioning during loading and unloading operations.

Can an Existing Dock Support an Edge of Dock Leveler?

Many existing loading docks can be retrofitted with edge of dock levelers, but not every facility is automatically a candidate.

Factors that influence retrofit suitability include:

  • Dock condition
  • Concrete integrity
  • Steel reinforcement availability
  • Trailer traffic volume
  • Existing bumper configuration
  • Dock elevation
  • Equipment capacity requirements

A professional site evaluation can identify any structural modifications needed before installation.

Edge of Dock Leveler Installation Checklist

Before selecting an edge of dock leveler, verify:

✅ Concrete dock is structurally sound

✅ Dock face can support mounting loads

✅ Structural steel or channel iron is present or can be added

✅ Trailer heights are relatively consistent

✅ Bumper projection is adequate

✅ Installation method has been determined

✅ Capacity requirements have been verified

✅ Loading patterns have been reviewed

✅ Clearance requirements have been confirmed

✅ Manufacturer installation guidelines have been reviewed

About the Reviewer

Chris Clevenger is the Director of Service at Barron Equipment Company and brings more than 30 years of experience in the material handling, loading dock, and industrial equipment industries. Throughout his career, Chris has helped businesses improve safety, efficiency, and equipment reliability through practical service solutions and industry expertise. His extensive hands-on knowledge ensures the information in this article is accurate, relevant, and valuable for facility managers, maintenance teams, and operations professionals.

Calculating ROI: How Insulated Curtain Walls Reduce Energy Costs in Cold Storage

Blog Images (4)

Why Energy Costs Matter in Cold Storage Facilities

Energy consumption is one of the largest ongoing operating expenses for cold storage facilities, food processing plants, distribution centers, and temperature-controlled warehouses. Every time conditioned air escapes from a refrigerated area or outside air enters a controlled environment, refrigeration and HVAC systems must work harder to maintain the desired temperature.

As facilities expand, operational requirements change, and seasonal weather conditions fluctuate, maintaining temperature consistency becomes increasingly difficult. Many organizations focus on upgrading refrigeration equipment or HVAC systems to improve efficiency, but often overlook one of the most cost-effective opportunities available: creating better temperature separation within the facility.

Insulated curtain walls provide a flexible way to establish thermal zones, reduce air transfer between work areas, and improve temperature management without the expense and disruption associated with permanent construction. The result is often lower energy consumption, improved operational efficiency, and greater flexibility as facility requirements evolve.

What Are Insulated Curtain Walls?

Insulated curtain walls are modular, flexible partition systems designed to separate indoor environments with different temperature requirements. Unlike traditional walls, insulated curtain systems can be configured, expanded, relocated, or adjusted as operational needs change.

These systems use insulated materials that help reduce heat transfer between spaces while still allowing facilities to maintain workflow flexibility. Depending on the application, insulated curtain walls can be used to:

  • Separate refrigerated and ambient areas
  • Create temperature-controlled work zones
  • Isolate seasonal storage locations
  • Divide warehouse operations
  • Improve environmental control
  • Reduce conditioned air loss
  • Increase overall energy efficiency

Many facilities choose insulated curtain systems because they provide thermal separation without requiring major construction projects or permanent modifications.

Understanding Thermal Zones

A thermal zone is an area maintained at a specific temperature range to meet operational requirements.

For example, a facility may have:

  • Refrigerated storage areas
  • Frozen product zones
  • Production environments
  • Shipping and receiving departments
  • Employee workstations
  • General warehouse storage

Without proper separation, warmer and cooler air naturally mix together. This forces refrigeration and HVAC systems to compensate for temperature fluctuations throughout the building.

Insulated curtain walls help create distinct thermal zones, allowing equipment to maintain temperature conditions more efficiently while helping facilities reduce unnecessary energy consumption.

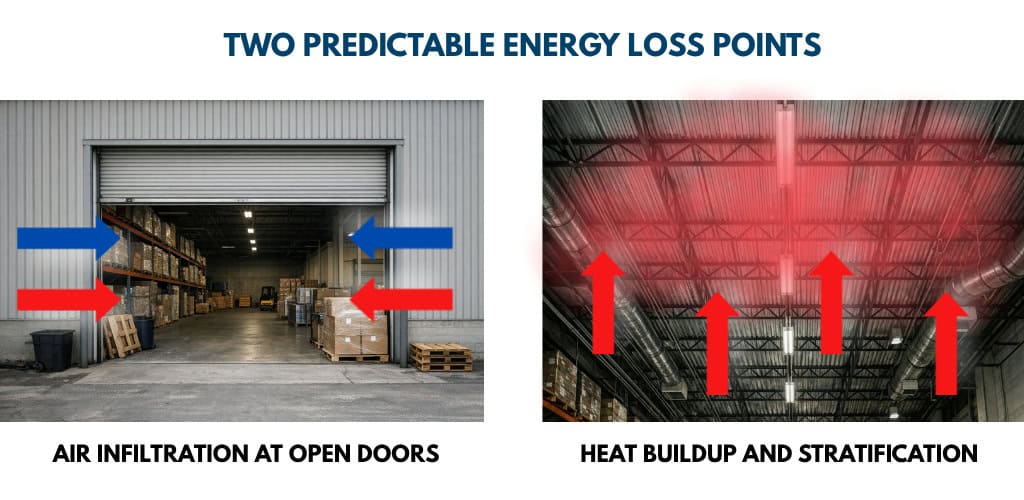

How Energy Loss Occurs in Industrial Facilities

Many facilities experience energy loss through uncontrolled airflow between areas operating at different temperatures.

Common sources include:

Open Warehouse Spaces

Large open environments make it difficult to contain heated or cooled air within designated work zones.

Frequently Accessed Work Areas

Shipping docks, production areas, and processing zones often experience significant temperature fluctuations due to frequent traffic.

Seasonal Temperature Changes

Facilities located in regions with extreme seasonal conditions may experience increased energy demands as outdoor temperatures rise or fall.

Constant Air Exchange

When conditioned and unconditioned spaces are not properly separated, HVAC and refrigeration systems must continuously compensate for air movement throughout the facility.

The more air exchange that occurs, the harder temperature control systems must work to maintain desired conditions.

How Insulated Curtain Walls Improve Energy Efficiency

Insulated curtain walls help reduce energy loss by minimizing unnecessary air movement between spaces.

Reduced Air Transfer

Insulated curtain systems help create barriers between conditioned and unconditioned areas, reducing temperature transfer and limiting airflow between zones.

Better Temperature Consistency

Thermal separation allows refrigeration and HVAC systems to maintain more consistent temperatures with less effort.

Lower HVAC Workload

When conditioned air remains contained within a designated area, heating and cooling equipment does not need to cycle as frequently to compensate for temperature fluctuations.

Improved Facility Flexibility

Unlike permanent construction, insulated curtain walls can be moved, expanded, or reconfigured as operational needs change.

Faster Implementation

Facilities can often establish thermal zones much faster than they could through traditional remodeling or new wall construction.

The Financial Benefits of Thermal Separation

Every facility will experience different financial results based on building size, operational schedules, climate conditions, and energy costs. However, insulated curtain walls can generate value through several measurable areas.

Reduced Utility Costs

Improved temperature containment can help reduce refrigeration and HVAC energy consumption by minimizing unnecessary thermal exchange between spaces.

Lower Construction Costs

Compared to permanent walls, insulated curtain systems often require less material, labor, and facility disruption.

Improved Operational Efficiency

By creating dedicated work zones, facilities may improve organization, workflow management, and employee productivity.

Reduced Facility Downtime

Installing flexible curtain systems generally requires less interruption to daily operations than large-scale construction projects.

Long-Term Adaptability

As business requirements evolve, insulated curtain walls can be modified or relocated more easily than permanent structures.

Cold Storage Applications That Benefit Most

Insulated curtain walls are particularly valuable in environments where temperature control directly impacts product quality, regulatory compliance, or operating costs.

Examples include:

Cold Storage Warehouses

Maintain separation between refrigerated storage and ambient warehouse space.

Food Processing Facilities

Create distinct production zones while supporting temperature-control objectives.

Distribution Centers

Limit air movement between loading areas and conditioned storage environments.

Seasonal Storage Operations

Adjust thermal zones throughout the year as operational demands change.

Manufacturing Facilities

Separate production areas with unique temperature requirements.

Evaluating ROI Before Investing

When calculating the potential return on investment for insulated curtain walls, facility managers should evaluate:

  • Current energy consumption
  • Facility layout
  • Temperature requirements
  • Existing air transfer challenges
  • Construction alternatives
  • Installation costs
  • Maintenance considerations
  • Future expansion plans

A thorough evaluation helps determine where thermal separation can deliver the greatest operational and financial value.

Insulated Curtain Walls vs. Permanent Construction

Both solutions can provide temperature separation, but they serve different operational needs.

Permanent Walls

  • Fixed layout
  • Higher construction costs
  • Longer installation timelines
  • Less flexibility
  • Potential permitting requirements

Insulated Curtain Walls

  • Reconfigurable layouts
  • Faster installation
  • Lower project costs
  • Flexible thermal zoning
  • Easy expansion or relocation

For many facilities, flexibility and adaptability are significant advantages when planning for future growth.

Frequently Asked Questions

What is an insulated curtain wall?

An insulated curtain wall is a flexible partition system designed to separate spaces with different temperature requirements while reducing heat transfer and improving energy efficiency.

Can insulated curtain walls help reduce energy costs?

Insulated curtain walls can help reduce energy consumption by limiting air transfer between conditioned and unconditioned spaces, allowing HVAC and refrigeration equipment to operate more efficiently.

Where are insulated curtain walls commonly used?

Common applications include cold storage facilities, food processing plants, distribution centers, manufacturing facilities, and temperature-controlled warehouse environments.

Are insulated curtain walls permanent?

No. One of the primary benefits of insulated curtain systems is their ability to be relocated, expanded, or reconfigured as operational needs change.

How do insulated curtain walls support thermal zoning?

They create separate temperature-controlled areas within a facility, reducing unwanted airflow between zones and helping maintain more consistent environmental conditions.

Conclusion

For facilities focused on improving energy efficiency, reducing operating costs, and maintaining better temperature control, insulated curtain walls provide a practical alternative to permanent construction. By creating effective thermal zones and reducing air transfer between spaces, these systems can help refrigeration and HVAC equipment operate more efficiently while offering the flexibility needed in modern industrial environments.

As facilities continue looking for ways to improve operational performance and manage long-term energy costs, insulated curtain walls remain one of the most versatile solutions for temperature separation, cold storage management, and facility optimization.

Upload PO

5% Off All Stronghold Cabinets
