90 Degrees of Powered Tilting: Simple, Safe, and Reliable

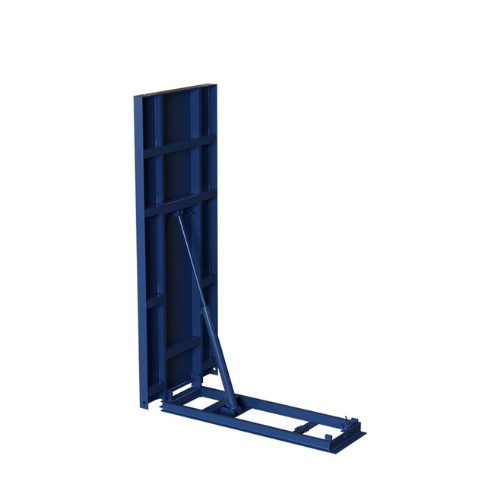

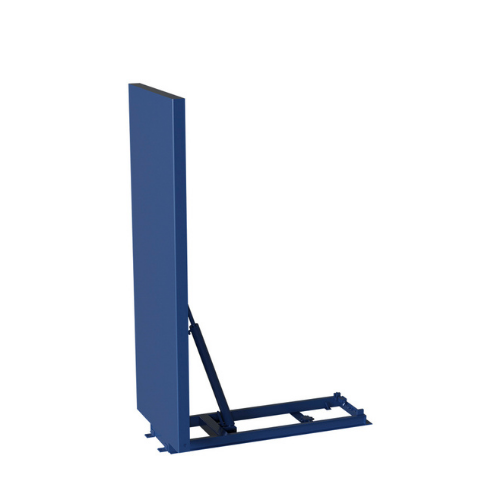

Autoquip’s 90-Degree Hydraulic Tilters utilize double-acting hydraulic cylinders to both rotate and return a load or container through a 90-degree travel at a controlled rate of speed. The hydraulic power unit is located inside the tilter base frame or can be remotely located.
Features & Benefits
Durability and Quality
- Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
- Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.
- Steel support in upper and lower frames provide additional structural rigidity and resistance to twisting and bending of the tilter under load.
- Chrome-plated rods improve durability and extend the life of the cylinders and seals.
Maintenance and Warranty
- Autoquip offers an industry-best 2-year warranty on all parts as a promise that you’ve purchased the industry’s most reliable tilter.
- Maintenance-free bearings at pivot points require no lubrication.
- On-board maintenance devices enable maintenance crews to safely and effectively block open the tilter during inspection and routine maintenance.
- Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
- Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
Simplicity
- Tilters keep work within the ergonomic “power zone” and reduce fatigue and back injury by minimizing reaching and bending while loading and unloading bins and baskets.
- Standard controls are prewired and the drive unit is already onboard. Installation only requires the tilter to be lagged to the ground and connected to electricity.
- Exceptionally low lowered height allows for greater on/off load flexibility.
- Low collapsed height increases its total ergonomic range.
Safety
- Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
- Minimum 3:1 structural factor of safety makes these lifts the most structurally sound in the industry.
- Compliance with recognized standards:
- ANSI MH29.1 – Safety Requirements for Industrial Scissor Lifts
- NFPA 70 – National Electric Code
- ASTM – A36 – Structural Steel Standard
- ANSI Z535 – Safety Labeling Requirements
- AWS D.1 – Welding Standards
- Applicable portions of OSHA 29CFR1910 – General Workplace Safety
