Overview

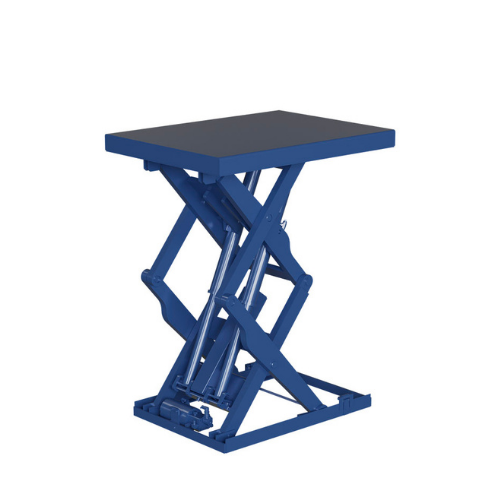

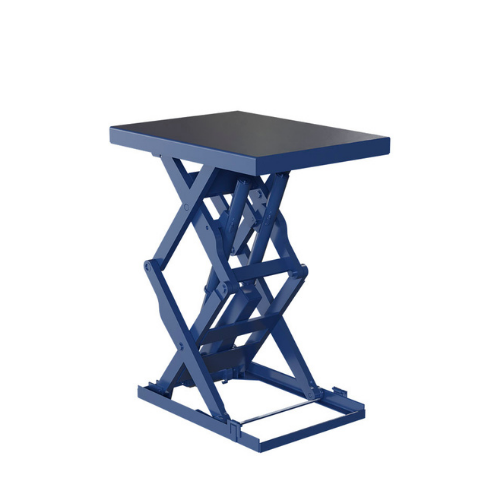

The Autoquip Q Lift is a double pantograph scissor lift engineered for applications that need high vertical travel without a large equipment footprint. By stacking two scissor mechanisms, the Q Lift achieves travel ranges from 49 to 74 inches while maintaining an exceptionally low collapsed height—as low as 7 inches on select models. This makes it one of the most space‑efficient high‑travel scissor lift tables available for industrial material handling and work positioning tasks.
Despite its compact frame, the Q Lift supports load capacities up to 5,000 lbs, making it a strong fit for conveyor feeding, elevated assembly stations, and any workstation where operators need to raise materials or tools to high work positions. The hydraulic power unit comes prewired and mounted onboard, so installation is straightforward. Lag the unit to the floor, connect to electricity, and the lift is ready to operate.
Features and Benefits
The double scissor lift table design gives the Q Lift its defining advantage: significantly more vertical travel than a standard single‑scissor lift in a comparable platform size. The low collapsed height allows operators to load and unload materials close to floor level, while the extended raised height reaches conveyor infeed points, elevated fixtures, and high work zones that single‑scissor models cannot access without a pit or ramp.
Durability is built into every joint and pivot point. Chrome‑plated, 100,000 psi ultimate‑strength pins at every connection deliver premium load strength and long service life at the most critical wear points in the scissor mechanism. A minimum 1/4‑inch‑thick steel‑reinforced platform minimizes deck deflection and maximizes load stability across the full travel range. Solid steel legs and added stiffeners provide straight, repeatable roller tracking as the lift raises and lowers under heavy or uneven loads.
Maintenance‑free bearings at every pivot point eliminate the need for routine lubrication and provide rugged resistance to abrasion and impact. High‑strength steel rollers are designed for easy replacement to minimize downtime when service is eventually needed. On‑board maintenance devices let crews safely block open the scissors during inspection, and a semi‑transparent polyurethane oil reservoir provides clear fluid level visibility without introducing rust contamination. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks throughout the hydraulic circuit.
Safety and Compliance
Every Q Lift includes hydraulic velocity fuses that completely stop the lift in the unlikely event of uncontrolled descent from a sudden hose rupture. A minimum 3:1 structural factor of safety makes these double pantograph scissor lifts among the most structurally sound in the industry. Each unit is designed and manufactured to comply with ANSI MH29.1 safety requirements for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The Q Lift serves applications where standard scissor lift tables fall short on travel range. Common uses include raising materials and tools to high work positions at elevated assembly stations, feeding conveyors or automated equipment at heights that single‑scissor lifts cannot reach, parts assembly and disassembly tasks that require a wide ergonomic range from near‑floor to standing height or above, and work positioning applications in production cells where floor space is limited but vertical reach is critical. The double pantograph design is also well suited for integration into automated lines where the lift must cycle between a low loading position and a high discharge or processing height.
Selection Assistance
Choosing the right double scissor lift table depends on your required travel range, load capacity, collapsed height, and platform dimensions. The Q Lift is available in a wide range of standard configurations, and Autoquip offers extensive customization options including specialized controls, platform shapes, mobility packages, turntable integration, tilt functionality, and automation‑ready designs. Barron Equipment can help you evaluate the full lineup of Autoquip scissor lift tables—from compact single‑scissor models to high‑travel double pantograph configurations—and recommend the best solution for your workspace and material handling requirements. Contact our team to discuss your application and request a quote.
