Overview

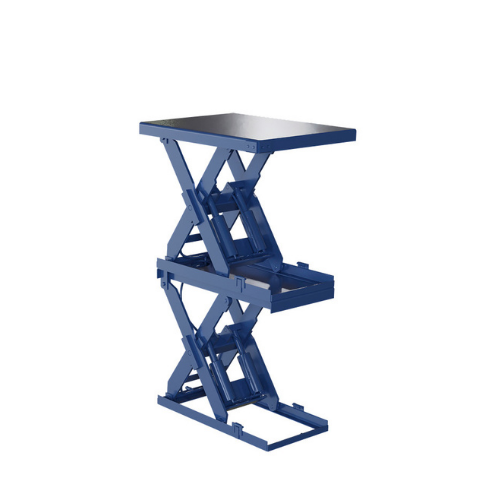

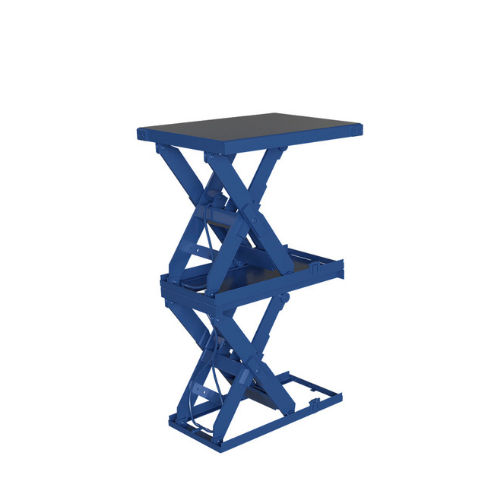

The Autoquip Series 35 Double High is an industrial scissor lift table built for applications that demand extended vertical travel and heavy duty load capacity in a compact footprint. Two individual scissor table assemblies are stacked and welded together to create a double high configuration that reaches heights standard single‑scissor lifts cannot match. Standard models offer travel ranges from 48 to 120 inches with load capacities from 2,000 to over 10,000 lbs, making this one of the most versatile high‑travel scissor lift tables in the Autoquip lineup.
The Series 35 platform is Autoquip’s most widely used scissor lift family, and the Double High variant extends its capabilities into multi‑landing access, mezzanine loading, and elevated production tasks where vertical reach is critical. The hydraulic power unit comes prewired and mounted onboard, so installation is straightforward—lag the unit to the floor and connect to electricity. More standard models and options are available than any competing lift table, allowing easy customization to match virtually any application.
Features and Benefits
The double high design delivers its defining advantage: significantly greater vertical travel than single‑scissor models while keeping the platform size and floor footprint compact. Smaller lift footprints allow workers to stand closer to the product, which improves ergonomics and reduces reaching. The double set of scissor legs also provides added load stability compared to single‑leg configurations, keeping materials secure across the full travel range.
Single‑piece, steel‑reinforced legs paired with a 1/4‑ to 3/8‑inch‑thick steel platform make for extremely solid construction. Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength and long service life at the most critical wear points. Solid steel legs and added stiffeners provide optimal overall stability and straight, repeatable roller tracking as the lift raises and lowers under heavy or off‑center loads.
On‑board maintenance devices let crews safely block open the scissors during inspection and routine service. A semi‑transparent polyurethane oil reservoir provides clear fluid level visibility without introducing rust contamination. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks, and high‑strength steel rollers are designed for easy replacement to minimize downtime. Autoquip backs every Series 35 Double High with an industry‑best 2‑year warranty on all parts.
Safety and Compliance
The double set of scissor legs provides inherent load stability that enhances worker safety during high‑travel lifting operations. Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent from a sudden hose rupture. A minimum 3:1 structural factor of safety makes these lifts among the most structurally sound industrial scissor lift tables available. Each unit is designed and manufactured to comply with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The Series 35 Double High serves a wide range of heavy duty industrial applications where extended vertical travel and high load capacity are required. Common uses include pallet stacking operations that need to reach upper rack levels or elevated storage, mezzanine access where the lift serves as a material transfer point between floor levels, parts assembly and disassembly at elevated work positions, work positioning stations that require a wide ergonomic range across the full shift, and conveyor or machine feeding at heights that single‑scissor lifts cannot reach. The functionality of the Double High also supports improved worker productivity, higher factory throughput, and access to multiple landings within a single lift cycle.
Selection Assistance
Choosing the right double high scissor lift table depends on your required travel range, load capacity, platform dimensions, and the number of landing positions your process requires. For applications with moderate travel needs up to 60 inches, the standard Autoquip Series 35 single‑scissor model may be sufficient. For applications requiring a low‑profile double‑scissor design with travel up to 74 inches, the Autoquip Q Lift is another option to consider. The Series 35 Double High is the best choice when your operation needs the longest travel range, highest capacity, or multi‑landing access. Autoquip offers extensive customization for all models, and Barron Equipment can help you evaluate the full range and recommend the right configuration for your facility. Contact our team to discuss your application and request a quote.
