Overview

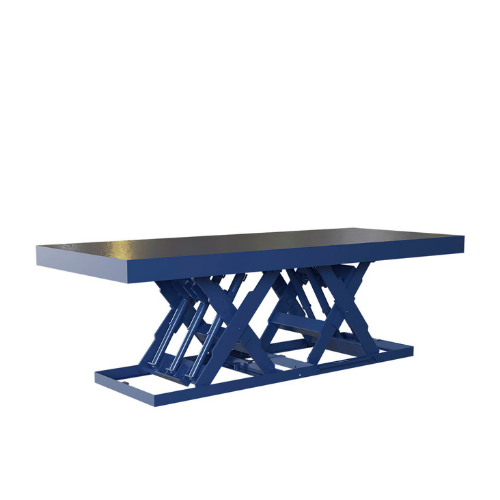

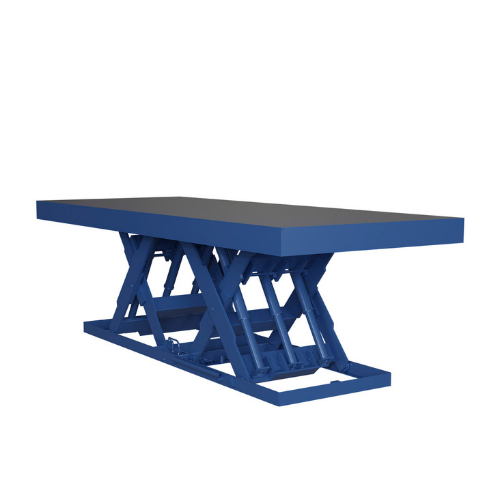

The Autoquip Super Titan Double Long is the highest‑capacity scissor lift table in Autoquip’s product lineup. Two heavy duty Super Titan scissor mechanisms are fused end to end, generating nearly twice the lifting power and platform size of the single Super Titan. With capacities ranging from 17,000 to 85,000 lbs and travel from 12 to 120 inches, the Super Titan Double Long handles loads that are far beyond the reach of any standard industrial scissor lift table.
Platform lengths extend up to 264 inches on the largest models, and the double long configuration supports oversized loads that must be transferred from the ends or sides of the platform. Lifetime lubricated bearings and direct‑thrust lifting cylinders provide long‑lasting performance with minimal maintenance. Every model is engineered for minimal platform deflection, keeping massive loads stable and level throughout the lifting stroke.
Features and Benefits
The Super Titan Double Long is built for extreme loads. Direct‑thrust hydraulic cylinders deliver smooth, controlled lifting even at capacities exceeding 40 tons. Lubricated‑for‑life bearings eliminate routine greasing at all pivot points. The double long end‑to‑end configuration creates an extended platform that can accommodate the longest oversized loads—steel coils, paper rolls, dies, and large structural assemblies—while maintaining the structural integrity needed for safe lifting and positioning.
Minimal platform deflection is a critical feature at these capacity levels. The heavy gauge steel platform and reinforced base frame keep the deck flat under massive loads, which is essential when rolling heavy coils or sliding dies across the platform surface. All models use multiple hydraulic cylinders (4 or 6 depending on capacity) powered by a 5 HP motor for consistent cycle speeds across the full capacity range.
Standard construction meets the same safety and compliance standards as all Autoquip lifts. Chrome‑plated pins at all joints deliver long life under extreme loading. Semi‑transparent polyurethane oil reservoirs provide visible fluid monitoring. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks. Autoquip backs the Super Titan Double Long with a 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent. A minimum 3:1 structural factor of safety ensures reliable performance at extreme capacities. Each unit complies with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The Super Titan Double Long serves the most demanding heavy‑capacity lifting applications in industrial manufacturing and processing. Common uses include lifting and positioning heavy steel coils for feeding uncoilers, slitting lines, or press brakes, moving sheet metal stampings, dies, and tooling that exceed the capacity of standard scissor lift tables, handling paper rolls and other high‑weight cylindrical loads in converting and packaging operations, heavy work positioning for large structural assemblies, castings, or fabricated components, and any application where the combination of extreme weight and oversized load dimensions requires a double long platform with capacities measured in tens of thousands of pounds.
Selection Assistance
Choosing the right high capacity scissor lift depends on your load weight, load dimensions, travel range, and whether a single or double long platform is required. For capacities up to 52,000 lbs with standard platform lengths, the single Super Titan provides a more compact solution. When the load exceeds single‑platform length limits or needs the doubled capacity of the tandem configuration, the Super Titan Double Long is the right choice. For applications below 24,000 lbs, the Series 35 Double Long may offer a more cost‑effective option. Barron Equipment can help you evaluate the full Autoquip heavy capacity lineup and recommend the right solution. Contact our team to discuss your application and request a quote.
