Overview

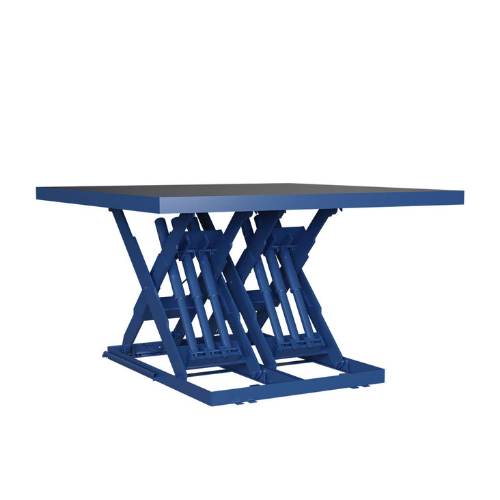

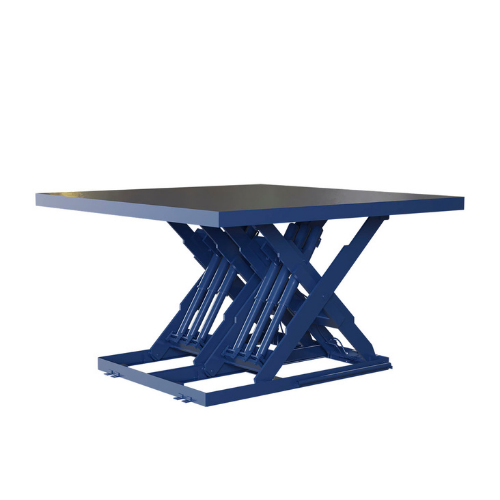

The Autoquip Super Titan Double Wide is the widest heavy capacity scissor lift table Autoquip manufactures. Two Super Titan scissor mechanisms are mounted side by side, nearly doubling both the lifting capacity and the platform width of a single Super Titan. With capacities ranging from 8,000 to 85,000 lbs, travel from 12 to 120 inches, and platform widths reaching up to 144 inches, the Super Titan Double Wide handles oversize loads that are both wider and heavier than any single‑mechanism lift can support.
Over 90 standard models are available across multiple travel ranges. Lifetime lubricated bearings and direct‑thrust lifting cylinders deliver long‑lasting performance with minimal maintenance. Every model is engineered for minimal platform deflection—a critical requirement when lifting massive, unevenly distributed loads that must remain flat and stable throughout the lifting stroke.
Features and Benefits
The side‑by‑side tandem configuration is the Super Titan Double Wide’s defining characteristic. By placing two complete Super Titan scissor mechanisms next to each other, the lift provides a dramatically wider platform than any single‑mechanism scissor lift table can achieve. This expanded width supports oversize loads, wide fabrications, multiple pallets positioned side by side, and large flat materials that would overhang the edges of a standard‑width platform.
Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength and long service life. Thick steel‑reinforced platforms minimize deck deflection and maximize load stability under extreme weight. Solid steel legs with added stiffeners provide optimal overall stability and straight, repeatable roller tracking. An efficient, highly serviceable hydraulic power unit with 5 HP motor drives all models. Maintenance‑free bearings at all pivot points require no lubrication, and high‑strength steel rollers are easily replaced to minimize downtime.
Standard controls come prewired with the internal power unit onboard. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks. On‑board maintenance devices enable safe blocking during inspection. Autoquip backs the Super Titan Double Wide with a 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent from a sudden hose rupture. A minimum 3:1 structural factor of safety ensures reliable performance at extreme capacities. Each unit complies with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The Super Titan Double Wide serves applications where both extreme capacity and extra‑wide platform dimensions are required. Common uses include lifting oversize steel fabrications, weldments, and structural assemblies that exceed single‑platform width limits, handling wide sheet metal stampings and dies that must sit flat across the full deck surface, positioning large industrial molds and tooling for press or injection molding operations, supporting multiple pallets or coils placed side by side on a single wide platform, and any heavy capacity application where the load’s width exceeds what the single Super Titan or Double Long can accommodate.
Selection Assistance
Choosing between the Super Titan Double Wide and Double Long depends on your load’s width versus length. The Double Wide provides maximum platform width for loads that are wider than they are long. The Double Long provides maximum platform length for elongated loads. For applications that do not need the tandem configuration, the single Super Titan offers capacities up to 52,000 lbs in a standard‑width platform. Barron Equipment can help you evaluate the full Super Titan family and recommend the right configuration. Contact our team to discuss your application and request a quote.
