Overview

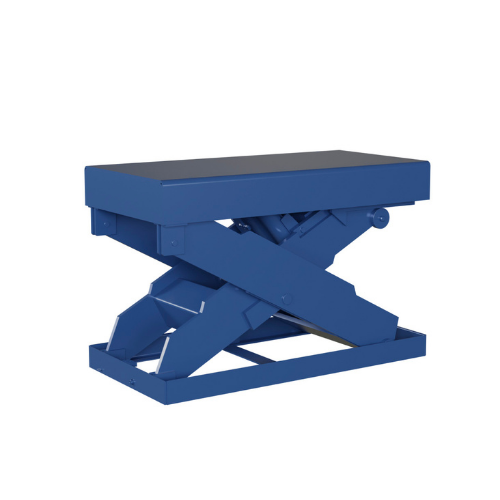

The Autoquip Super Titan is the flagship of Autoquip’s heavy capacity lifting solutions and the heaviest single‑scissor hydraulic lift table on the market. Engineered to safely and efficiently control massive loads while maintaining minimal platform deflection, the Super Titan fills the gap between standard industrial scissor lift tables and the full tandem configurations needed for the largest loads in heavy manufacturing.
Over 100 standard models cover travel ranges from 12 to 120 inches with single‑scissor capacities from 5,000 to 52,000 lbs. Platform widths extend up to 72 inches and platform lengths up to 144 inches. Lifetime lubricated bearings and direct‑thrust lifting cylinders deliver long‑lasting performance with minimal maintenance. For loads that exceed the single platform’s width or length limits, the Super Titan Double Wide and Double Long tandem configurations are available—extending capacities to 85,000 lbs.
Features and Benefits
The Super Titan’s defining advantage is its ability to deliver extreme capacity from a single scissor mechanism. Where the Series 35 family tops out at 15,000 lbs and the TorkLift at 10,000 lbs, the Super Titan starts where those platforms end and scales to over 50,000 lbs in a single‑scissor configuration. This makes it the go‑to solution for heavy industrial loads that do not require a tandem setup.

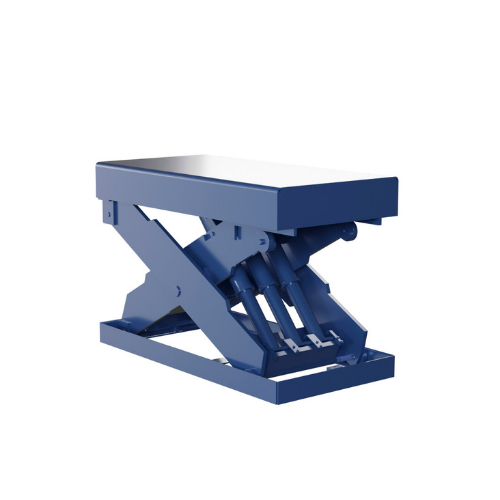

Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength and long life at the most critical wear points. Thick steel‑reinforced platforms minimize deck deflection—essential when positioning heavy dies, coils, or castings that must remain flat and level. Solid steel legs with added stiffeners provide optimal overall stability and straight, repeatable roller tracking under extreme loads. All models use a 5 HP motor and multiple hydraulic cylinders for consistent lift performance.
Maintenance‑free bearings at all pivot points require no lubrication. High‑strength steel rollers are easily replaced to minimize downtime. Standard controls come prewired with the internal power unit onboard for straightforward installation. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks. On‑board maintenance devices allow safe blocking during inspection. Autoquip backs the Super Titan with a 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent from a sudden hose rupture. A minimum 3:1 structural factor of safety ensures reliable performance at extreme capacities. Each unit complies with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The Super Titan serves heavy capacity lifting applications across steel processing, metalworking, automotive, aerospace, and general heavy manufacturing. Common uses include lifting and positioning heavy steel coils, paper rolls, and large cylindrical loads for feeding production lines, die change and tooling positioning where massive dies and molds must be raised to press height, heavy work positioning for large castings, forgings, or fabricated assemblies, loading and unloading oversized heavy goods from trucks or rail cars, and any in‑plant material handling task where loads exceed the capacity of standard industrial scissor lift tables.
Selection Assistance
The single Super Titan is the right choice for heavy capacity applications up to 52,000 lbs that fit within standard single‑platform dimensions. For loads that are wider than the single platform can accommodate, the Super Titan Double Wide places two mechanisms side by side. For elongated loads, the Double Long places them end to end. Both tandem configurations extend capacity to 85,000 lbs. For applications below 15,000 lbs, the Series 35 family offers a more cost‑effective solution with more configuration options. For applications demanding premium cycle life at moderate capacities, the TorkLift line may be the better fit. Barron Equipment can help you evaluate the full Autoquip heavy capacity lineup and recommend the right solution. Contact our team to discuss your application and request a quote.
