Overview

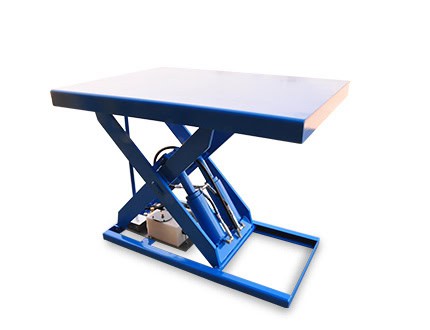

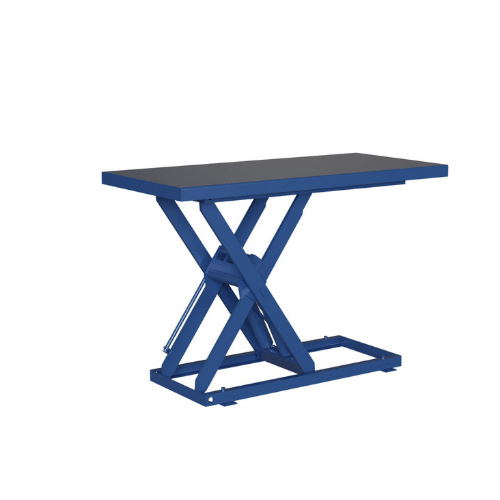

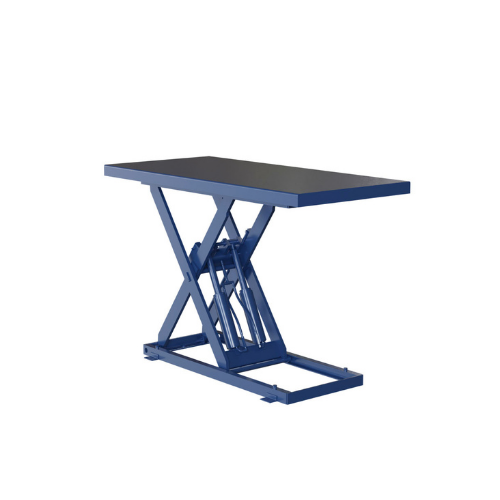

The Autoquip TorkLift is the premium heavy duty single pantograph scissor lift table in Autoquip’s lineup. Originally developed by American Lifts and manufactured in the USA for over 30 years, the TorkLift delivers five times the life cycles of competitive heavy duty scissor lift tables. Every TorkLift comes standard with captured rollers, two‑piece self‑aligning cylinders, and high‑impact spiral wound bearings—features that are optional or unavailable on other lift table brands.
The single pantograph TorkLift offers travel from 24 to 60 inches with capacities from 2,000 to 6,000 lbs. This is the base configuration from which the T2 Double Pantograph and T3 Triple Pantograph are derived. For applications that need moderate travel with maximum durability and minimum downtime, the single TorkLift is the most cost‑effective entry point into the premium TorkLift line.
Features and Benefits
Every component in the TorkLift is engineered for extreme cycle life and heavy duty performance. All scissor rollers are captured within structural steel channels, preventing roller escape and providing excellent load stability under extreme or uneven loading. High‑impact, spiral wound bearings at every pivot point deliver maintenance‑free, rugged resistance to abrasion, impact, and uneven loads. Structural cross‑members at every pinned joint minimize leg deflection from twisting or spreading under heavy loads.
All hydraulic cylinders contain two‑piece, self‑aligning piston rods that transmit minimal side forces to the cylinder hinges and pins, significantly reducing wear on the most critical moving components. A low‑pressure hydraulic circuit extends the life of all hydraulic components and reduces stress on the electric motor. Structural steel channels in all top and lower frames provide additional rigidity. The compact single‑pantograph footprint allows workers to stand closer to the product, minimizing required floor space.
Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength. A minimum 1/4‑inch‑thick steel‑reinforced platform minimizes deck deflection. Semi‑transparent polyurethane oil reservoir provides visible fluid monitoring. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks. Autoquip backs the TorkLift with an industry‑best 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent. A minimum 3:1 structural factor of safety ensures reliable performance. Each unit complies with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The single pantograph TorkLift serves applications where standard‑duty scissor lift tables have failed prematurely or require excessive maintenance. Common uses include high‑cycle production workstations that run continuously across multiple shifts, parts assembly and disassembly where the lift cycles hundreds of times per day, ergonomic work positioning in demanding manufacturing environments, and any application where downtime from lift failure has a measurable impact on production throughput. The TorkLift’s five‑times cycle life advantage pays for itself in reduced maintenance, extended service intervals, and eliminated unplanned downtime.
Selection Assistance
The single pantograph TorkLift is the right choice for applications that demand premium durability at moderate travel ranges up to 60 inches with capacities up to 6,000 lbs. For applications requiring higher travel, the T2 Double Pantograph and T3 Triple Pantograph extend the TorkLift’s premium construction to 144 and 300 inches of travel respectively. For applications that do not require premium cycle life, the Series 35 offers a wider variety of configurations at lower price points. Barron Equipment can help you evaluate both product lines and recommend the right solution. Contact our team to discuss your application and request a quote.
