Autoquip's Freightlite® Optimizes Inventory, Handling, and Storage

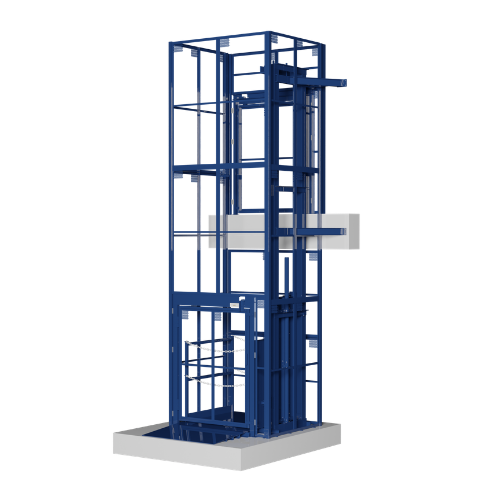

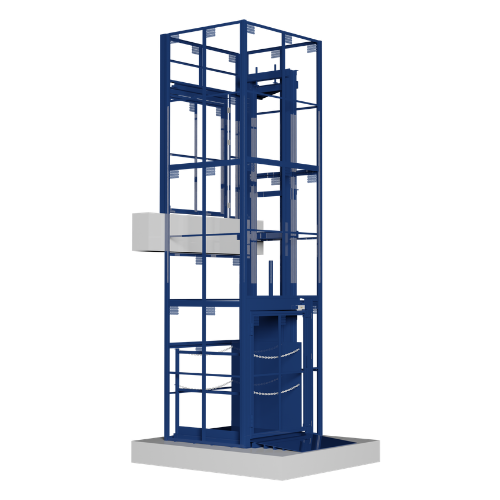

The industry standard in vertical lifts, Autoquip’s Freightlite vertical reciprocating conveyors (VRCs) supports the lift carriage and load from beneath throughout the vertical travel of the lift. Freightlite lifts travel up to 183″ with capacities to 3,000 lbs. Hydraulic VRCs are often used for material transfer between landings, mezzanine access, and conveyor systems, which improves use of vertical building space, enhances stability and safety during load transfer, and increase manufacturing efficiency.
All Autoquip lifts are built with standard safety features.
Autoquip ensures a safe operation when using our lifting equipment. We also offer advanced safety features designed to protect the particular needs of the customer’s application, as well as safety products that further protect your personnel, equipment, and operating zone.
To review the information on safety options below, and to have any of these items installed on your custom lift order, give Autoquip a call. Our experienced sales team will work with you to make sure the right lift and proper safety items are provided to get the job done and safeguard both your people and product.
- -Safety Guards & Handrails
- -Safety Mats
- -Bevel Toe-Guards
- -Hanging Toe Indicator Skirt
- -Electric Toe-Guard
- -Non-Skid Walking Surface
- -Velocity Fuses
- -Travel Limit Switch
- -Up-Stop Valve
- -Photo-Eye
- -Light Curtains
- -Accordion Skirts
- -Safety Enclosure System
- -Foot Activated Floor Locks
- -Emergency Stop Button
- -Key Lock Out Switch
- -Collision Detection
- -Audible Signals
- -Flashing Lights
- -Safety Wings
Durability and Quality
- High capacity needle bearing rollers produce smooth, reliable carriage movement.
- High impact rubber carriage stops absorb the shock and noise of the carriage as it stops at the upper landing.
- All hydraulic lifting rams naturally self-align to minimize side loading and wear on the bearings and seals.
- Lifting ram stabilizer arms eliminate ram deflection and side loading of the ram seals, extending the life of the rams and seals.
- Minimum ¼ inch thick steel reinforced platform minimizes deck deflection, maximizes load stability, and extends life of the platform deck.
- Structural steel guide beams ensure consistent, reliable tracking of carriage rollers and extends the life of the beams
- Chrome plating improves durability of the rods and extends the life of the cylinders and the seals.
Maintenance
- Maintenance-free carriage rollers require no lubrication.
- One-piece, structural steel maintenance device safely supports the lift carriage during inspection and routine maintenance.
- Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
- Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks
Simplicity
- Each hydraulic VRC ships fully assembled, including chains and cables.
- Upper landing carriage stops are easily adjustable over a 3-inch stopping distance.
- Freightlite carriage requires no overhead structure and enables an unlimited load height.
- Cantilevered design permits 3-way carriage loading.
Safety
- Automatic re-pressurization of the hydraulic system keeps the carriage level with the upper landing, which is critical when the lift is idle for long periods of time.
- Physical stops at the upper landing prevent the carriage from moving during loading and unloading of the lift.
- Standard-issue shaft way barrier bar system improves personnel safety when carriage leaves the upper landing.
- Interlocked landing gates automatically lock once the vertical lift carriage leaves a landing and cannot be opened until the lift carriage returns to that landing.
- Gate status switches prevent lift operation while any gate is open.
- Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
- Minimum 3:1 structural factor of safety makes these lifts the most structurally sound in the industry.
- Compliance with recognized standards:
- ASME B20.1 – Safety Requirements for Conveyors and Related Equipment
- VRC Application Guidelines – as referenced by ASME B20.1
- NFPA 70 – National Electric Code
- ASTM-A36 – Structural Steel Standard
- ANSI Z535 – Safety Labeling Requirements
- AWS D.1 – Welding Standards
- Applicable portions of OSHA 29CFR1910 – General Workplace Safety
