Overview
The M-Series strip door from Barron Equipment is a complete PVC strip door kit designed for walk-in coolers, freezers, restaurants, and food service environments. Each kit ships with looped PVC strips, an aluminum mounting bar, universal mounting brackets, O-rings, and mounting screws — everything needed for a fast, straightforward installation. Most common sizes are in stock and ready for immediate shipment.
Features & Benefits

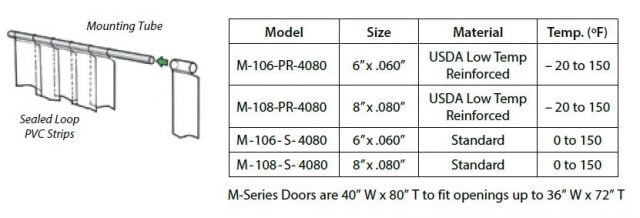

Every M-Series strip has a heat-sealed loop at the top that slides onto the aluminum mounting bar. This design relieves stress at the point where the strip meets foot traffic, extending strip life and reducing replacement frequency. When a strip does need attention, the looped design allows individual strips to be rotated for even wear or replaced without removing the entire assembly.
PVC strips are available in 6-inch and 8-inch widths to fit a range of opening sizes. Standard-grade PVC is suited for ambient temperature cooler applications and general food service environments. Polar-grade PVC includes nylon reinforcements embedded in the strips and is rated for freezer environments with temperatures as low as -20°F, making it ideal for cold storage units where energy savings matter most. Both grades comply with the Energy Independence and Security Act of 2007.
Aluminum mounting hardware and brackets are included with every kit. The universal bracket design supports both in-jamb and wall mount configurations, so the door adapts to your existing opening without custom fabrication. For openings 60 inches wide or greater, a center support bracket is recommended to maintain strip alignment and performance.
Applications
M-Series strip doors are a practical fit for environments that need to separate temperature zones while maintaining easy pedestrian access. Common applications include walk-in coolers and freezers, restaurant kitchens, grocery store back-of-house areas, food processing facilities, bakeries, and general food service operations. The overlapping PVC strips create a barrier that reduces the transfer of heated or cooled air between zones, helping to lower energy costs and maintain consistent temperatures when permanent doors are left open during high-traffic periods.
Options
Standard bracket hardware for overhead mounting is included with every kit, with open-end hardware brackets available as an option. PVC strip material is offered in standard grade and polar-grade reinforced. Both are available in 6-inch and 8-inch widths. The 18 oz vinyl construction on the leading edge provides durability through repeated pass-through contact. Replacement strips, replacement bars, and replacement brackets are all available individually, so you can maintain the door over time without purchasing a complete new kit.
Selection Assistance
Choosing the right strip door depends on your opening size, the temperature range inside and outside the doorway, and the type of traffic passing through. Barron Equipment’s product specialists can help you determine whether standard or polar-grade PVC is the right fit, and whether a 6-inch or 8-inch strip width is better suited to your application. Fill out the form below and one of our team members will be in touch to help you configure the right solution.
