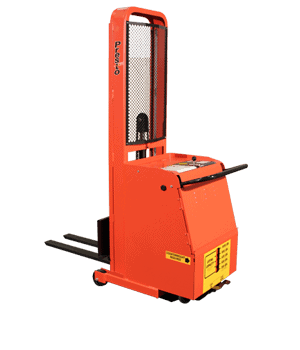

Powered lift, manual drive stackers.
Counterweight design eliminates front straddle legs making this stacker ideal for feeding machinery, lifting to docks or mezzanines or anywhere that extended base legs could cause interference. Works with open and closed bottom pallets.
All of our CW Series Stackers are part of our Always-In-Stock Program and are available for shipping within one week.
Product Spotlight
Options
Models
- Lifting speed - 5" per second
- Forks adjust from 6-1/2" to 20" O.D.
- 15-1/2" high fork backs
- Heavy-duty C100 foot-operated floor lock
- 12V 75 amp hour WLA Battery
- 1" thick x 3" wide adjustable solid steel forks
- Hinged door with capacity display
- LED dash mount – diagnostic display • 3 position “Comfort Cushion” push handle
- Quick-connect battery cables
- Wheels & Casters
- Remote Controls
- Fifth Wheel & Trailer
- Reversed/Inverted Forks
- Slip-On Platforms
- Modified Platforms
- Extended Backplate
- Boom With Hook
- Ram
- Drum Grabber DG-30
- Roller Bed
- P-6 Die Puller
- Fire Resistant Hydraulic Fluid
- Height
- Air Power
| Model Number | Load Capacity | Load Center | Raised Height | Low Height | Dimensions H x W x L | Wheel Diameter | Shipping Weight |
|---|---|---|---|---|---|---|---|
| CW Series - Adjustable 25" Forks | |||||||
| C62A-200 | 200 lbs | 13" | 62" | 1" | 80 x 27 x 36" | 5" x 5" | 750 lbs |
| C62A-400 | 400 lbs | 13" | 62" | 1" | 80 x 27 x 36" | 5" x 5" | 900 lbs |
| C62A-600 | 600 lbs | 13" | 62" | 1" | 80 x 27 x 36" | 5" x 5" | 1000 lbs |
| C62A-800 | 800 lbs | 13" | 62" | 1" | 80 x 27 x 36" | 5" x 5" | 1100 lbs |
| C62A-1000 | 1000 lbs | 13" | 62" | 1" | 80 x 27 x 36" | 5" x 5" | 1200 lbs |
| C74A-200 | 200 lbs | 13" | 74" | 1" | 92 x 27 x 36" | 5" x 5" | 775 lbs |
| C74A-400 | 400 lbs | 13" | 74" | 1" | 92 x 27 x 36" | 5" x 5" | 925 lbs |
| C74A-600 | 600 lbs | 13" | 74" | 1" | 92 x 27 x 36" | 5" x 5" | 1025 lbs |
| C74A-800 | 800 lbs | 13" | 74" | 1" | 92 x 27 x 36" | 5" x 5" | 1125 lbs |
| C74A-1000 | 1000 lbs | 74" | 1" | 92 x 27 x 36" | 5" x 5" | 1225 lbs | |
| CW Series - Adjustable 30" Forks | |||||||
| C62A-15LC | 1000 lbs | 15" | 62" | 1" | 80 x 27 x 41" | 5" x 5" | 1450 lbs |
| C74A-15LC | 1000 lbs | 15" | 74" | 1" | 92 x 27 x 41" | 5" x 5" | 1475 lbs |
