10 Inch Blickle Extrathane Polyurethane Drive Wheel
10 Inch Blickle Extrathane Polyurethane Drive Wheel video

10 Inch Blickle Extrathane Polyurethane Drive Wheel

Item ID: GTHN 10X3/0.75-KW188 Category

Lead Time: 5 days

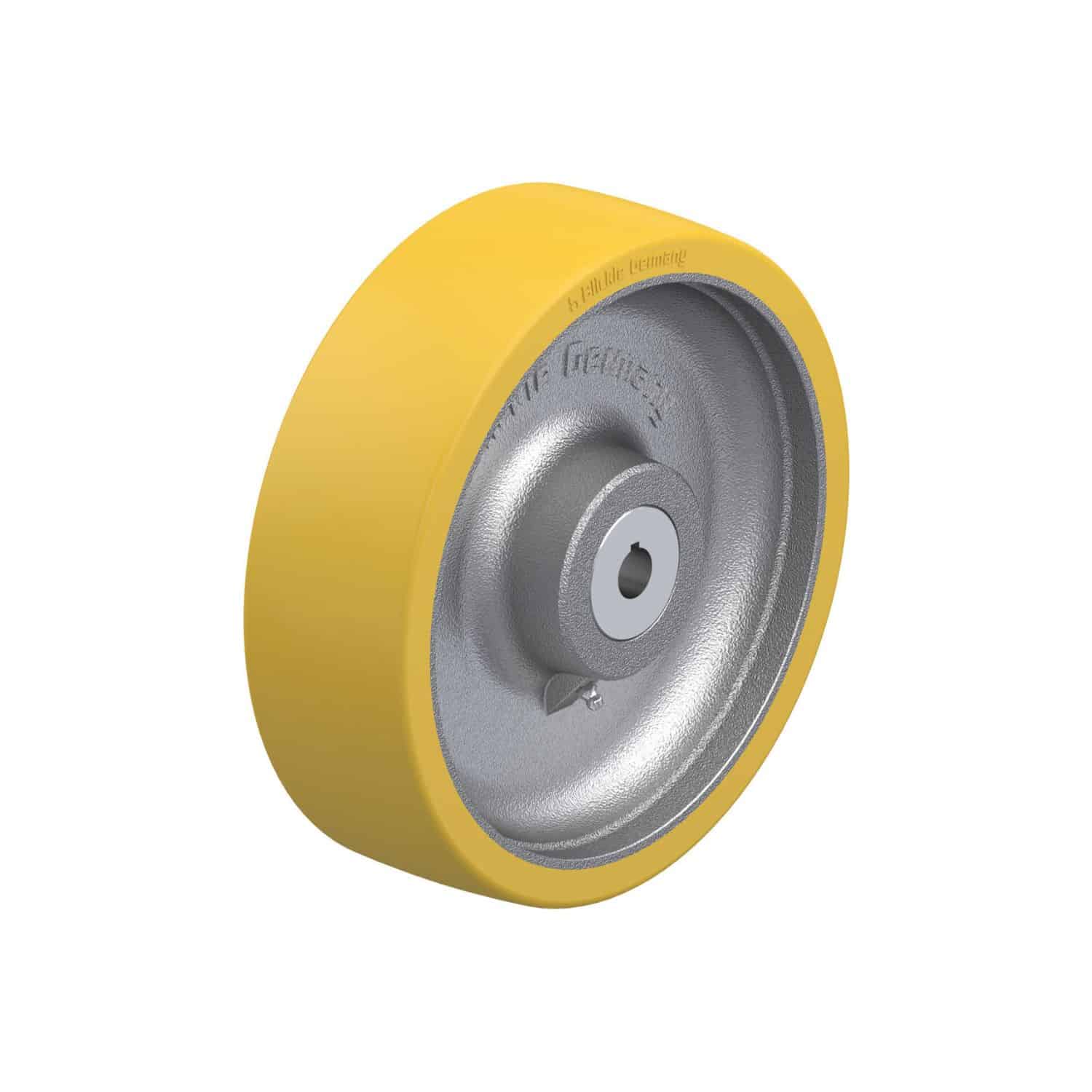

Drive wheel with hub keyway with polyurethane tread and cast iron wheel center. Tread is polyurethane elastomer hardness 92 Shore A. High abrasion resistance non-marking non-staining. Wheel is cast iron axle bore in accordance with DIN 6885 lacquer D.

$71.93

Overview

The GTHN 10x3/0.75-KW188 Blickle heavy-duty polyurethane wheel is designed to provide top-quality mobility solutions for various industrial applications. This wheel features high-quality materials and precision engineering, ensuring reliable performance and durability. The polyurethane caster wheels offer excellent floor protection and are ideal for heavy-duty tasks.

Benefits

  • Durability: The heavy-duty polyurethane wheel is built to withstand rigorous use, providing long-lasting performance.
  • Floor Protection: Polyurethane caster wheels are gentle on floors, reducing wear and tear.
  • Smooth Operation: Equipped with precision ball bearings, this wheel ensures maintenance-free, smooth operation.
  • High Load Capacity: Designed to handle substantial loads, making it suitable for demanding industrial environments.
SKUGTHN 10x3/0.75-KW188Minimum Temperature-20
Wheel Diameter10 InchesMaximum Temperature160
Wheel Width3 InchesWheel MaterialBlickle Extrathane Polyurethane Elastomer
Hardness Rating92 Shore ABearing TypeHub Keyway
Core MaterialCast IronWeight Capacity3525 at 2.5 mph
ApplicationHeavy DutyOverall Height8 Inches

Blickle Extrathane Polyurethane Wheels

Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.

Barron Equipment offers a full range of Extrathane wheel solutions, including:

  • GTH Series: Cast iron wheel centers for rugged durability and high load capacity
  • ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
  • SETH & VSTH Series: Welded steel centers for extreme-duty applications

These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.

Check out the video below to learn more.

Applications

The Blickle GTHN 10x3/0.75-KW188 heavy-duty polyurethane wheel is perfect for a wide range of applications, including:
  • Industrial carts and trolleys
  • Heavy machinery and equipment
  • Warehouse and logistics operations
  • Manufacturing plants

Selection Assistance

Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!

Product Specification

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Brakes

Weight Capacity

Application

Bearing Type

Hub Keyway
Overall Height

Not Applicable
Core Material

Cast Iron
Minimum Temperature

-20
Maximum Temperature

160
Hardness Rating

92 Shore A
Bolt Hole Spacing

2-5/8in x 3-5/8in – 3in x 3in
Wheel Diameter

Wheel Width
