Roll-Up Door vs. Swing-Door Cabinet: Why Aisle Clearance Matters

Standard hinged swing-door storage cabinets require front aisle clearance equal to the door panel width to open fully. For a 24-inch deep cabinet, users typically need to step back approximately 3 feet to open doors without obstruction — a factor often overlooked until installation.

A cabinet with roll up door requires zero front clearance. The door disappears upward into the cabinet body. The result: you can install roll-up door cabinets against walls, in tight back-to-back rows, and in high-traffic aisles that swing doors would physically block.

Features and Benefits

Strong Hold designates these roll up cabinet doors under its Extreme Duty classification — manufactured from 12-gauge steel with an industry-leading overall capacity of 11,000 lbs. The lower the gauge number, the thicker and stronger the steel, and 12-gauge is the heaviest option Strong Hold offers in this product line.

The lightweight aluminum rolling door eliminates the need for swing-door clearance between cabinets, freeing up valuable aisle space in crowded facilities. Each storage cabinet with roll up door includes 4 adjustable shelves with weight capacities ranging from 1,500 to 2,200 lbs per shelf, depending on the model. Seven-gauge legs with floor anchoring plates stand at 6 inches tall, allowing for smooth forklift transportation and repositioning across your workspace.

All Strong Hold roll up door cabinets include a built-in keyed lock integrated directly into the roll-up door panel at the base. This is a different locking system from swing-door cabinets, which use a padlock hasp and 3-point locking rods. The built-in lock is part of the roll-up door mechanism itself — no external padlock is needed. Electronic lock upgrades may be available on request. Contact Barron Equipment to confirm current options for this product line.

All three models are available in 12 standard powder-coat colors: Dark Gray, Dusty Gray, Black, White, Brown, Beige, Blue, Red, Orange, Yellow, Light Blue, and Teal. Select your color at checkout on each product page.

Strong Hold is a Veteran-Owned Small Business manufacturing industrial storage equipment in Louisville, KY. Every roll up door storage cabinet ships fully assembled and ready for use, backed by a 99-year manufacturer warranty. Barron Equipment is an authorized Strong Hold distributor serving industrial customers across Iowa, Illinois, Nebraska, and the Midwest.

Applications

Roll up door cabinets deliver their greatest value in environments where aisle clearance and floor space efficiency are non-negotiable. Common applications include:

• Manufacturing floors and production areas: Where cabinet rows are installed along walls or between workstations with limited aisle width
• Automotive service bays: Where tools and parts need to be accessed from a single aisle between closely spaced cabinets
• Warehousing and MRO storage: Where high-traffic picking aisles cannot accommodate outward-swinging doors
• Schools and institutional facilities: Storage rooms where hallway clearance is limited
• Commercial kitchens and food service facilities: Where floor space efficiency is critical
• Maintenance rooms: Where cabinets are placed in corner configurations that swing doors cannot access

For facilities that also need visual inventory access, consider our clear view storage cabinets. For operations requiring additional shelf capacity across multiple shifts, our double-shift storage cabinets may be a better fit. Browse the full lineup of industrial storage cabinets from Barron Equipment.

Frequently Asked Questions

What is a roll-up door cabinet?

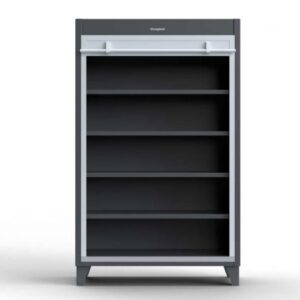

A roll-up door storage cabinet is a heavy-duty, all-welded steel storage unit featuring a tambour-style aluminum door that retracts vertically into the cabinet body rather than swinging outward. Strong Hold roll-up door storage cabinets from Barron Equipment are manufactured from 12-gauge steel with a built-in keyed lock, 4 adjustable shelves, and 7-gauge legs with floor anchoring plates for forklift access. Available in 36, 48, and 60-inch widths, all models share an 11,000 lb overall capacity, ship fully assembled from Louisville, KY, and are backed by a 99-year manufacturer warranty.

How does the roll-up door mechanism work?

The roll-up door is constructed from interlocking aluminum slats that slide vertically along internal tracks built into the cabinet body. When opened, the slats retract upward into a concealed housing at the top of the cabinet, keeping the door out of the way without projecting forward into the aisle. A built-in keyed lock secures the door at the base when closed. The door requires no front clearance to open — unlike a hinged swing door, which requires aisle space equal to the width of the door panel.

How much aisle clearance does a roll-up door cabinet save compared to a swing-door cabinet?

A roll-up door cabinet requires zero front aisle clearance to open — the door retracts upward into the cabinet body. A standard hinged swing-door cabinet requires front clearance equal to the door panel width to open fully. For a 24-inch deep industrial cabinet, users typically need approximately 3 feet of front clearance to open swing doors without obstruction. Roll-up door cabinets eliminate this clearance requirement entirely, allowing installation in narrow aisles, against walls, in tight row configurations, and in high-traffic areas where swing doors cannot open.

Do roll-up door storage cabinets come fully assembled?

Yes. All Strong Hold roll-up door storage cabinets sold by Barron Equipment ship fully assembled from Louisville, KY and are ready for immediate use upon delivery. No on-site assembly is required.

What lock type is on a roll-up door storage cabinet?

All Strong Hold roll-up door storage cabinets include a built-in keyed lock integrated directly into the roll-up door at the base. This lock is built into the door mechanism — unlike swing-door models which use a separate padlock hasp. Contact Barron Equipment to inquire about electronic lock upgrade options.

What sizes are available in the Strong Hold roll-up door cabinet line at Barron Equipment?

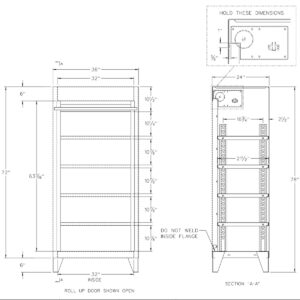

Barron Equipment offers Strong Hold roll-up door storage cabinets in three widths: 36 inches (SKU 36-RUDD-244), 48 inches (SKU 46-RUDD-244), and 60 inches (SKU 56-RUDD-244). All three models are 24 inches deep and 78 inches tall with 4 adjustable shelves. Shelf capacity varies by model: 2,200 lbs per shelf (36-inch), 1,500 lbs per shelf (48-inch), and 1,950 lbs per shelf (60-inch). All three share an 11,000 lb overall storage capacity.

What is the lead time for roll-up door storage cabinets?

Lead time varies by model. The 36-inch model (SKU 36-RUDD-244) has a confirmed lead time of approximately 14 weeks. Lead times for the 48-inch and 60-inch models are available on their respective product pages or by contacting Barron Equipment directly. All models are built to order by Strong Hold in Louisville, KY.

Are bulk purchasing discounts available on roll-up door storage cabinets?

Yes. Bulk purchasing discounts are available. Contact Barron Equipment using the form on the product page or via LiveChat to discuss pricing for multiple units.

What colors are available for roll-up door storage cabinets?

Strong Hold roll-up door storage cabinets are available in 12 standard powder-coat colors: Dark Gray, Dusty Gray, Black, White, Brown, Beige, Blue, Red, Orange, Yellow, Light Blue, and Teal. Color is selected at checkout using the product option selector on each product page.

What is the return policy on roll-up door storage cabinets?

Barron Equipment offers refunds within 30 days of the invoice date. Products returned for reasons other than warranty correction are subject to a 50% restocking fee plus any freight charges incurred by Barron Equipment. Custom-specified products and products purchased on clearance are excluded from returns.

Selection Assistance

Barron Equipment’s product specialists are available to help you select the right cabinet width and lock type for your specific aisle configuration. Whether you need a single unit or a full row of cabinets for a production floor, we can help you find the right fit. Barron Equipment has served industrial customers since 1979.
