Vacuum Lifts & Magnets
Vacuum lifts help operators safely lift, move, and position materials using vacuum suction technology rather than manual handling. These systems create a pressure differential that grips a load and allows it to be lifted by an overhead crane, jib crane, hoist, forklift attachment, or ergonomic lifting arm. Barron Equipment offers vacuum lifting solutions from ANVER and Caldwell for applications ranging from lightweight cartons and bags to heavy panels, steel plate, glass, stone, and industrial materials. Vacuum lift systems are available in capacities from approximately 70 lbs to 900 lbs and beyond depending on the application and configuration.
Vacuum lifting equipment is commonly used in manufacturing, warehousing, distribution, food processing, metal fabrication, and material handling operations where repetitive lifting, product damage, or ergonomic concerns make manual handling inefficient or unsafe.
-
ANVER Air Powered Vacuum Lifter – Single Pad Attachment
Easily lift steel, glass, plastics, and other smooth materials with the ANVER Air-Powered Vacuum Lifter. The single-pad design delivers a secure vacuum grip for precise material handling and positioning.Read more -

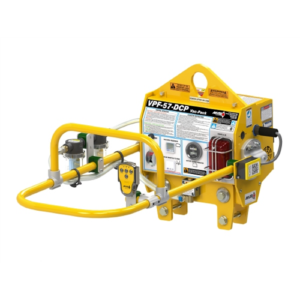

ANVER Battery Powered Vacuum Lifter
Lift sheet metal, glass, stone, and plastics without the need for compressed air. The ANVER Battery-Powered Vacuum Lifter provides portable, reliable vacuum lifting wherever the job takes you.Read more -
ANVER Fork Truck Vacuum Lifter Attachment
Transform your forklift into a versatile vacuum lifter. The ANVER Fork Truck Vacuum Lifter Attachment securely handles sheet metal, glass, and panel products for safer, more efficient material movement.Read more -

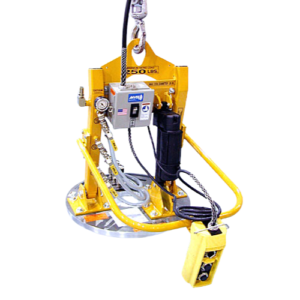

ANVER Vacuum Coil Lifter and Roll Lifter
Safely lift and position coils, rolls, and cylindrical materials with ANVER's Vacuum Coil Lifter and Roll Lifter. Ideal for handling steel coils, paper rolls, and other rolled products with precision and control.Read more -

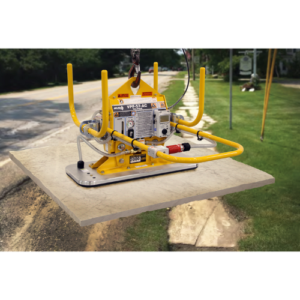

ANVER Vacuum Lifter for Stone and Granite
Move granite, marble, and stone slabs with confidence. The ANVER Vacuum Lifter for Stone and Granite provides a secure vacuum grip for safer handling, fabrication, and installation.Read more -

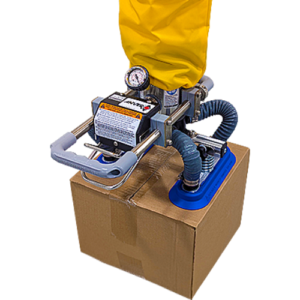

ANVER VT Ergonomic Vacuum Tube Lifter
Lift boxes, bags, drums, and other materials with ease using the ANVER VT Ergonomic Vacuum Tube Lifter. Ideal for repetitive material handling tasks that require speed, control, and precision.Read more -
Caldwell 2 Crossarm/4 Pad – Heavy Duty
Lift large, heavy sheet materials with confidence. The Caldwell 2-Crossarm 4-Pad Heavy-Duty Vacuum Lifter delivers stable, secure handling for steel, glass, and other non-porous loads.Read more -
Caldwell 2 Crossarm/4 Pad – Standard Duty
Reliably lift steel, glass, and other flat materials with the Caldwell 2-Crossarm 4-Pad Standard-Duty Vacuum Lifter. Its four-pad design provides secure, balanced handling for day-to-day material movement.Read more -
Caldwell 3 Crossarm/6 Pad – Heavy Duty
Tackle oversized and heavy sheet materials with confidence. The Caldwell 3-Crossarm 6-Pad Heavy-Duty Vacuum Lifter delivers superior stability and control for lifting large steel, glass, and panel products.Read more -
Caldwell 3 Crossarm/6 Pad – Standard Duty
Move large sheet materials with ease using the Caldwell 3-Crossarm 6-Pad Standard-Duty Vacuum Lifter. The six-pad design delivers stable, balanced lifting for steel, glass, and other flat materials.Read more -
Caldwell 4 Crossarm/8-12 Pad – Heavy Duty Vacuum Lift
Handle your biggest sheet materials with confidence. The Caldwell 4-Crossarm 8/12-Pad Heavy-Duty Vacuum Lifter delivers maximum stability and secure lifting for oversized steel, glass, and panel products.Read more -
Caldwell 4 Crossarm/8-12 Pad – Standard Duty
Safely lift and transport large steel, glass, and panel products with the Caldwell 4-Crossarm 8/12-Pad Standard-Duty Vacuum Lifter. Multiple pad configurations provide stable, balanced load handling for oversized materials.Read more
Product Overview Video
Benefits of Vacuum Lifting Systems
Vacuum lifts help facilities improve both productivity and workplace ergonomics by allowing a single operator to safely handle materials that would otherwise require multiple employees or specialized lifting methods.
Common benefits include:
- Reduced manual lifting and repetitive motion
- Improved operator safety and ergonomics
- Faster material handling cycles
- Reduced product damage
- Better load control during transport
- Single-operator handling for many applications
- Improved workflow efficiency
- Versatility across many material types
Vacuum lifting systems are especially effective in operations where lifting occurs frequently throughout the workday.
Vacuum Lifter Power Source Options
Different vacuum lifters use different power sources based on the work environment and application requirements.
| Power Type | How It Works | Best For |
|---|---|---|
| Air-Powered | Uses facility compressed air to generate vacuum | Continuous industrial applications with existing air systems |
| Battery-Powered | Rechargeable battery powers vacuum pump | Portable operations and areas without compressed air |
| Electric-Powered | Electric pump generates vacuum | Fixed workstations and high-cycle applications |
| Manual / Mechanical | Operator-generated vacuum source | Light-duty or occasional lifting tasks |
What Materials Can Vacuum Lifts Handle?
Vacuum lifting systems are used across a wide range of industries because they can handle many different materials and product shapes.
Common applications include:
- Corrugated cartons
- Bags and sacks
- Plastic containers
- Metal sheets
- Steel plate
- Glass panels
- Stone and granite
- Wood products
- Composite panels
- Palletized loads
- Coils and rolls
Material surface characteristics play an important role in selecting the correct vacuum system.
Porous vs. Non-Porous Materials
One of the most important considerations when selecting a vacuum lifter is whether the product being handled is porous or non-porous.
Non-Porous Materials
Non-porous materials create a tight seal between the suction pad and the load surface, allowing the vacuum system to achieve its full rated capacity.
Examples include:
- Glass
- Polished metal
- Smooth steel
- Sealed plastic
- Finished stone
Porous Materials
Porous materials allow air leakage through the material surface, reducing overall vacuum strength and effective lifting capacity.
Examples include:
- Corrugated cardboard
- Paper sacks
- Foam
- Woven materials
- Certain wood products
Vacuum lifters designed for porous materials often require higher-flow vacuum pumps, larger suction surfaces, or specialized gripper solutions to compensate for air loss. For example, the CM450 vacuum lifter is rated at 90 lbs on non-porous materials and 70 lbs on porous materials.
Vacuum Tube Lifters vs. Below-Hook Vacuum Lifters
Not all vacuum lifting systems perform the same function.
Vacuum Tube Lifters
Vacuum tube lifters use a flexible lifting tube and ergonomic control handle to help operators repeatedly lift and maneuver products throughout a work area.
Typical applications include:
- Boxes
- Bags
- Cartons
- Plastic containers
- Drums
- General warehouse handling
These systems are commonly suspended from an overhead rail, articulated arm, or jib crane and are designed for repetitive ergonomic lifting tasks.
Below-Hook Vacuum Lifters
Below-hook vacuum lifters attach to an overhead crane or hoist and use multiple suction pads to lift large, heavy, or awkward loads.
Typical applications include:
- Steel plate
- Glass panels
- Sheet metal
- Architectural panels
- Large fabricated components
These systems are designed for higher-capacity industrial lifting applications and often incorporate adjustable crossarms for larger loads.
ANVER Vacuum Lifters
Barron Equipment offers ANVER vacuum lifting solutions for a wide range of industrial applications.
Available configurations include:
- Air-powered vacuum lifters
- Battery-powered vacuum lifters
- Fork truck vacuum lifting attachments
- Vacuum coil and roll lifters
- Stone and granite vacuum lifters
- VT ergonomic vacuum tube lifters
ANVER vacuum lifters are available in multiple configurations to match material type, weight, handling frequency, and facility infrastructure requirements.
Caldwell Vacuum Lift Systems
Caldwell vacuum lifting systems are commonly used for larger below-hook lifting applications involving panels, steel, glass, and fabricated materials.
Configurations include:
- 2-crossarm / 4-pad systems
- 3-crossarm / 6-pad systems
- 4-crossarm / 8–12-pad systems
- Standard-duty models
- Heavy-duty models
These systems are designed for overhead crane and hoist applications requiring controlled handling of large-format materials.
Vacuum Lifter vs. Lifting Magnet
A common question among buyers is whether a vacuum lifting system or lifting magnet is the better solution.
The answer depends primarily on the material being handled.
Vacuum lifters use suction technology and can handle a wide variety of smooth materials, including steel, aluminum, glass, plastic, stone, and wood. Lifting magnets use magnetic force and can only lift ferrous materials such as carbon steel and cast iron. They cannot lift aluminum, copper, brass, or other non-ferrous materials. Vacuum lifters are generally preferred for mixed-material environments and sensitive surfaces, while magnets are ideal for high-volume steel handling operations.
| Feature | Vacuum Lifter | Lifting Magnet |
|---|---|---|
| How It Works | Vacuum suction | Magnetic force |
| Materials | Steel aluminum glass stone plastic wood | Ferrous steel and cast iron only |
| Power Requirements | Air battery electric or manual | Varies by magnet type |
| Best For | Mixed materials and delicate surfaces | High-volume steel handling |
| Surface Contact | Suction pads | Magnetic contact |
ASME B30.20 Compliance
Vacuum lifters are classified as below-the-hook lifting devices and are governed by ASME B30.20, which addresses marking, construction, inspection, testing, maintenance, and operation requirements for lifting devices used with cranes and hoists. ANVER vacuum lifting systems comply with ASME B30.20 and the companion design standard ASME BTH-1. Facilities using vacuum lifters should ensure equipment is selected, marked, inspected, and maintained according to applicable standards and operational requirements.
Industries That Use Vacuum Lifts
Vacuum lifting systems are widely used in:
- Warehousing and distribution
- Manufacturing
- Food processing
- Packaging operations
- Metal fabrication
- Glass fabrication
- Stone and countertop production
- Plastics manufacturing
- Building products manufacturing
The versatility of vacuum lifting technology allows facilities to handle products that would otherwise require significant manual effort or specialized lifting equipment.
How to Choose the Right Vacuum Lift
When evaluating vacuum lifting equipment, consider:
- Material type
- Load weight
- Surface characteristics
- Porous or non-porous construction
- Lift frequency
- Available overhead support equipment
- Required travel distance
- Facility compressed air availability
- Required portability
- Future production requirements
Selecting a system based on these factors helps ensure proper performance, safety, and long-term value.
Why Choose Barron Equipment?
Barron Equipment helps customers identify the right vacuum lifting solution based on material type, load capacity, lifting frequency, and operational requirements. Our team works with manufacturers including ANVER and Caldwell to configure systems for warehousing, distribution, manufacturing, and ergonomic material handling applications. Barron serves customers throughout all of Iowa and Illinois, plus parts of Wisconsin, Minnesota, Missouri, and Nebraska.
Frequently Asked Questions
What is a vacuum lifter?
A vacuum lifter is an industrial lifting device that uses vacuum suction generated by compressed air, an electric pump, or a battery-powered system to grip and move a load. These systems are commonly used for material handling applications involving boxes, bags, glass, stone, panels, and sheet materials.
What materials can vacuum lifts handle?
Depending on the configuration, vacuum lifting systems can handle cardboard cartons, bags, metal sheets, glass panels, plastic products, stone slabs, wood products, steel plate, and many other materials.
What is the difference between porous and non-porous materials?
Non-porous materials create a complete vacuum seal and allow a system to achieve full rated lifting capacity. Porous materials allow air leakage and may require specialized vacuum systems designed for higher airflow applications.
What power source should I choose?
Vacuum lifters are available in air-powered, battery-powered, electric-powered, and manual configurations. The best choice depends on facility infrastructure, portability requirements, and lifting frequency.
Are vacuum lifts safe?
When selected, operated, and maintained properly, vacuum lifting systems provide a controlled lifting method that can reduce manual handling and ergonomic strain. Many systems are designed in accordance with ASME B30.20 requirements.
How do I choose the right vacuum lifter?
The correct system depends on load weight, material type, surface characteristics, lifting frequency, overhead support equipment, and operational requirements. Barron Equipment can help evaluate these factors and recommend an appropriate solution.
