Overview

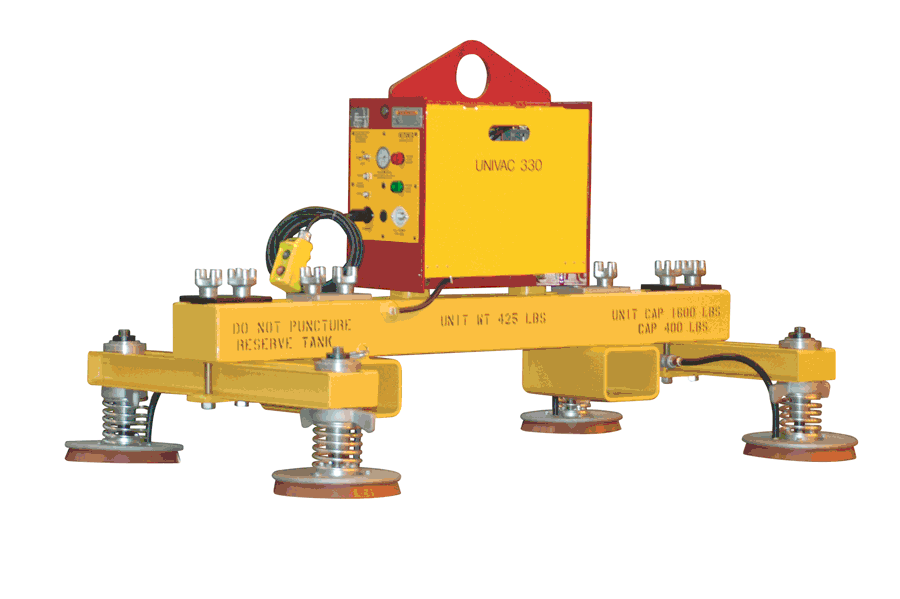

Barron Equipment offers the Caldwell Model D Heavy Duty Vacuum Lifter with twin crossarms and four vacuum pads, purpose-built for handling wide or thin materials in demanding industrial environments. This heavy duty vacuum hoist delivers the stability and load control needed to safely move large sheet goods, panels, and plate materials where standard single-beam configurations fall short.
The twin crossarm design distributes suction across a wider footprint, reducing deflection on thinner materials and keeping wider loads balanced during transport. Whether your operation handles steel sheets, glass panels, wood boards, or composite materials, this industrial vacuum lifting system is engineered to perform in high-volume production and warehouse settings.
How the Twin Crossarm Design Improves Lifting Performance
Standard vacuum lifters with a single beam can struggle with wide or flexible materials that tend to bow under their own weight. The twin crossarm configuration on this Caldwell vacuum hoist addresses that challenge by spreading the four vacuum pads across two independent crossarms. This arrangement provides extra stability for wider loads while significantly reducing the amount of deflection that occurs when handling thinner sheet material.
Each crossarm is mounted to a central load beam, creating a balanced lifting geometry that keeps materials level throughout the pick, move, and place cycle. Operators gain greater control over the load, which translates to safer lifts and reduced risk of product damage during material handling tasks.
Features and Benefits
This heavy duty vacuum lift system is built with industrial-grade components designed for long service life and minimal downtime. Key features include:
- Ball-mounted vacuum pads that conform to uneven or slightly textured surfaces for a secure grip
- Brass fittings throughout the vacuum circuit for corrosion resistance and reliable sealing
- Push-lock hose rated for 250 psi, ensuring strong vacuum retention under heavy loads
- Slide valves that allow manual isolation of individual vacuum pads, giving operators the flexibility to use two or four pads depending on load size
- Spin-on muffler and filter for quick, tool-free replacement and reduced maintenance time
- Standard load beam lengths of 5 ft., 6 ft., and 8 ft., with custom sizes available — consult Barron for non-standard configurations
Available with either electric or shop air (venturi) power options, this vacuum lifting system can be configured to match existing facility infrastructure without costly modifications.
Applications
The Caldwell heavy duty twin crossarm vacuum lifter is commonly used across industries that require frequent lifting and repositioning of wide, flat, or thin materials. Typical applications include steel fabrication shops handling plate and sheet stock, glass manufacturing and installation operations, woodworking facilities moving large panel goods, and composite material processing lines.
This vacuum hoist integrates with overhead cranes, jib cranes, and gantry systems, making it a versatile addition to existing material handling infrastructure. Operations that process materials in the 680 lb. to 2,400 lb. capacity range will find this lifter particularly well suited to their workflow.
Selection Assistance
Choosing the right vacuum lifting system depends on several factors, including the weight and dimensions of your material, whether the surface is porous or non-porous, the available power source, and the required crossarm beam length. Barron Equipment's team works directly with customers to identify the correct model number, capacity rating, and power configuration for each application.
If your operation handles a mix of material widths or thicknesses, the slide valve isolation feature allows operators to adapt this lifter to different load sizes without swapping equipment. For applications requiring more than four pads or additional crossarms, Barron also carries 3-crossarm and 4-crossarm configurations in both standard and heavy duty ratings.
Contact Barron Equipment to request a quote or discuss the best vacuum lifting solution for your facility.
