Dock Leveler Seals
Dock leveler seals are weatherstripping systems installed around the perimeter of a loading dock leveler pit to help block outside air, moisture, insects, rodents, and debris. Depending on the leveler, sealing may be needed along the side gaps, rear hinge area, and pull-chain opening.
Dock leveler seals protect gaps around the pit itself. They are different from dock door weather seals, which close gaps around the building opening and a backed-in trailer during loading and unloading. Barron Equipment offers dock leveler seal kits and components from Action Industries for warehouses, cold-storage facilities, food-processing operations, distribution centers, and industrial loading docks.
Where Dock Levelers Need Sealing
A pit-style dock leveler can allow environmental infiltration through several areas:
- Side gaps between the deck and pit walls
- Rear hinge openings
- Pull-chain openings on applicable mechanical levelers
- Irregular or damaged openings around the pit
The right solution may use one seal type throughout the perimeter or combine perimeter, rear, and pull-chain seals.
Types of Dock Leveler Seals
Brush Seals
Brush seals use dense polypropylene bristles that conform to uneven gaps while allowing the leveler to move normally. The bristles remain flexible in cold conditions, making brush seals suitable for general warehouses, high-traffic docks, cold storage, and freezer applications.
Vinyl Seals
Vinyl seals create a solid, cost-effective barrier against drafts, dust, and debris. They are generally suited to interior loading docks, climate-moderate regions, and applications where extreme cold is not the primary concern.
EPDM Seals
EPDM is a flexible synthetic rubber used in dock-sealing applications exposed to wide temperature ranges, UV exposure, and changing weather conditions. The analyzed product information identifies a temperature range of-50°F to 300°F for applicable EPDM configurations.
WeatherBlock Seals
WeatherBlock seals combine polypropylene bristles with an EPDM rubber fin. The brush conforms to irregular gaps, while the EPDM fin provides a secondary barrier against air and moisture. These systems are particularly relevant for cold storage, food distribution, pharmaceutical operations, and temperature-controlled facilities.
High-Visibility Zebra Brush Seals
Zebra brush seals use alternating black-and-yellow polypropylene bristles. They provide the gap-conforming performance of a standard brush seal while increasing visibility around dock pits where pedestrian and forklift traffic overlap.

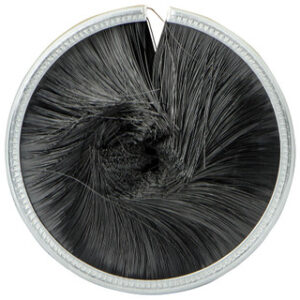

Pull-Chain Brush Ring Seals
The Dock Leveler Brush Ring Seal closes the opening around a mechanical leveler’s pull chain. Its polypropylene bristles help limit drafts, pests, and debris entering through the chain slot. The analyzed product is available in 1¾-inch and 2½-inch sizes.
Dock Leveler Seal Comparison
| Seal Type | Primary Material | Best Application |
|---|---|---|
| Brush Seal | Polypropylene bristles | General warehouses, cold storage, freezer and high-traffic docks |
| Vinyl Seal | Flexible vinyl | Interior and climate-moderate loading docks |
| EPDM Seal | Synthetic rubber | Wide temperature ranges and weather-exposed applications |
| WeatherBlock | Polypropylene brush with EPDM fin | Enhanced air and moisture control |
| Zebra Brush | Black and yellow polypropylene | High-visibility pit areas |
| Pull-Chain Seal | Polypropylene brush | Pull-chain openings on mechanical levelers |
How to Select the Correct Seal Size
Brush-seal sizing is based on the gap between the leveler frame and pit wall. The analyzed product information identifies brush heights ranging from ½ inch through 2 inches.
To begin the selection process:
- Place the dock leveler in its stored, lowered position.
- Measure the side gaps between the leveler frame and pit walls.
- Inspect the rear hinge and pull-chain areas for additional openings.
- Select a brush height that maintains contact without interfering with leveler movement.
- Verify the measurements against the selected kit’s specifications.
Measure multiple points because gap dimensions may vary across an older or irregular pit.
Dock Leveler Seals vs. Dock Blankets
Dock leveler seals and dock blankets address related but different areas.
Dock leveler seals close specific gaps around the side perimeter, rear hinge, and pull-chain opening.
Dock blankets help insulate the broader leveler-pit area during idle periods, especially when no trailer is present.
Temperature-controlled facilities may benefit from using both systems as part of a broader dock-sealing strategy.
Benefits of Sealing the Leveler Pit
Properly selected leveler seals can help:
- Reduce uncontrolled air exchange
- Limit moisture and outdoor debris
- Discourage insect and pest entry
- Support more consistent indoor temperatures
- Keep dock pits cleaner
- Improve visibility around the pit when zebra brushes are used
Seal performance depends on accurate sizing, proper installation, and maintaining consistent contact around the pit.
When to Replace a Dock Leveler Seal
Inspect the sealing system if you notice:
- Visible light around the stored leveler
- Missing, bent, or worn bristles
- Split, hardened, or detached rubber
- Increasing debris or pest activity in the pit
- Drafts near the leveler perimeter
- Frost or ice around a cold-storage dock pit
These conditions may indicate that the seal no longer maintains consistent contact with the frame or pit walls.
Installation and Service
Installation requirements vary by seal kit. Some systems use retainers with pre-punched holes and supplied fasteners, while other configurations may require professional mounting or welding. Follow the selected manufacturer’s documentation rather than assuming one installation method applies to every seal.
Barron Equipment can evaluate the pit condition, measure the gap profile, recommend an appropriate seal material and brush height, and confirm normal leveler operation after installation.
Barron Equipment serves all of Iowa and Illinois, plus parts of Wisconsin, Minnesota, Missouri, and Nebraska. Request a quote online for dock leveler seal selection or installation support.
Frequently Asked Questions
What is a dock leveler seal?
A dock leveler seal is a weatherstripping system installed around a loading dock leveler pit to help block air, moisture, pests, and debris through gaps along the sides, rear hinge, or pull-chain opening.
How is a dock leveler seal different from a dock door weather seal?
A leveler seal protects gaps around the dock leveler pit. A dock door weather seal protects gaps around the building opening and trailer perimeter during loading.
What is the difference between brush, vinyl, EPDM, and WeatherBlock seals?
Brush seals conform to uneven gaps, vinyl creates an economical solid barrier, EPDM supports a broad temperature range, and WeatherBlock combines brush and EPDM materials for enhanced air and moisture control.
Do dock leveler seals help with pest exclusion?
Seals can discourage insects and make pest entry more difficult by closing gaps around the pit. Facilities with significant rodent pressure may require a dedicated pest-resistant system supported by product-specific documentation.
How do I choose the correct brush height?
Measure the gap between the leveler frame and pit wall with the leveler stored. Available brush heights in the analyzed lineup range from ½ inch through 2 inches.
What are the signs that a seal needs replacement?
Visible gaps, damaged bristles, hardened rubber, drafts, pest activity, debris accumulation, and frost near cold-storage pits can indicate that replacement is needed.
Dock Leveler Seal Selection
Barron Equipment helps warehouses, manufacturers, cold-storage facilities, food-processing operations, pharmaceutical facilities, and distribution centers compare dock leveler seals based on pit dimensions, material, temperature, moisture, traffic, and pest-control needs.
Request a quote online to determine the right seal configuration for your dock leveler.
