Overview

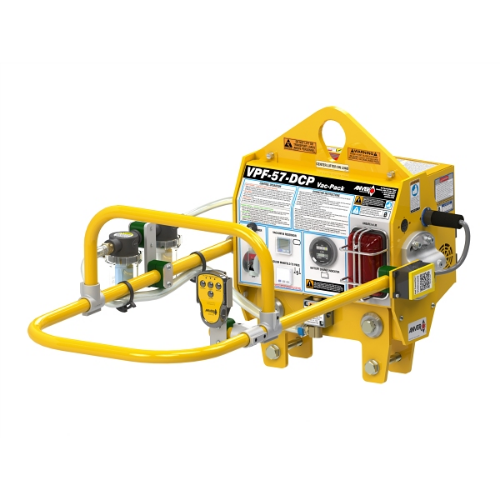

Barron Equipment carries the ANVER Battery Powered Vacuum Lifter — a self-contained, cordless vacuum lifting system designed for applications where AC electrical power is not available below the hook. Powered by a heavy duty rechargeable 12 volt DC battery, this vacuum lifter delivers the same performance as ANVER’s standard electric models without trailing power cords, extension cables, or festooned electrical systems on the crane.
The battery powered Vac-Pack mounts directly to hundreds of ANVER pad attachments and lifting frames, giving facilities a portable, truly cordless vacuum lifting solution for outdoor jobsites, mobile crane operations, remote warehouse areas, and any overhead lifting point where running AC power to the hook is impractical or cost-prohibitive.
How the Self-Cycling Operation Works
ANVER’s battery powered vacuum lifter features an electric self-cycling operation that automates the entire attach-and-release process. When the unit is lowered onto a load and the suspension chain slackens, the full weight of the lifter rests on the material and an internal switch automatically starts the vacuum attachment process. Once the proper vacuum level is achieved, a green indicator light illuminates to confirm it is safe to lift.
When the operator is ready to release the load, lowering the unit until the chain goes slack again triggers the automatic release process. Once vacuum is fully released, the operator raises the unit with the hoist controls and the system is ready for the next cycle. This hands-free attach-and-release workflow speeds up cycle times and reduces operator decision-making during repetitive lifts.
Features and Benefits
The ANVER battery powered Vac-Pack vacuum generator is built for demanding industrial use with a focus on uptime, safety, and zero-downtime battery management. Key features include:
- Rechargeable 12V DC, 12 amp hour sealed AGM battery — provides full 8-hour shift operation in many applications
- Two interchangeable, plug-in control styles: radio controlled (3-button attach/release/interlock transmitter) or pendant controlled (2-button attach/release with 10 ft. coiled cord)
- Solid-state vacuum control module combining all vacuum pump functions, safety lights, and audible vacuum leakage warning system in one rugged unit
- Energy saver technology — vacuum-controlled switch shuts off the pump when the pre-set vacuum level is reached, reducing wear and extending battery life
- Vacuum check valve and reservoir to maintain vacuum if power is interrupted for safe handling of non-porous loads
- Digital vacuum gauges mounted on the front cover for continuous operator monitoring
- Battery charge level gauge with hour meter
- Ergonomic adjustable front handlebar for safe load maneuvering without touching the load
- Easily accessible dual high-capacity vacuum filters mounted on the front handlebar for routine inspection
- Quick-disconnect fittings for easy maintenance and component replacement
- Standard frame rated to 2,200 lbs. on 3×3 beams; heavy duty frame rated to 4,400 lbs. on 3×6 beams
Battery Management and Zero Downtime
ANVER recommends purchasing a spare battery and charger with every battery powered vacuum lifter. While one battery powers the lifter on the production floor, the spare charges on standard 115V AC power using the available smart charger. Swapping batteries takes minutes, ensuring the vacuum lifter stays in service through an entire shift without waiting for a recharge. The plug-in battery design makes field replacement straightforward with no special tools required.
Applications
The battery powered vacuum lifter is the right choice whenever AC power is not readily accessible at the lifting point. Common applications include outdoor construction and jobsite material handling where permanent electrical infrastructure does not exist, mobile crane operations that move between locations, warehouse areas serviced by jib cranes without festooned power, loading docks and staging areas away from electrical panels, and any facility where the cost of running electrical service to the crane hook exceeds the cost of battery power.
This Vac-Pack generator mounts to the same pad attachments and lifting frames used by ANVER’s AC-powered models. Facilities that already use ANVER electric vacuum lifters can add a battery powered unit to their fleet and share the same pads, beams, and frames across both systems.
Selection Assistance
Configuring a battery powered vacuum lifter starts with the same application evaluation as any ANVER system — define the material, weight, dimensions, and surface type. Barron Equipment’s team then helps select the right Vac-Pack generator frame (standard or heavy duty), control style (radio or pendant), and pad configuration for your application.
For applications where AC power is available and preferred, Barron carries the full ANVER electric powered vacuum lifter line as well as the Caldwell UNIVAC product family. Our team can help determine whether battery, electric, air-powered, or mechanical vacuum lifting is the best fit.
Contact Barron Equipment to request a quote or discuss a battery powered vacuum lifting solution for your operation.
