Overview

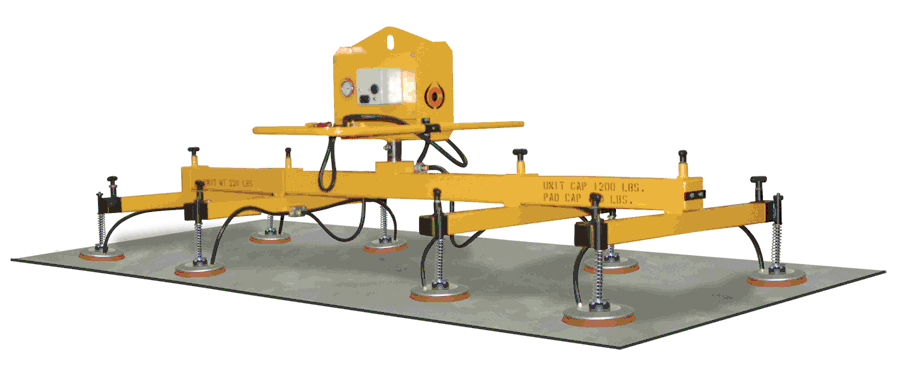

Barron Equipment carries the Caldwell Standard Duty Vacuum Lift with four crossarms and 8 to 12 vacuum pads — an economical multi-pad lifting solution for operations that handle oversized, heavy, or thin flat materials at moderate frequency. This wide-span vacuum lift system provides the maximum suction footprint available in the Caldwell UNIVAC line without the added cost of a heavy duty rating.
Four crossarms distribute 8 to 12 pads across load beams ranging from 6 ft. to 20 ft., delivering broad, even vacuum coverage for the largest sheet goods, panels, and plate stock. For facilities that need to move big materials but do not run continuous high-volume production cycles, this standard duty quad crossarm configuration offers a strong balance of performance and value.
When a Standard Duty Quad Crossarm Configuration Is the Right Choice
The quad crossarm layout is designed for materials that are too long, too wide, or too flexible for 4-pad or 6-pad vacuum lifters. Adding a fourth crossarm and up to 12 pads creates the widest possible suction coverage, keeping large materials flat and stable during every lift. The standard duty rating makes this level of coverage accessible to operations that handle these materials at moderate cycle rates rather than continuous production.
This is an important distinction for metal service centers, building material suppliers, and general fabrication shops that process oversized stock regularly — but not at the sustained pace that requires heavy duty reinforcement. The standard duty quad crossarm vacuum lift delivers the same multi-pad stability in a lighter, more cost-effective configuration.
Features and Benefits
This standard duty quad crossarm vacuum lift is built with the same proven component technology used across the Caldwell UNIVAC product line. Key features include:
- 8 to 12 ball-mounted vacuum pads that adjust to slight surface irregularities for a secure grip across the full span of the load
- Brass fittings throughout the vacuum circuit for long-lasting corrosion resistance
- Push-lock hose rated for 250 psi, providing dependable vacuum retention during lifts
- Slide valves on each pad for manual isolation, letting operators activate 8, 10, or 12 pads based on material size and weight
- Spin-on muffler and filter that can be swapped out quickly without tools
- Standard load beam lengths of 6 ft., 8 ft., 10 ft., 12 ft., 15 ft., and 20 ft. — contact Barron for custom sizes
- Crossarm beam options of 3 ft., 4 ft., and 5 ft. to match material width
Both electric and shop air (venturi) power options are available on select models, allowing the system to integrate with your facility's existing power infrastructure.
Applications
The standard duty quad crossarm vacuum lift is well suited for industries that handle large-format flat materials on a regular but moderate-volume basis. Common applications include metal service centers processing wide plate and sheet stock, building material warehouses moving oversized drywall, insulation board, or cement panels, woodworking and millwork operations handling large composite or laminate sheets, and glass suppliers working with architectural or commercial glazing panels.
This wide-span vacuum lift connects to overhead bridge cranes, gantry cranes, and heavy-duty jib crane systems through a standard hook. With beam lengths reaching 20 ft. and crossarm options up to 5 ft. wide, it addresses the large-format material handling tasks that shorter-span or fewer-pad configurations cannot safely support.
Standard Duty vs. Heavy Duty — Choosing the Right Rating
Barron Equipment carries both the standard duty and heavy duty versions of the quad crossarm 8-12 pad vacuum lift. The standard duty model is the right fit for facilities that process oversized materials at moderate frequency and do not require the reinforced beam construction and higher-capacity power units found on the heavy duty version.
For operations running continuous production cycles with heavy plate stock in the multi-ton range, or working in harsh environments that demand maximum structural reinforcement, the heavy duty version provides the additional capacity and durability needed. Barron's team can evaluate your material weights, cycle rates, and facility conditions to recommend the right rating for your application.
Selection Assistance
Configuring the right standard duty quad crossarm vacuum lift requires evaluating your material dimensions, load weight, surface characteristics, crossarm span requirements, and available power source. Barron Equipment works with each customer to identify the correct model number, pad count, beam length, crossarm size, and power configuration.
The slide valve system provides flexibility to run 8, 10, or 12 active pads without changing equipment — a significant advantage in facilities that handle a mix of sheet sizes and weights throughout the day. For applications that do not require the full span of the quad crossarm system, Barron also carries twin crossarm (4-pad) and triple crossarm (6-pad) models in both standard and heavy duty ratings.
Request a quote from Barron Equipment to get started, or contact our team to discuss the best large-format vacuum lifting solution for your facility.
