Overview

Barron Equipment carries the ANVER VT Ergonomic Vacuum Tube Lifter — a vacuum lift assist system designed to eliminate manual lifting from repetitive pick-and-place operations. This ergonomic lifting device uses vacuum suction to grab, support, lift, and lower loads up to 300 lbs. without a hoist, controlled entirely by a single operator through an intuitive handle. The result is faster cycle times, reduced physical strain, and fewer workplace injuries on production and packaging lines.

Unlike crane-mounted vacuum lifters that handle heavy loads overhead, the VT vacuum tube lifter is an operator-level system. The worker stands at the station, grips the handle, and positions loads by hand — the vacuum does the heavy lifting. This makes it ideal for high-repetition tasks where workers would otherwise be bending, twisting, and manually lifting materials hundreds of times per shift.

Two Control Styles for Different Work Environments

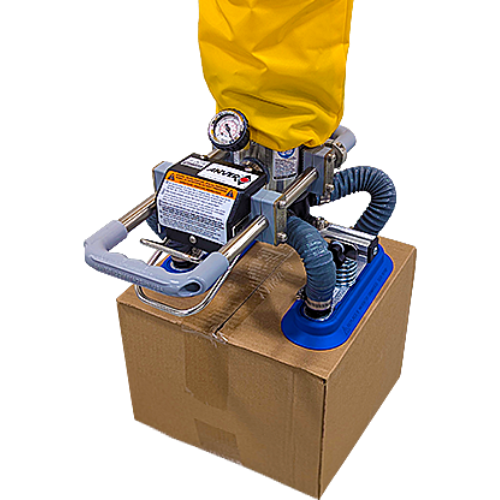

ANVER offers two VT vacuum tube lifter configurations to match your workspace and workflow. The Standard VT features a control handle designed for one or two-hand operation, with a vacuum gauge to monitor vacuum levels and a wide range of available accessories. This configuration works well for general material handling tasks where versatility and visibility are priorities.

The Pistol Grip VT features a smaller footprint for tight spaces and is ideal for pick and pack operations. Its upright wrist orientation allows greater precision, with single-hand controls that work for both left and right-handed operators. The pistol grip model also provides 360-degree pad rotation and 90-degree tilt capability, allowing operators to pick from the top or side of a load and position it with full rotational flexibility.

Features and Benefits

The ANVER VT vacuum tube lifter is built around ergonomic design, operator safety, and industrial durability. Key features include:

Ergonomic control handle activated by a natural grasping motion — no unnatural wrist twisting or finger straining required
Easily adjustable no-load and load height settings for precise, repeatable positioning throughout a shift
Vacuum gauge on the control head for real-time monitoring of vacuum levels during operation
Conical flow valve for smooth, precise vacuum control across a wide range of load weights
Power loss safety check valve that slowly lowers the load if power to the vacuum pump is interrupted
360-degree rotation via a stainless steel top swivel with vacuum-tight sealed bearing
FDA approved food service safe construction — stainless steel, anodized aluminum, and nylon components suitable for washdown environments
Field-upgradeable to larger sizes using available adapters without replacing the entire system
Remotely connected high-efficiency vacuum pump — electric and air-powered models available

Applications

The vacuum tube lifter is used across industries where workers perform repetitive lifting tasks throughout the day. Common applications include picking and placing boxes, cartons, and cases on packaging lines, stacking and unstacking bags, sacks, and bundles in food processing and distribution, loading and unloading panels, boards, and sheet goods in woodworking and manufacturing, positioning parts and components between workstations in assembly operations, and handling glass, plastic, and metal sheets in fabrication environments.

The VT system mounts to jib cranes, overhead cranes, gantry systems, or floor-standing support structures. The remotely located vacuum pump connects to the lifting tube via a vacuum hose, keeping the operator’s work area uncluttered and the system lightweight at the point of use.

Selection Assistance

Configuring a vacuum tube lifter starts with defining your load — weight, dimensions, surface type, and how it needs to be oriented during pickup and placement. Barron Equipment’s team can help determine the right tube size, pad attachment, control style (standard or pistol grip), and power source (electric or air) for your application.

For heavier loads that exceed the VT system’s capacity or require crane-mounted overhead lifting, Barron carries the full ANVER vacuum lifter line as well as the Caldwell UNIVAC product family. Our team can help identify the right vacuum lifting solution regardless of load weight or application complexity.

Contact Barron Equipment to request a quote or discuss the right vacuum tube lifter for your operation.

FAQs

What is the maximum lifting capacity of the VT vacuum tube lifter?

The ANVER VT vacuum tube lifter handles loads up to 300 lbs. Capacity depends on the tube size, pad configuration, and material surface characteristics. Contact Barron for help sizing your specific application.

What is the difference between the Standard VT and Pistol Grip VT?

The Standard VT uses a control handle for one or two-hand operation and is versatile for general material handling. The Pistol Grip VT has a smaller footprint, single-hand controls, 360-degree pad rotation, and 90-degree tilt — making it ideal for pick-and-pack operations in tight spaces.

Is this system safe for food processing environments?

Yes. The VT vacuum tube lifter uses FDA approved food service safe materials including electro-polished stainless steel, anodized aluminum, and nylon. It is suitable for washdown and food service applications.

What happens if power is lost while a load is suspended?

A power loss safety check valve built into the 360-degree top swivel slowly lowers the load if power supply to the vacuum pump is interrupted. This prevents sudden drops and protects both the operator and the load.

Can an existing VT system be upgraded to handle heavier loads?

Yes. Using available adapters, existing ANVER VT vacuum tube lifting systems can be upgraded to larger sizes in the field without replacing the entire unit.
