Overview

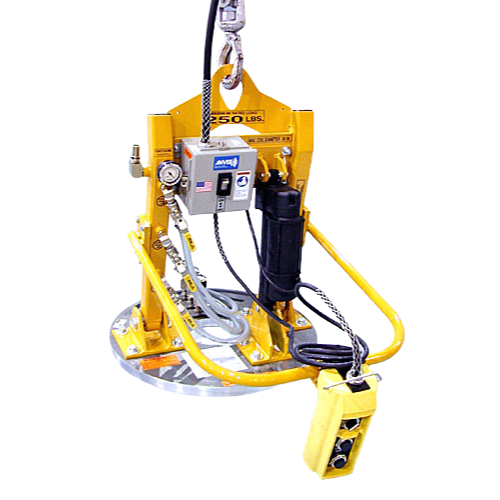

Barron Equipment carries the ANVER vacuum coil lifter and roll lifter line — specialized vacuum lifting systems designed for damage-free handling of cylindrical loads. ANVER’s vacuum coil lifters and roll lifters are designed for handling all types of metal, film, paper, or plastic coils and rolls in both the horizontal and vertical positions. Multi-chambered adjustable vacuum attachment heads are able to handle loads with differing diameters and weights, making these lifters extremely versatile. Unlike mechanical lifts and grabs, these vacuum lifters leave no damage or marks on the coils.
Where traditional coil handling methods use C-hooks, tongs, or mechanical grabs that clamp onto or insert into the coil, vacuum lifting grips the outer surface without any contact pressure, insertion, or mechanical clamping. This eliminates the edge damage, bore deformation, and surface marking that mechanical methods cause — particularly on sensitive materials like aluminum, copper, and coated steel coils where cosmetic quality matters to the end customer.
Why Vacuum Lifting for Coils and Rolls
Mechanical coil lifting devices grip by clamping, inserting an expanding mandrel into the bore, or hooking the coil from below. Each of these methods applies concentrated force to a small contact area, which can deform the inner bore, dent edges, or leave marks on the outer wrap. For commodity steel coils, this is often acceptable. For precision metals, finished surfaces, paper rolls, and film stock, it is not.
Vacuum coil lifters distribute the holding force evenly across the curved outer surface of the coil using multi-chambered vacuum pads that conform to the cylindrical shape. The result is zero marks, zero bore contact, and zero edge damage — regardless of the coil material. This makes vacuum lifting the preferred method for any coil or roll where surface condition is critical to product quality.
Multi-Chambered Adjustable Design
One of the most practical advantages of ANVER’s vacuum coil lifters is the multi-chambered, adjustable vacuum attachment head. Rather than a single pad sized for one specific coil diameter, the multi-zone design allows one lifter to grip coils across a range of outer diameters and weights. Each chamber maintains independent vacuum, so the pad conforms to the coil’s curvature and maintains a reliable seal even when switching between different coil sizes throughout a shift.
ANVER offers coil lifter configurations ranging from single-zone units for consistent coil sizes up to six-zone systems for operations that handle a wide variety of diameters. The number of zones, pad curvature, and overall size are matched to your specific coil profile during the configuration process.
Features and Benefits
ANVER vacuum coil lifters and roll lifters are engineered for production environments where coils move continuously between storage, processing, and shipping. Key features include:
- Multi-chambered adjustable vacuum attachment heads that accommodate varying coil diameters and weights
- Capacities up to 40,000 lbs. for heavy steel and aluminum coil handling
- Horizontal and vertical lifting capability for both eye-to-the-sky and eye-to-the-side coil orientations
- Powered tilt available on select models for repositioning coils between horizontal and vertical positions in the air
- Air powered and electric powered models to match your facility infrastructure
- Complete systems or standalone vacuum attachments for integration with existing crane-based or automatic pick-and-place systems
- Damage-free, mark-free handling that preserves coil surface quality and eliminates bore deformation
- Configurations for aluminum, steel, stainless steel, copper, brass, paper, film, plastic, and label stock
Applications
ANVER vacuum coil lifters serve steel service centers, aluminum processors, metal stamping operations, printing and converting facilities, packaging plants, and any operation that handles coiled or rolled material overhead. Common applications include transferring metal coils between storage racks and uncoiler feeds, loading and unloading paper rolls at press stations, handling film and plastic rolls in converting and packaging lines, moving copper and brass coils between processing steps in metal fabrication, and lifting label stock rolls onto and off of labeling equipment.
These lifters connect to overhead cranes, gantry systems, and automated material handling equipment. For facilities that also need ground-level coil handling, Barron carries Southworth coil transfer cars and coil handling equipment that complement overhead vacuum coil lifting.
Selection Assistance
Configuring a vacuum coil lifter requires more application detail than a flat-surface vacuum lifter. Some key items to be considered when choosing a vacuum coil lifter are: weight of the load, type and thickness of material, thickness of coils, sizes of inner cores and their outer diameters, number of chambers needed, position of eye or center, power available, and control method.【1-abc】
Barron Equipment’s team works with ANVER’s applications engineers to configure each coil lifter to your specific coil profiles. Whether you handle a single coil size consistently or a wide range of diameters and materials, the multi-zone adjustable design can be tailored to your operation.
Contact Barron Equipment to request a quote or discuss a vacuum coil lifting solution for your facility.
