Overview

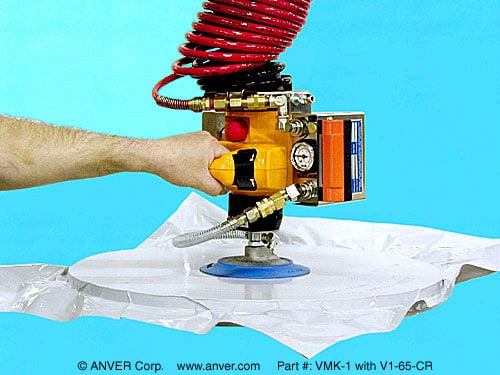

Barron Equipment carries the ANVER air powered vacuum lifter with single pad attachment — a compressed air operated vacuum lifting system designed for facilities that have shop air available but prefer not to run electrical power to the crane hook. This below-the-hook vacuum lifter uses a single-stage venturi vacuum generator powered entirely by standard dry, clean compressed air at 90 PSI. There are no electric motors, no power cords, and no moving parts in the vacuum pump, making this one of the lowest-maintenance vacuum lifting configurations available.
The single pad attachment is the simplest and most compact vacuum lifter configuration, ideal for handling flat, non-porous materials where one centered suction point provides adequate grip. For loads that require multiple contact points or larger surface coverage, ANVER offers multi-pad frames and lifting beams that pair with the same air powered vacuum generator.
Features and Benefits
The ANVER VPF-57-AIR Series vacuum generator at the heart of this system is built for demanding production environments where reliability and low maintenance are top priorities. Key features include:
- Compressed air powered vacuum generator with no moving parts — no electric motors, switches, or rubber gaskets to maintain or replace
- Operates on standard dry, clean shop air at 90 PSI with 3/8 in. NPT connection
- Energy air saver technology shuts off compressed air flow when the pre-set vacuum level is reached, minimizing air consumption
- Vacuum leakage sensor and warning system with LCD digital display, audible horn, and red warning light — alerts the operator if vacuum levels drop during a lift
- Front-mounted air pressure and vacuum indicator gauges for continuous operator monitoring
- Slide control valve with push-button safety lock mounted on an ergonomic adjustable front handlebar
- Vacuum check valve and reservoir to maintain vacuum if compressed air supply is interrupted
- Standard frame rated to 2,200 lbs. on 3x3 in. beams; heavy duty frame rated to 4,400 lbs. on 3x6 in. beams
- Fully welded frame construction with vacuum reservoir, lifting bail, and beam mounting hardware
- Dual high-capacity vacuum filters with front-mounted view port for easy routine inspection
- Interchangeable pad attachments — swap between single pad, multi-pad, and custom configurations on the same generator
Why Air Powered Over Electric
Air powered vacuum lifters are the preferred choice for facilities that already have compressed air lines running to the crane or work area. Because the vacuum generator runs on shop air rather than electricity, there is no need for festooned power drops, trailing power cords, or electrical connections at the hook. This simplifies installation, eliminates electrical hazards in wet or wash-down environments, and removes the risk of motor burnout in dusty conditions.
The venturi vacuum generator has no moving internal parts, which means there are no wear components in the pump itself. Maintenance is limited to periodic filter cleaning and vacuum pad inspection — a significant advantage over electric-motor-driven systems in high-cycle production environments where downtime costs are measured by the hour.
Applications
The air powered vacuum lifter with single pad handles flat, non-porous materials in a wide range of material handling and manufacturing settings. Common applications include lifting and positioning steel sheet and plate at cutting tables, press brakes, and laser machines, handling aluminum and stainless steel panels in fabrication and finishing operations, picking and placing plastic sheet, composite panels, and laminated boards, moving glass panels and insulated glazing units in window and door manufacturing, and handling plastic-wrapped film rolls and packaged goods in distribution and packaging operations.
The single pad configuration keeps the lifter compact and lightweight, making it well suited for applications where headroom is limited or where loads are uniform in size and centered on the pad. For irregularly shaped loads, oversized panels, or materials that require multiple support points, Barron can configure this same air powered generator with multi-pad frames or custom lifting beams.
Selection Assistance
Choosing the right configuration starts with your material type, load weight, surface condition, and available compressed air supply. The air powered generator requires clean, dry shop air at 90 PSI. Air supply flow capacity (CFM) can affect performance, so confirming your compressor output is an important step before ordering.
ANVER offers three air powered generator models with different vacuum flow rates to match smooth non-porous surfaces, rough semi-porous surfaces, or high-flow specialty applications. Barron Equipment's team can help determine which generator model and pad size are right for your material and production requirements.
For facilities without compressed air, Barron carries ANVER electric powered and battery powered vacuum lifters as alternative power sources. All ANVER Vac-Pack generators use standard mounting designs, so pads and frames are interchangeable across power types.
Contact Barron Equipment to request a quote or discuss an air powered vacuum lifting solution for your operation.
