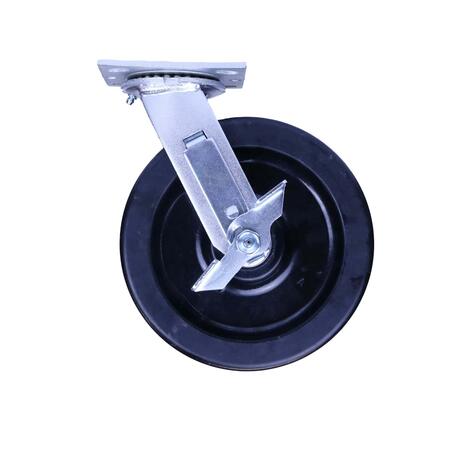

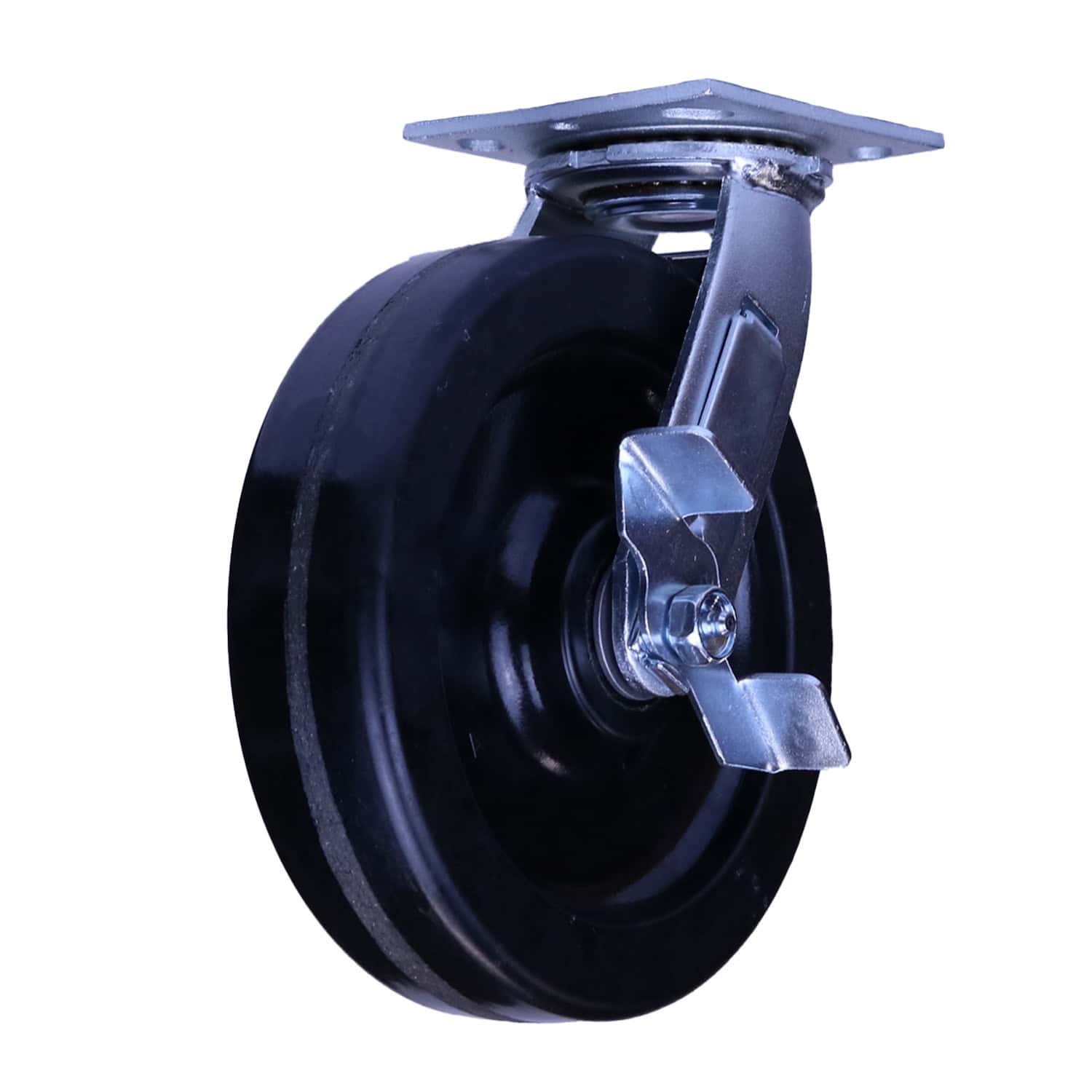

8 Inch Industrial Swivel Caster with Phenolic Wheel and Top Lock Brake
360 8 Inch Industrial Swivel Caster with Phenolic Wheel and Top Lock Brake

8 Inch Industrial Swivel Caster with Phenolic Wheel and Top Lock Brake

Item ID: 40.82.50.PHR.TB Categories ,

Phenolic Wheel
Roller Bearing
1,200 lbs. Capacity
Overall Height 9-1/2in
Overall Top Plate 4in x 4-1/2in
Bolt Hole 2-5/8in – 3in x 3in – 3-5/8in
Top Lock Brake

$36.70

SKU40.82.50.PHR.TB
Wheel Diameter8 InchesWeight Capacity1250 Lbs
Wheel Width2 InchesTread StyleFlat Tread
Overall Height9-1/2 InchesWheel MaterialPhenolic
Core MaterialAluminumBearing TypeRoller Bearing
Caster TypeSwivelMounting TypeTop Plate
Top Plate 4 Inches x 4-1/2 InchesAxle TypeZerk Axle
Top Plate Holes 2-5/8 Inches - 3 Inches x 3 Inches - 3-5/8 InchesFork FinishZinc Plated

Overview

This industrial swivel caster has a wheel diameter of 8 inches and is ideal for everyday use types of applications. This swivel caster also includes a Top Lock Brake, is cost effective and is overall a fantastic, economical choice.

Benefits

The main benefit of the industrial series casters is that they are cost effective and they improve ergonomics wherever industrial caster applications are necessary. In addition to benefits of the overall industrial caster category, phenolic wheels have their own benefits such as being resistant to oil, grease, gasoline and mild acids.



This locking caster allows for more safety and stability. The main benefit of using a Top Lock Brake as opposed to other caster brake types is that the activation pedal is mounted to the side of the caster instead of the back of the caster, allowing for a smaller swivel radius, making this brake an ideal option for applications in tight spaces. For more information about our caster wheel brake options, check out our blog post - Braking Ground: A Comprehensive Guide to Diverse Industrial Caster Brake Types

Applications

Applications for casters with phenolic wheels include waste bins, platform trucks, job boxes in bakeries and woodworking facilities. Click here to learn more about our phenolic wheels.

If your business requires a heavy duty swivel caster solution, as opposed to an economical solution, you will want to review our Heavy Duty Kingpinless Casters category.

Selection Assistance

Not sure which caster would work best for your application? Check out this blog post to learn how to select the best caster for your application. For further assistance, we have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and a Barron caster representative will be in touch soon!

Product Specification

Wheel Diameter

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Width

Wheel Brakes

Weight Capacity

Application

Bearing Type

Roller Bearing

Overall Height

9-1/2in
