Overview

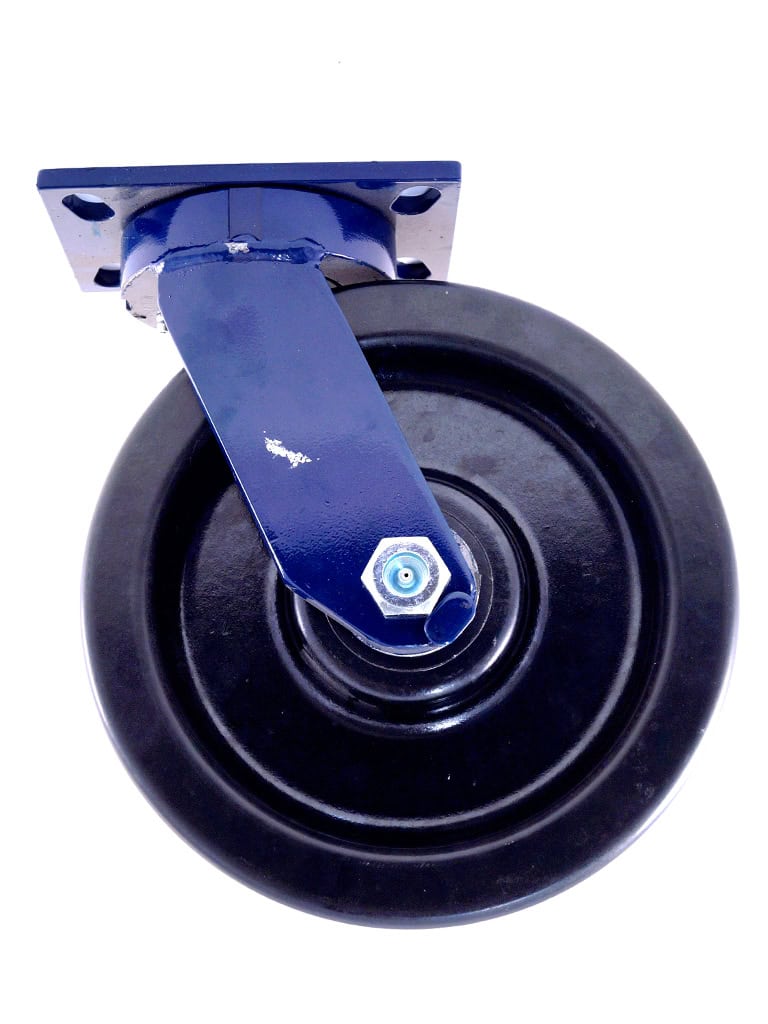

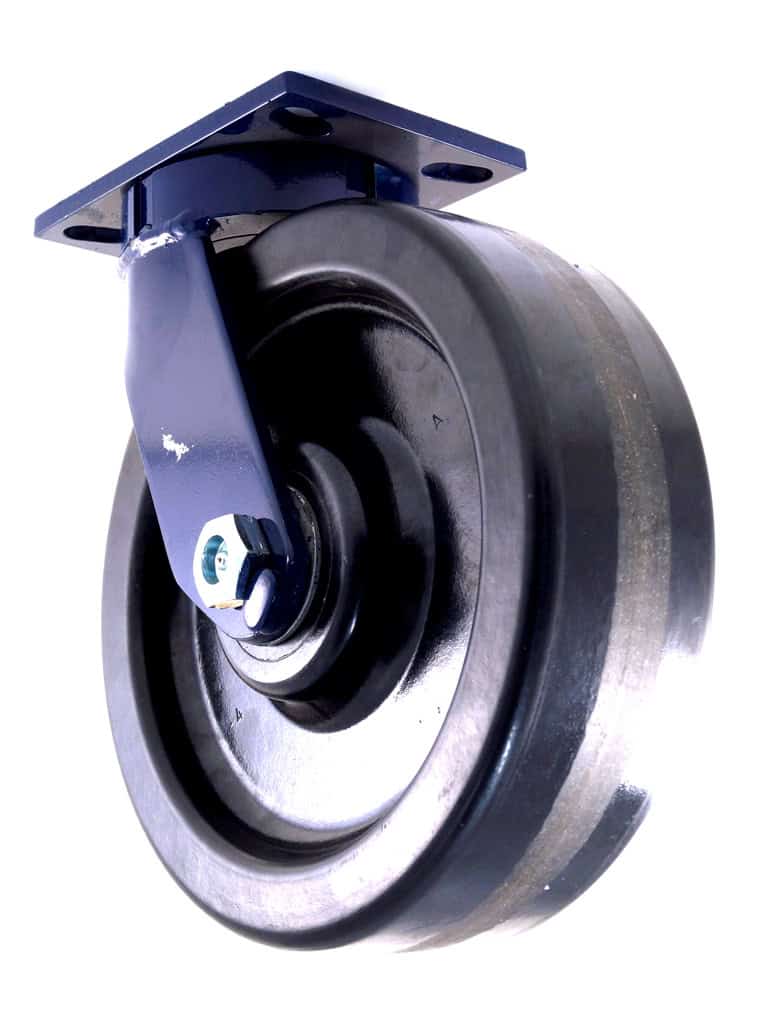

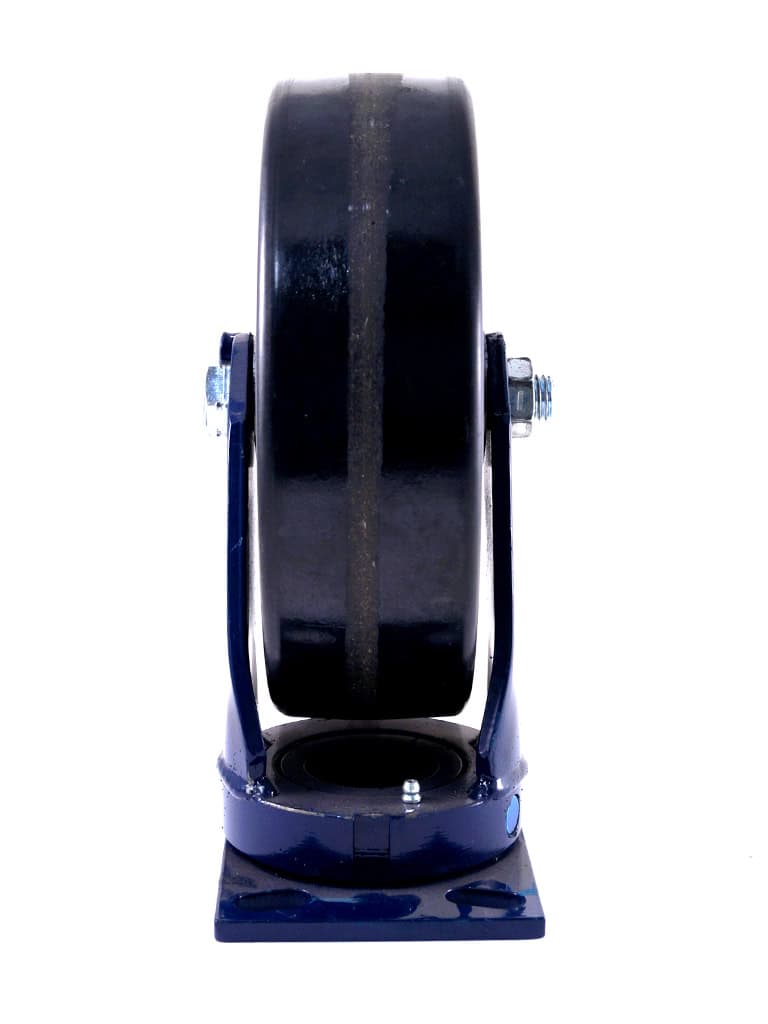

The Series 70 kingpinless swivel caster with a 10-inch diameter phenolic wheel and roller bearing is engineered for heavy-duty industrial applications where durability, stability, and high load capacity are essential. This caster is part of the 70 Series, which represents a heavier-duty version of the 60 and 61 Series, specifically designed for demanding manufacturing environments. The kingpinless design eliminates the risk of kingpin failure, making it ideal for rigorous use and towline applications. The phenolic wheel offers excellent resistance to oil, grease, gasoline, and mild acids, making it suitable for a wide range of industrial settings.
Benefits
- Heavy-duty kingpinless construction for superior strength and longevity in industrial environments.
- Kingpinless design provides enhanced durability, reduced maintenance, and eliminates the risk of kingpin failure.
- Phenolic wheels are resistant to chemicals, oil, and grease, and provide excellent weight capacity.
- Roller bearings ensure smooth operation and efficient mobility under heavy loads.
- Ideal for use in tandem with rigid casters for optimal maneuverability and directional stability.
- For smooth, debris-free floors, phenolic wheels offer excellent rollability and protect surfaces better than steel wheels, which can cause damage.
| SKU | 70.103.51.PHR | ||
|---|---|---|---|
| Wheel Diameter | 10 Inches | Weight Capacity | 2900 Lbs |
| Wheel Width | 3 Inches | Tread Style | Flat Tread |
| Overall Height | 11-1/2 Inches | Wheel Material | Phenolic |
| Core Material | Aluminium | Bearing Type | Roller Bearing |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Top Plate | 4-1/2in x 6-1/2in | Top Plate Holes | 2-7/16in – 3-3/8in x 4-15/16in – 5-1/4in |
Applications
- Waste bins
- Platform trucks
- Job boxes in bakeries and woodworking facilities
- Industrial carts and trucks requiring high load capacity and chemical resistance
These casters are especially well-suited for environments where heavy loads must be moved efficiently and where resistance to chemicals and oils is important. They are commonly used in manufacturing, warehousing, and material handling operations.
Selection Assistance
Not sure which caster would work best for your application? Check out this blog post to learn how to select the best caster for your application. For further assistance, we have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and a Barron caster representative will be in touch soon!
