| SKU | 70.103.55.SEB | 2D Drawing | 2D Drawing |
|---|---|---|---|
| Wheel Diameter | 10 Inches | Weight Capacity | 3500 Lbs |
| Wheel Width | 3 Inches | Tread Style | Radius Tread |
| Overall Height | 12-1/2 Inches | Wheel Material | Rubber |
| Core Material | Cast Iron | Bearing Type | Ball Bearing |
| Caster Type | Swivel | Mounting Type | Large Top Plate |
| Top Plate | 5-1/4 Inches x 7-1/4 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 3-3/8 Inches - 4-1/8 Inches x 5-1/4 Inches - 6-1/8 Inches | Fork Finish | Zinc Plated |
OverviewÂ

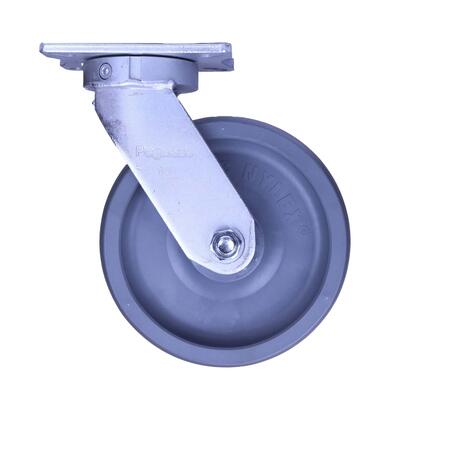

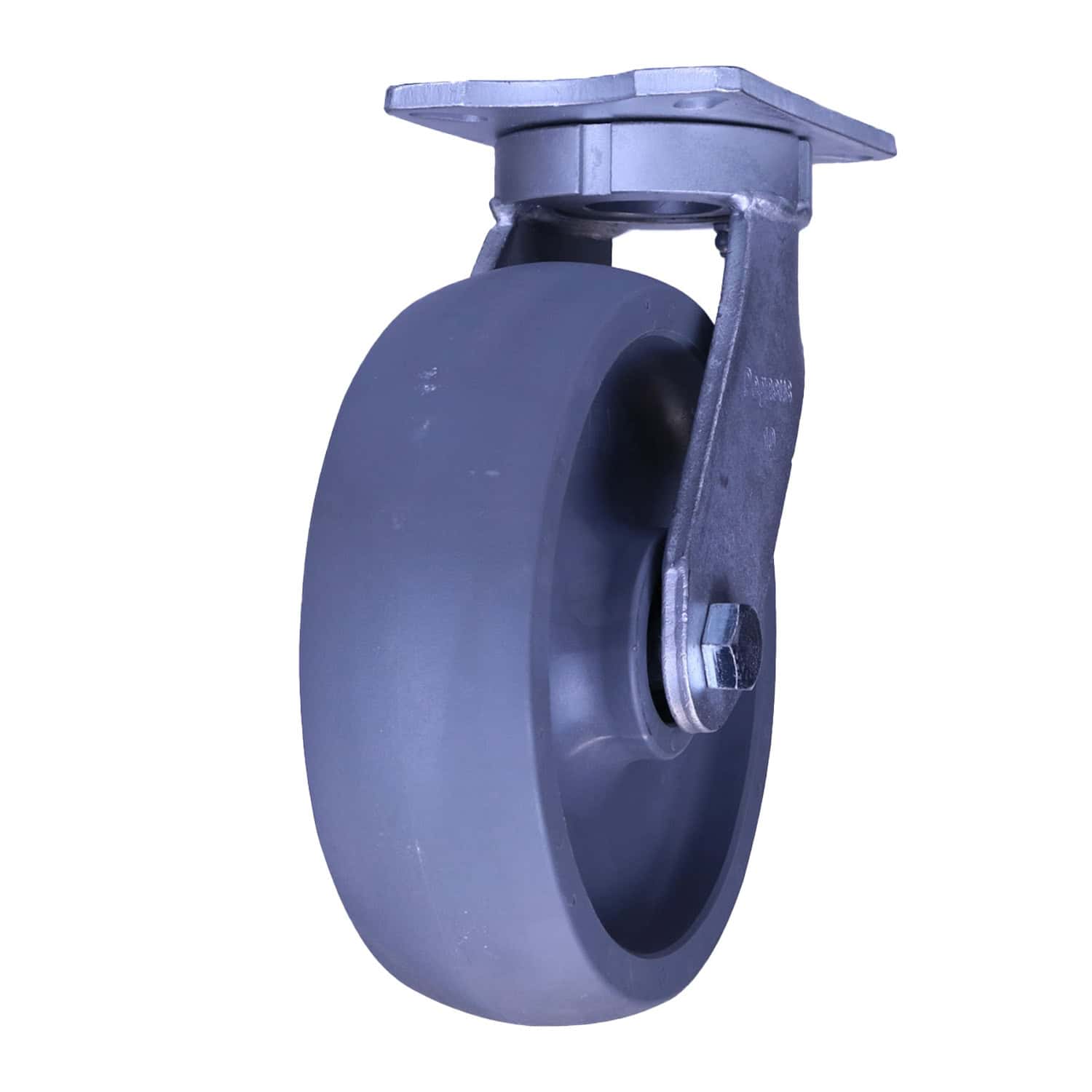

The 70 Series Heavy Duty Kingpinless Swivel Caster with Rubber Wheel (Item ID: 70.103.55.SEB) is designed for demanding industrial applications. This caster features a kingpinless design, which eliminates the weakest link found in traditional kingpin casters, ensuring exceptional performance and longevity. The rubber wheel provides excellent shock absorption and noise reduction, making it ideal for environments where both durability and quiet operation are required.Â
BenefitsÂ
- Heavy-Duty Construction: The kingpinless design enhances the caster's durability by eliminating the central kingpin, which is prone to failure under heavy loads and shock impacts. This design uses hardened steel inner and outer raceways, distributing the load to a single row of hardened ball bearings.Â
- Rubber Wheel: The rubber wheel offers superior shock absorption and noise reduction, making it suitable for environments where quiet operation is essential. It also provides good traction and floor protection.Â
- Sealed Ball Bearings: The ball bearings are sealed and pre-lubricated, providing better ergonomics and less maintenance.Â
ApplicationsÂ
This caster is ideal for various industrial applications, including:Â
- Industrial Manufacturing: Suitable for heavy-duty carts and equipment used in manufacturing settings.Â
- Automotive Industry: Perfect for use in automotive plants where heavy loads need to be moved quietly and efficiently.Â
- Food Service: Ideal for environments where noise reduction is crucial, such as food processing facilities.Â
- Material Handling: Excellent for use in warehouses and distribution centers.Â
- Aerospace Industry: Suitable for applications requiring durable and reliable casters.Â
Read our case study on Kinpinless Casters to see how a solar car club at Iowa State University utilized Barron casters to streamline their processes.
