Overview

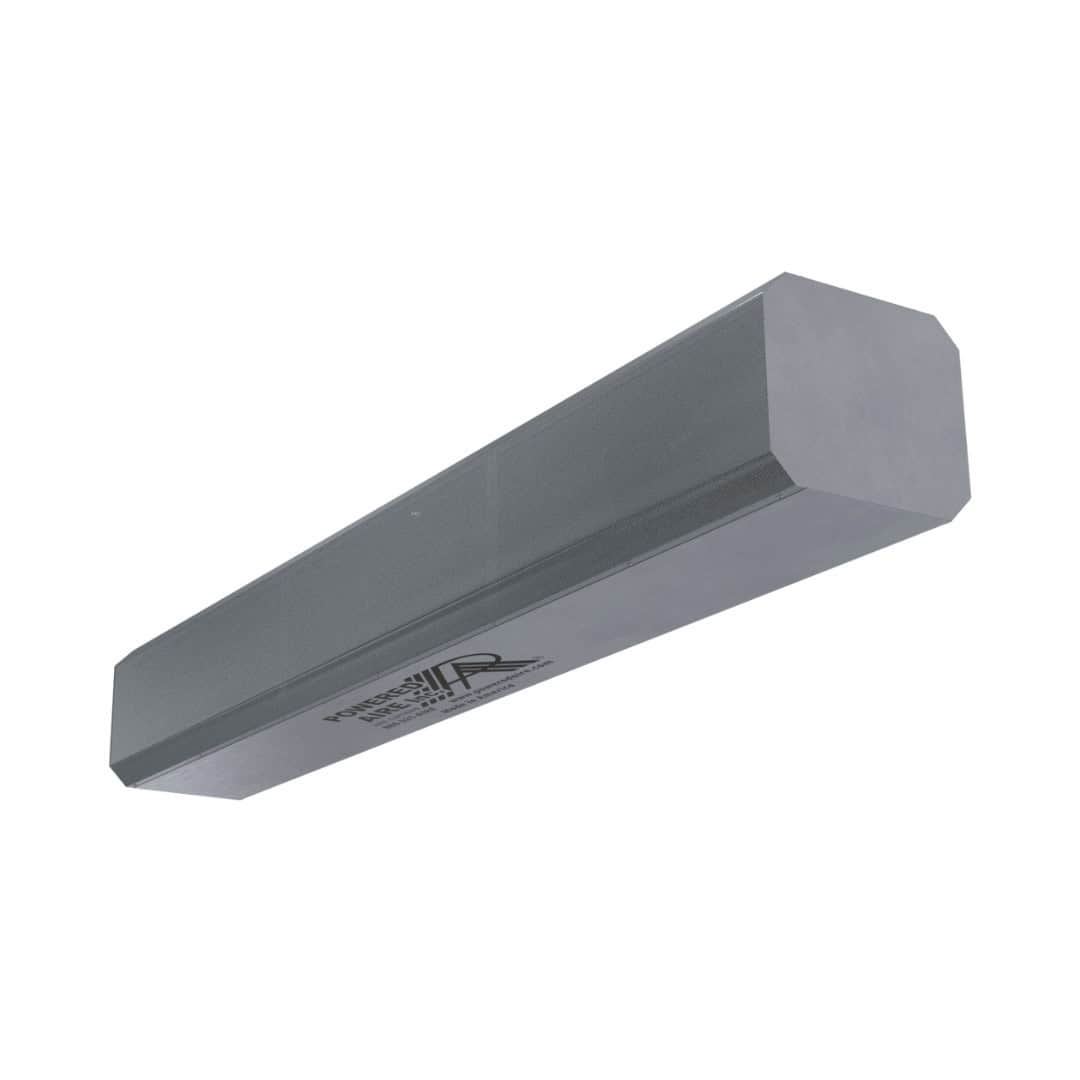

When it comes to maintaining interior spaces, most businesses focus on two factors: maintaining a consistent temperature and keeping them clean. Tackle both of those concerns with the help of a heated air curtain! Available in a range of sizes and perfect for a multitude of business types, our commercial air curtains create a warm and sanitary environment for your customers.
Features & Benefits
In addition to being a go-to method for keeping cold air from causing your energy costs to skyrocket, a commercial air curtain can prevent dust, debris, and flying insects from infiltrating your interiors. Our heated air curtains for overhead doors have certifications from the USDA, FDA, and AIB as an approved method for insect control.
Each of our air curtain heaters use galvanized fans to keep your spaces heated efficiently while avoiding long-term corrosion and deterioration. A set of heavy-duty single-speed motors ensure the stream of air remains potent and consistent. Construction-wise, 18-gauge 304 stainless steel is used for the unit and air intake screen, respectively. The motor plate can be removed from the unit as a whole piece, allowing for easy cleaning or replacement.
For more details on the specs of this electric air curtain, see the table below:
| SKU | Width (in.) | Height (in.) | Weight (lbs.) | Voltage/Phase | Number of Motors |
|---|---|---|---|---|---|
| BCT-3-108E-208/3 | 108 | 8 | 241 | 208/3 | 3 |
| BCT-3-108E-240/3 | 108 | 8 | 241 | 240/3 | 3 |
| BCT-3-108E-480/3 | 108 | 8 | 241 | 480/3 | 3 |
Applications
Industrial air curtains are suitable for all sorts of business types, including the following examples:
- Restaurants and food service
- Hospitals and medical facilities
- Warehouses and storage centers
- Grocery stores
- Office buildings
- Schools, hotels, libraries, etc.
Maintenance
Regularly tuning up and cleaning your air curtain is essential if you want to keep it firing on all cylinders. Here are some tips for keeping it in peak condition:
- Keep the return air screen and filter clean. The dustier the location, the more frequently you'll need to clean your air curtain.
- Make sure the discharge steering vanes are adjusted properly.
- Inspect the entire unit for signs of damage or deterioration.
- The included motors are permanently greased, so reapplying lubricant isn't necessary.
Power Requirements
All of our air doors offer a variety of voltage and phase combinations. Here are the combinations available for this specific SKU:
- 208 Voltage/3 Phase
- 240 Voltage/3 Phase
- 480 Voltage/3 Phase
Selection Assistance
If you have any additional questions or requests, please let us know. Fill out the form below and our product specialist will contact you shortly.
