Overview
Benefits

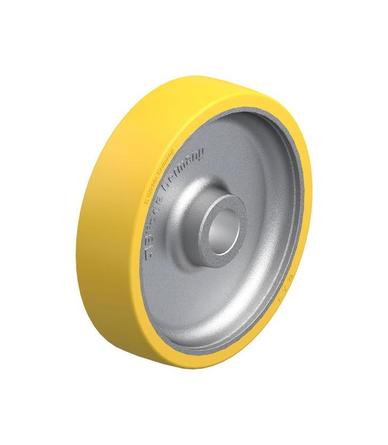

- High Load Capacity: The Blickle GTH 12x3/1.94-3.25G wheel can handle substantial loads, making it ideal for heavy-duty applications.
- Durability: Constructed with robust materials, this wheel is built to withstand rigorous use and harsh environments.
- Smooth Operation: The precision ball bearings ensure maintenance-free operation and smooth movement, reducing the effort required to move heavy loads.
- Floor Protection: The polyurethane wheel offers excellent floor protection, preventing damage to surfaces and reducing maintenance costs.
| SKU | GTH 12x3/1.94-3.25G | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 12 Inches | Maximum Temperature | 160 |
| Wheel Width | 3 inches | Wheel Material | Blickle Extrathane Polyurethane Elastomer |
| Hardness Rating | 92 Shore A | Bearing Type | Axle Bore |
| Core Material | Cast Iron | Weight Capacity | 5070 at 2.5 mph |
| Application | Heavy Duty |
Blickle Extrathane Polyurethane Wheels
Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.
Barron Equipment offers a full range of Extrathane wheel solutions, including:
- GTH Series: Cast iron wheel centers for rugged durability and high load capacity
- ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
- SETH & VSTH Series: Welded steel centers for extreme-duty applications
These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.
Check out the video below to learn more.
Applications
- Industrial carts and trolleys
- Heavy machinery and equipment
- Warehouse and distribution centers
- Manufacturing plants
