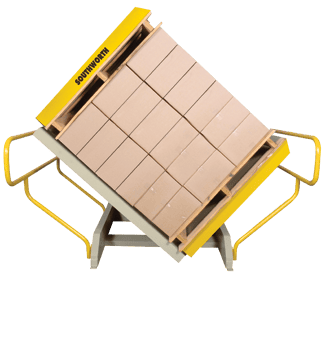

With the ability to handle pallet loads measuring up to 48" x 48" x 84" high, the Southworth PalletPal Pallet Rotator / Pallet Inverter is a simple, rugged machine designed to invert entire pallet loads. The pressure adjustable clamping mechanism easily secures loads up to 4,400 pounds and rotates them 180 degrees on a massive anti-friction turret bearing. The PalletPal Pallet Rotator / Pallet Inverter eliminates the need for manually restacking pallets.
Features
Models
- Replace broken pallets
- Switch loads to/from in-house or shipping pallets
- Transfer from pallets to slip sheets
- Replace damaged goods at the bottom of the load
- Invert and Entire Load in Just Seconds
- Faster, Safer and Easier than Manually Restacking
- Works with Loads up to 4400 Lbs.
- Adjustable Clamp Pressure
| Model | Load Capacity | Max. Clamp Opening |
Min. Clamp Clamp |
Max. Load Size w x d x h |
Shipping Weight | Budget Range |
|---|---|---|---|---|---|---|
| SR-44-60 | 4400 lbs | 60" | 30" | 48 x 48 x 60" | 3800 lbs | $29700 - $31700 |
| SR-44-72 | 4400 lbs | 72" | 42" | 48 x 48 x 72" | 4000 lbs | $34000 - $36000 |
| SR-44-84 | 4400 lbs | 84" | 54" | 48 x 48 x 84" | 4400lbs | $37400 - $39400 |
