Overview

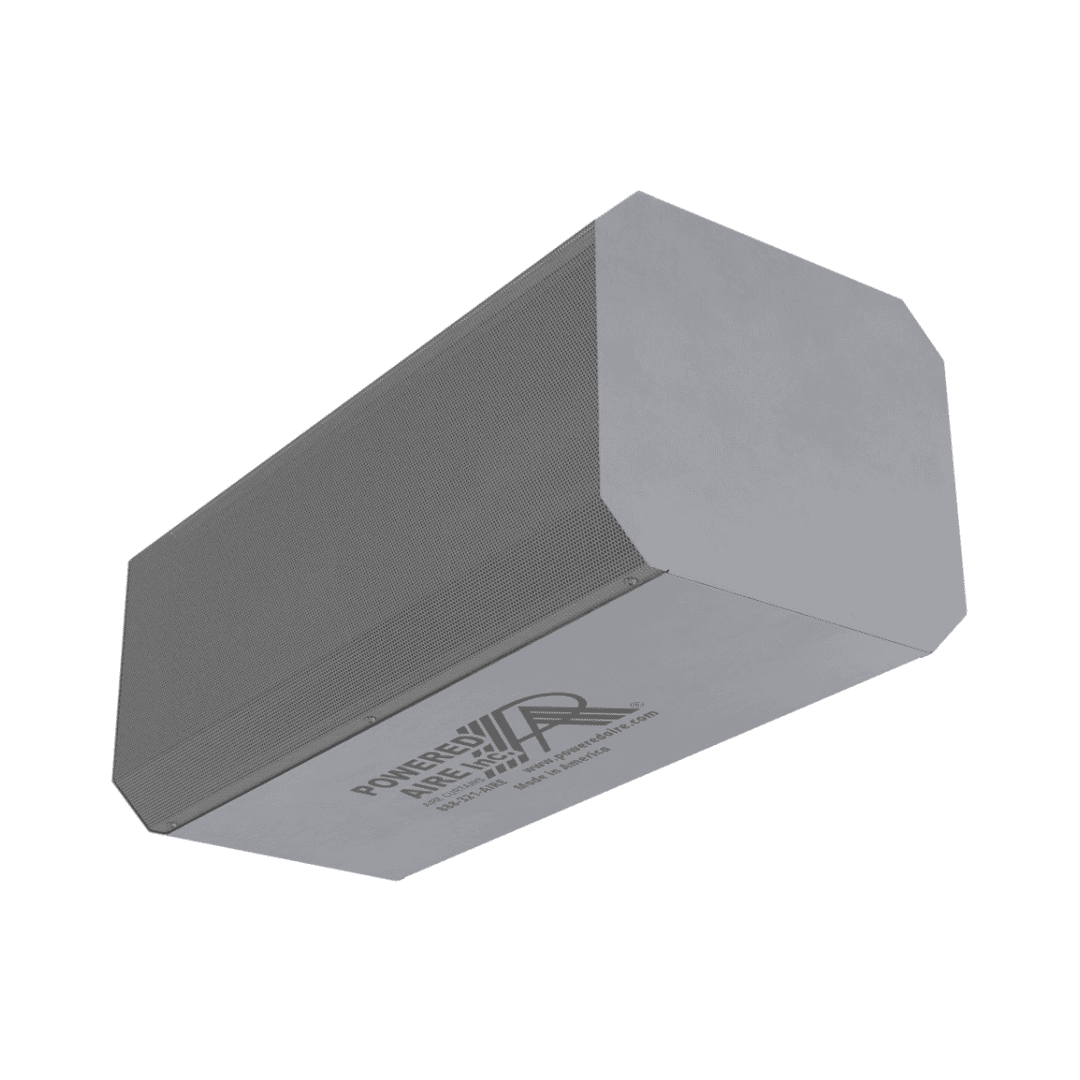

The Powered Aire BCE-1-36E Air Curtain Heater from Barron Equipment is an electric air curtain designed to prevent the infiltration of outside air, insects, dust, and debris. This 36-inch stainless steel unit creates an effective climate control barrier that decreases energy costs by keeping conditioned air inside while preventing outside air from entering through the door opening. With a maximum installation height of 11 feet, this unit is ideal for commercial applications where maintaining consistent temperatures and keeping dust and debris out is crucial.
Features and Benefits
This air curtain heater is manufactured from 18-gauge 304 stainless steel with a #3 finish for durability and aesthetic appeal. The unit features a 1/2 HP ODP (Open Drip Proof) direct-drive motor with dual-speed capability for flexible operation. Its high-efficiency discharge plenum includes an adjustable air foil vane (±20°) for optimal airflow direction.
Factory-mounted single-stage electric heaters rated at 10kW provide a temperature rise of 40°F, making this unit suitable for colder climates or applications requiring heated air barrier protection. This industrial air curtain maintains an average outlet velocity of 1074 FPM with an airflow rate of 795 CFM.
The unit's unique plenum design contributes to quiet operation, with a sound level of only 53 dBA when measured 10 feet from the unit. Additionally, our air doors meet requirements for vestibule exceptions according to ASHRAE 90.1 and IECC standards.
For more details on the specs of this air curtain, see the table below:
| SKU | Width (in.) | Height (in.) | Weight (lbs.) | Voltage/Phase | Number of Motors |
|---|---|---|---|---|---|
| BCE-1-36E-208/1 | 36 | 8 | 95 | 208/1 | 1 |
| BCE-1-36E-240/1 | 37 | 8 | 95 | 240/1 | 1 |
| BCE-1-36E-208/3 | 38 | 8 | 95 | 208/3 | 1 |
| BCE-1-36E-240/3 | 39 | 8 | 95 | 240/3 | 1 |
| BCE-1-36E-480/3 | 40 | 8 | 95 | 480/3 | 1 |
Applications
Our heated air curtains for overhead doors are ideal for a variety of commercial and industrial applications, including the following:
- Retail entryways and customer doors
- Restaurant and food service entrances
- Healthcare facility doorways
- Warehouses and distribution centers
- Cold storage doorways
- Manufacturing facilities
Maintenance
To maintain the longevity of your commercial air curtain, here are some steps you should be following:
- Inspect the stainless steel body for scratches or dents that might indicate internal damage.
- Ensure all motors are spinning properly. Fortunately, these single-phase motors are permanently lubricated and don't require new coats of grease.
- Clean the air intake screen regularly by removing it and flushing with hot water or steam, allowing it to dry completely before re-installation.
- Check that the discharge vanes remain properly adjusted at the factory preset position for optimal airflow direction. The unit comes with these vanes already adjusted for optimal performance but can be modified to accommodate specific environmental conditions if necessary.
Power Requirements
The BCE-1-36E is available in several voltage configurations:
- 208V/1-phase/60Hz: 25.4 Amp draw (requires 35A breaker)
- 240V/1-phase/60Hz: 43.1 Amp draw (requires 60A breaker)
- 208V/3-phase/60Hz: 29.2 Amp draw (requires 40A breaker)
- 240V/3-phase/60Hz: 25.5 Amp draw (requires 35A breaker)
- 480V/3-phase/60Hz: 12.7 Amp draw (requires 20A breaker)
Single point power connection is available for simplified installation. The unit weighs approximately 95 pounds and includes mounting hardware for wall or ceiling installation.
Selection Assistance
Our product specialists are here to help you decide what air curtain is best for you. Do you need assistance with finding the right one? Fill out the form at the bottom of this page and a product specialist will be in touch to help you soon.
