Overview

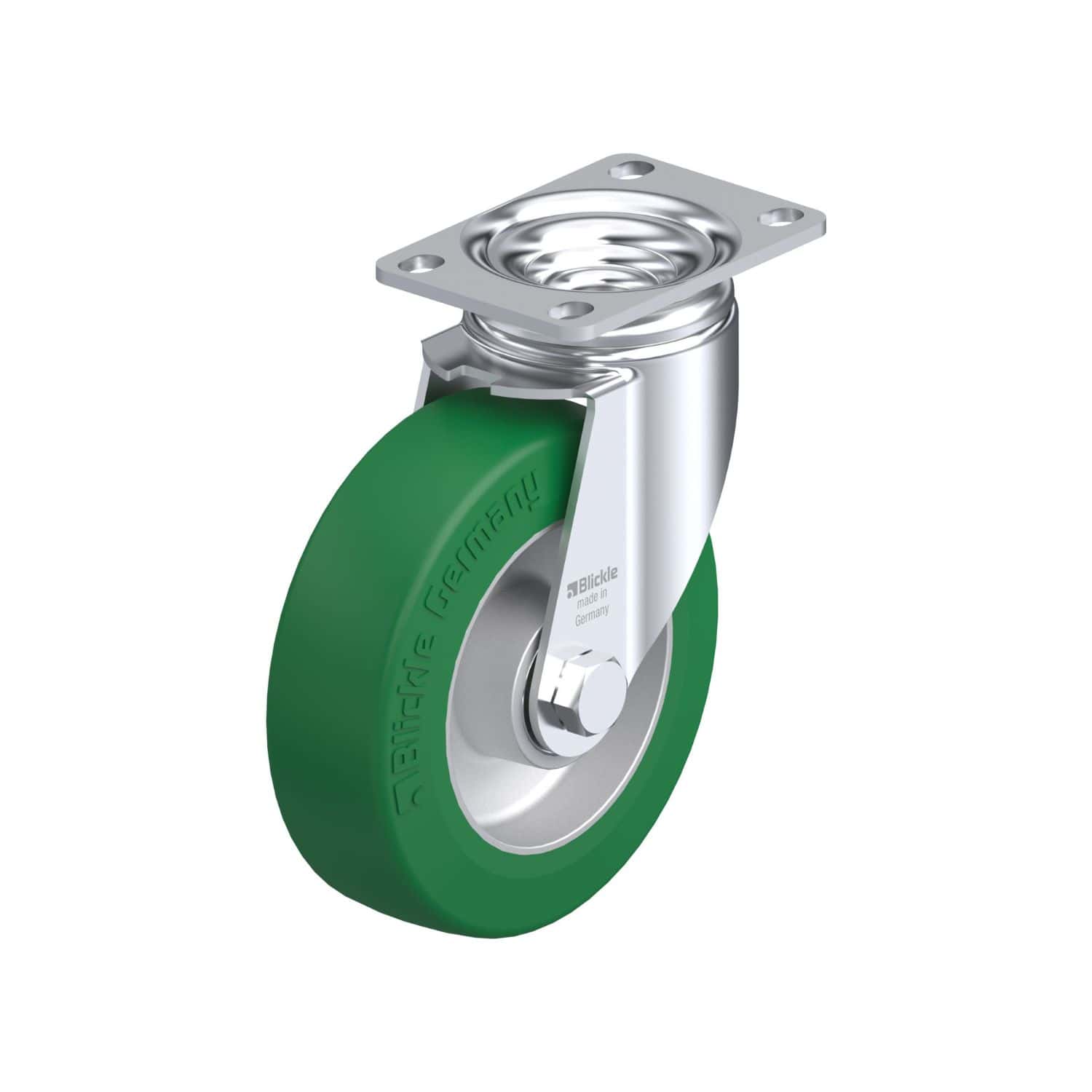

The Blickle L-ALST 125K-12 industrial swivel caster is designed to provide top quality mobility solutions for various applications. Featuring high quality materials and precision engineering, this caster ensures reliable performance and durability. With a dynamic load capacity of 550 lbs, it is ideal for medium to heavy-duty applications.
Benefits
- High Load Capacity: Supports up to 550 lbs, making it suitable for a wide range of industrial uses.
- Precision Ball Bearings: Maintenance-free precision ball bearings ensure smooth and efficient operation.
- Durable Construction: Made with high quality materials for long-lasting performance.
- Versatile Mounting: Equipped with mounting plates for easy installation.
| SKU | L-ALST 125K-12 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 5 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 6-1/8 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 550 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 3-5/8 Inches x 2-1/2 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 1-3/4 Inches x 2-13/16 Inches - 3-1/16 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The Blickle L-ALST 125K-12 industrial swivel caster is perfect for:
- Industrial carts and trolleys
- Warehouse and distribution equipment
- Manufacturing and assembly lines
- Medical and laboratory equipment
Selection Assistance
Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!
