Steel Roll Up Door Weather Seals
Benefits for Rolling Steel Doors
Rolling steel doors — also known as coiling doors or roll-up doors — have a distinct construction that requires weatherstripping designed specifically for how these doors operate. Unlike sectional overhead doors, which have hinged panels that track along the ceiling, rolling steel doors coil into a drum at the top of the opening as they open. The door curtain travels through guide channels on each side of the opening, and the bottom edge rests on the floor via a bar assembly when closed.
Standard T-style channel seals and retainer-based weatherstrip systems designed for sectional or overhead doors are not compatible with this construction. Rolling steel door weather seals are engineered to work with the guide tracks and bottom bar assembly specific to coiling door systems — protecting the facility interior from weather, pests, dust, air infiltration, and debris in a way that standard seals cannot achieve.
Barron Equipment carries many seals for rolling steel garage doors. This door bottom seal is made to seal the edges of the door from the environment on the other side. Some of the seals also clip on, making it easy to install. All products in this category are made in the USA and are designed for mini warehouse, self-storage, and commercial door applications.
Types of Rolling Steel Door Weather Seals
Choosing the Right Seal
Selecting the right rolling steel door weather seal depends on where the seal is needed and what conditions the door faces.

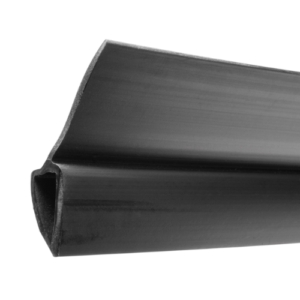

For side and top guide protection, the choice between the two-piece retainer and the one-piece guide seal comes down to installation simplicity versus material flexibility. The one-piece design is the faster and simpler option — one component, one step, no separate seal material needed. The two-piece retainer system is the better choice when a specific weatherstrip material — such as a freeze-proof brush seal for cold environments — is required. Both systems require a door guide no thicker than 1/4 inch.
For bottom bar protection, the EPDM option is the correct choice for doors in extreme temperature environments, including cold storage, outdoor-facing doors in cold climates, or bays adjacent to high-heat areas. For standard commercial environments where temperature extremes are not a factor, the vinyl option delivers dependable performance at a lower material cost. Facilities equipped with pneumatic reversing hose safety systems should confirm compatibility when ordering either bottom seal option — both are designed to accommodate pneumatic hoses.
If you are unsure which seal configuration is the right fit for your rolling steel doors, contact the Barron Equipment team. Our product specialists can help confirm guide dimensions, select compatible weatherstrip material, and recommend the right format — by the foot or by the reel — for your project size.
Installation & Service
Guide seals clip directly onto the door track — no fasteners, adhesive, or specialty tools are required — making them accessible for facility maintenance teams managing routine seal replacements. Bottom seals bolt between the bottom bars of the door curtain using standard fasteners. For facilities replacing seals across multiple doors simultaneously, or for any installation where confirming proper seal contact and door clearance is critical, Barron Equipment’s service technicians are available to complete the work and verify performance.
Seals are relatively easy to install, but it’s best to have an expert installer deal with any kind of industrial door or truck and loading dock equipment. Fill out the form below for more information about our service and installation that we offer.
