Overview

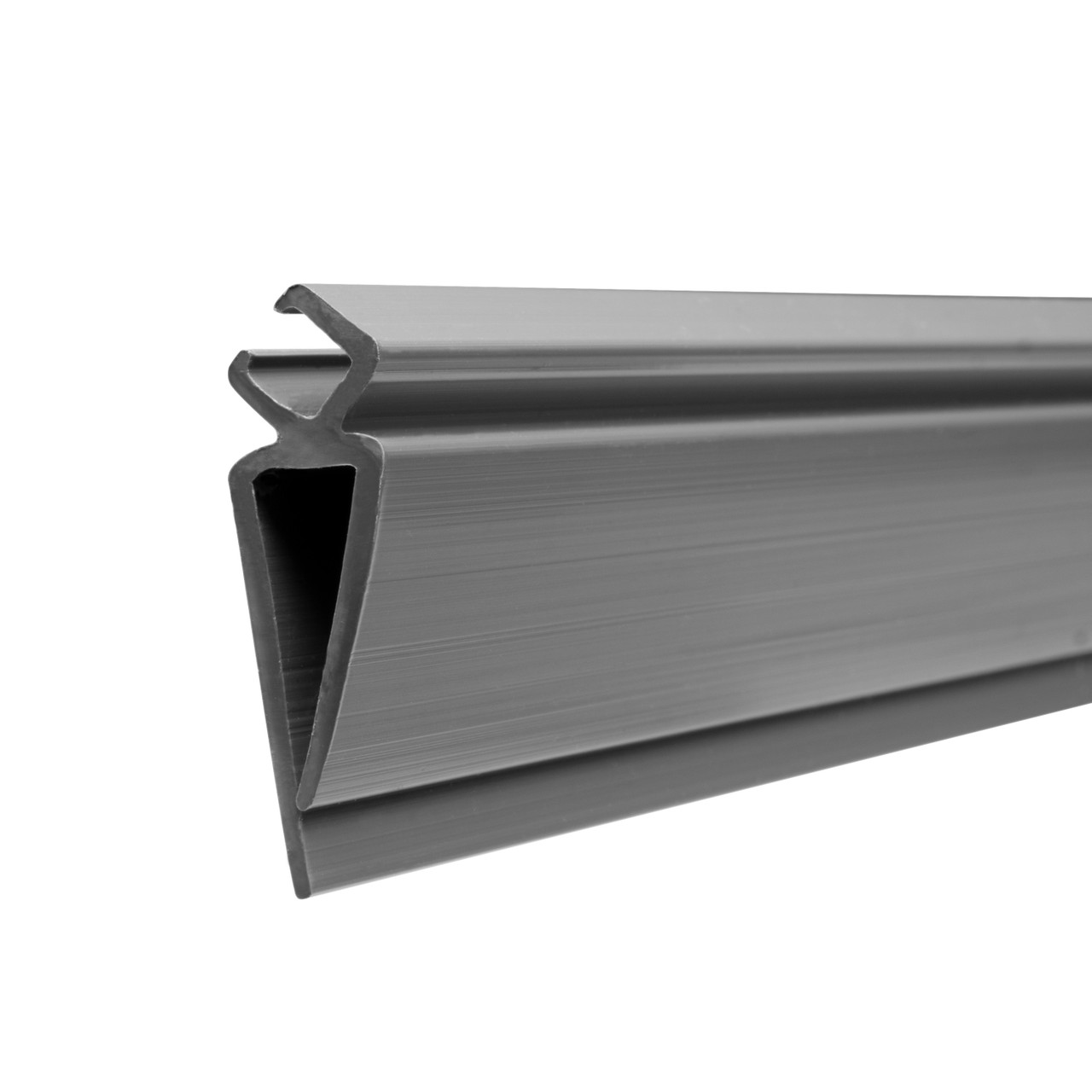

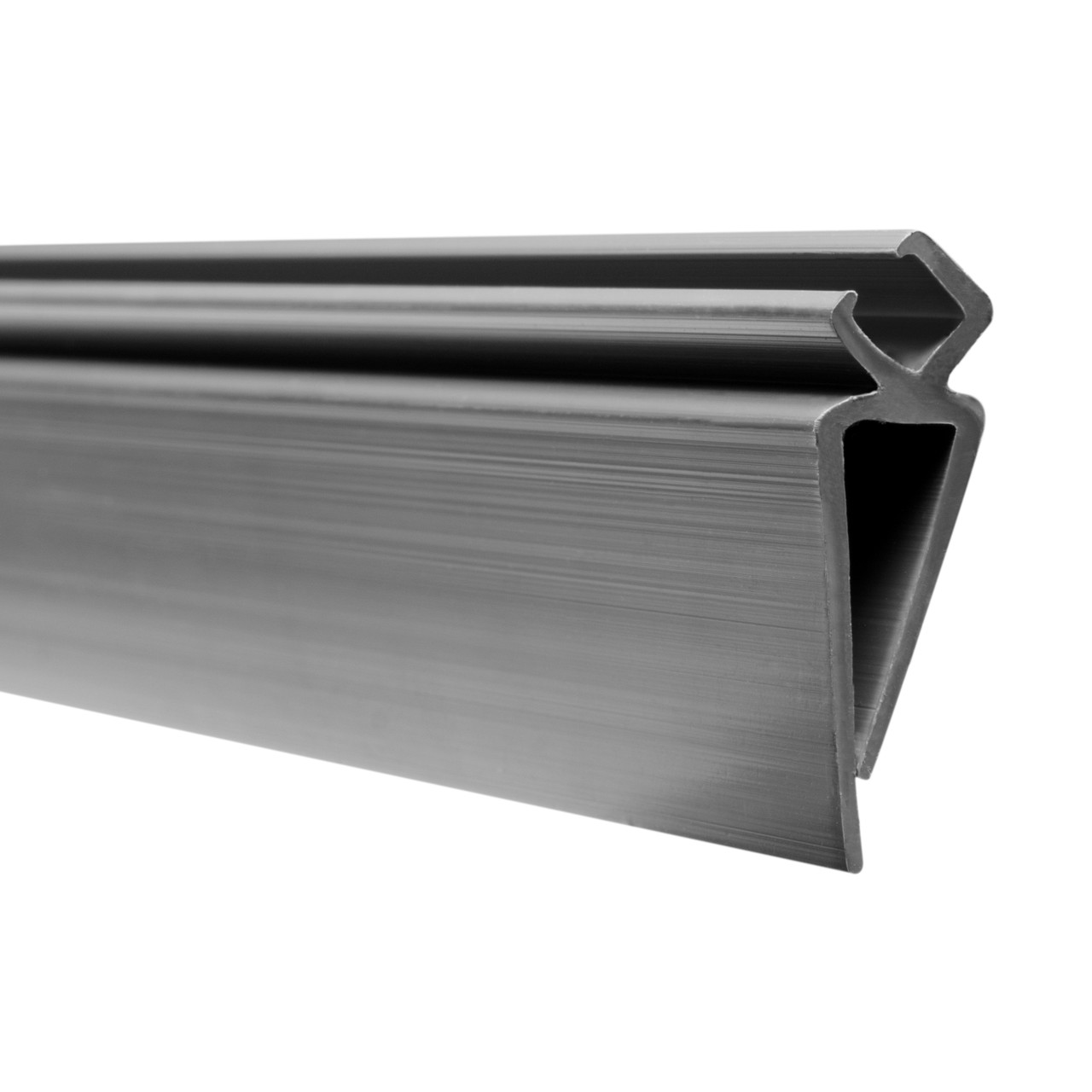

The Action PL035 is a plastic garage door weather seal retainer designed to clip onto the guides of rolling steel doors. Equipped with a 1-inch section that clips onto the guides and a standard-sized retainer channel, it is compatible with any standard brush seal and vinyl seal from Action Industries. This clip-on retainer provides a reliable mount for weatherstripping on rolling steel and roll-up garage doors in mini warehouse and self-storage applications, and does not require fasteners or any additional hardware for installation.
The PL035 is the retainer: the rigid plastic housing that mounts to the door guide. The actual weatherstripping material — brush seal or vinyl seal — is loaded into the retainer channel and is available separately. Together, the retainer and a compatible seal create a complete side or top weather seal system for rolling steel doors. This makes the product the starting point for any rolling steel door seal installation or replacement project that does not already have a guide-mounted retainer in place. It is also the correct replacement component when an existing retainer has cracked, broken away from the guide, or is no longer holding the seal securely.
Features & Benefits
This clip-on guide seal retainer is constructed from heavy-duty rigid plastic and equipped with a 1-inch clip-on section that locks directly onto door guides up to 1/4 inch thick — no fasteners, screws, or adhesives required. The standard-sized retainer channel is compatible with all standard brush seals and vinyl seals, giving facility managers the flexibility to pair the retainer with the weatherstripping material that best suits their door type and environment. The clip-on design makes installation and seal replacement fast enough to complete across multiple doors in a single maintenance shift, with no specialized tools needed.
Sold 25 pieces per box and available in three standard lengths — 8 feet, 16 feet, and 18 feet — this retainer minimizes field cutting on typical rolling steel door heights. Made in the USA, it provides a durable, reliable mount for side and top weatherstripping on rolling steel doors, roll-up doors, commercial doors, mini warehouse doors, and self-storage doors.
Applications
This clip-on guide seal retainer is designed for rolling steel and roll-up doors where the door panels travel along a metal guide channel on each side of the opening. It is the correct retainer when the door guide is up to 1/4 inch thick, and is the most common replacement component when an existing retainer has cracked, separated from the guide, or is no longer holding the seal securely. Common applications include:
- Mini warehouse and self-storage facilities — rolling steel unit doors require reliable side and top weatherstripping to protect stored goods from drafts, moisture, and pests
- Commercial roll-up doors — loading dock service doors, warehouse entry doors, and back-of-house doors on retail facilities where rolling steel construction is common
- Light industrial facilities — tool rooms, parts storage areas, and service bays with rolling steel door access
- Replacement installations — any rolling steel door where the original guide-mounted retainer has failed or is no longer securing the seal
Selection Assistance
Before ordering, confirm that your door guide is no greater than 1/4 inch thick — this retainer is specifically engineered for that guide thickness range and will not clip securely onto thicker profiles. Next, determine the length needed for your door. Standard lengths of 8 feet, 16 feet, and 18 feet cover most common rolling steel door heights with minimal trimming. For doors that fall outside these dimensions, plan for field cutting to fit.
Keep in mind that this retainer does not include the weatherstripping material. You will need to select a compatible brush or vinyl seal separately to complete the installation. A brush seal is the better choice for doors where the seal contacts irregular or rough surfaces, or where freeze-proof performance in cold environments is a priority. A vinyl seal is the better choice for smooth surface contact where consistent shape retention across temperature changes matters most.
If you are unsure whether this retainer fits your door guide, or need help selecting the right seal to pair with it, contact the Barron Equipment team before ordering. Our product specialists are available to confirm compatibility and help you put together a complete weatherstripping solution for your facility.
