Heavy Duty Pallet Conveyor with 7 Gauge Formed Frame

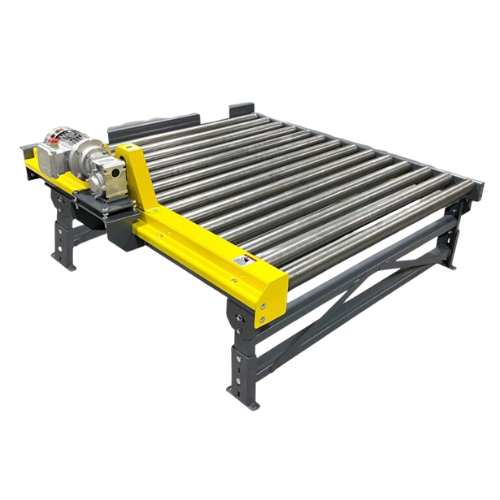

The Titan Model 525 steps up from the medium duty Model 519 with everything heavier — 2.5 in. diameter rollers rated at 580 lbs. each, #50 roll-to-roll chain drive, a formed 7 gauge frame (versus 10 gauge on the 519), and a one-piece chain guard that fully encloses the drive chains. This construction is purpose-built for loaded pallets, skids, drums, and heavy containers in industrial material handling environments where the 1.9 in. roller platform does not provide adequate capacity.
Specifications
- Effective Widths: 15 in. to 72 in.
- Minimum Length: 4.5 ft. (3 ft. minimum optional)
- Rollers: 2.5 in. dia. x 11 ga. with 11/16 in. hex shaft, grease-sealed bearings (2-5/8 in. dia. x 7 ga. optional)
- Roller Capacity: 580 lbs. per roller
- Roller Centers: 5 in. standard (2-13/16 in., 3-7/16 in., 4-3/8 in., 5-15/16 in., 10 in. optional)
- Chain Drive: #50 roll-to-roll (#60 optional)
- Frame: Formed 7 gauge with one-piece chain guard
- Drive: 3/4 HP, 230/460V/3Ph/60Hz standard (1, 1-1/2, 2, 3 HP optional; severe duty, inverter duty, brake motor available)
- Speed: 30 FPM standard (variable speed optional)
- Supports: “H” type adjustable (structural 6 in. x 8.2# channel optional)
- Paint: One coat industrial enamel
Tight Roller Centers for Pallet Contact
The Titan 525 offers roller centers as tight as 2-13/16 in. — significantly closer than the standard 4.5 in. or 6 in. spacing found on many competing CDLR models. Tighter centers put more rollers under the pallet, increasing the number of contact points and distributing load more evenly. This is especially important for pallets with weak or damaged bottom boards, lightweight slab pallets, or products with small footprints that need more roller support to transport reliably.
Titan Conveyor System Integration
The Model 525 integrates with Titan’s full line of pallet handling accessories, including 2, 3, and 4 strand chain transfers, belt transfers, pneumatic pin stops, pop-up stops, pallet lifts, pallet centering devices, pallet crowders, product rotation units, and pallet destackers for automated pallet handling systems. Drive locations can be configured as bottom mount, top mount, or side mount. Pallet jack plates are available for side or end loading.
Heavy Wall Roller Option
For applications with fork truck interface or abusive loading conditions, the Model 525 is available with 2-5/8 in. dia. x 7 ga. heavy wall rollers that resist impact damage — similar to the LEWCO CDLR26/CDDB26 heavy wall concept but on the Titan formed-frame platform.
Applications
The Model 525 is specified for loaded pallet transport in manufacturing, distribution, and warehousing, skid and drum handling in heavy industrial environments, palletizing and depalletizing line feed conveyors, automated pallet handling systems with destackers and centering devices, and any application where positive chain drive is required for loads that exceed the capacity of the 1.9 in. Model 519.
Selection Assistance from Barron Equipment
Choosing between the Titan 525, Titan 519, and LEWCO CDLR models depends on load weight, roller capacity requirements, frame construction preference, and system integration needs. Barron Equipment’s conveyor specialists help evaluate the application and specify the right platform.
