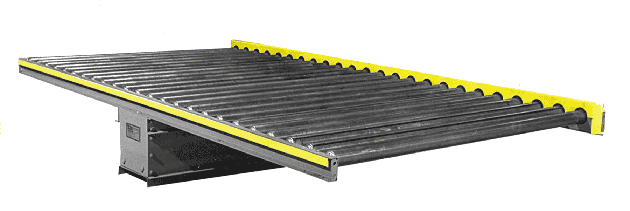

model526 chain driven live roller LG

Chain Driven Live Roller – Model 526

Model Description:

The Model 526 Chain Driven Live Roller conveyor from Titan Conveyors is designed to handle heavy load such as pallets, skids or drum. The unit incorporates a number 50 chain with a roll-to-roll drive. The frame is a heavy formed 7 gauge construction with a one piece chain guard. Rollers are 2-5/8" diameter x 7 gauge (600 lb. capacity) on 2-13/16", 3-7/16", 4-3/8", 5", 5-15/16" and 10" centers. Standard floor supports supplied are adjustable for approximately 30" to the top of roller. The Model 526 comes in lengths to suit with a minimum length of 4' long. Consult the factory for further details.

Titan Pop-Up Transfers, Stops, Pallet Centering, Pallet Lifts, Pallet Crowders and Product Rotation  units are designed for integration in Titan roller conveyor systems.

Pallet Destacker - is designed to stack or destack pallets in automated pallet handling systems.

Model 526 Chain Driven Live Roller Conveyor:

Effective Widths: 15" to 80"

Bearings: Grease Sealed

Chain: #50 Roll-to-Roll Drive or optional #60 Roll-to-Roll Drive

Drive: 3/4 H.P. 230/460/3/60

Frame: Formed 7 Gauge

Paint: One Coat Industrial Enamel

Rollers: 2-5/8" Dia. x 7 Gauge

Speed: 30 F.P.M.

Supports: "H" Type Adjustable
