Overview

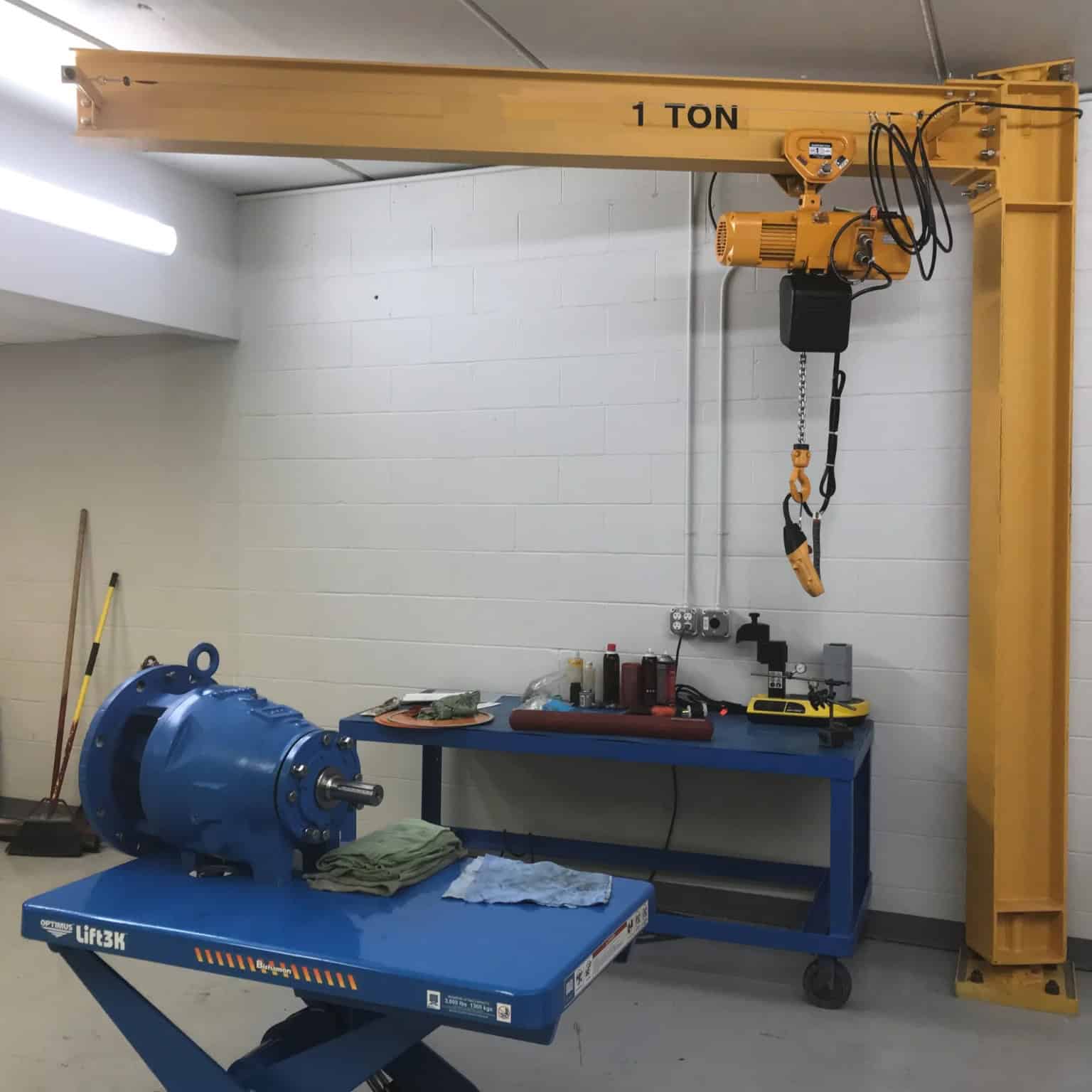

The HSI Model 314 is a mast-style, floor mounted jib crane built for facilities that need powerful, flexible lifting without the cost and complexity of a traditional foundation installation. The mast anchors at the floor while the upper end ties into an existing building truss or structural bracket — giving you a stable, high-performance rotating crane that works with your building rather than around it.
With full 360° rotation as standard, the Model 314 is one of the most versatile and cost-effective freestanding jib cranes available for industrial work cell applications. It performs equally well in low-headroom environments, and a drop boom configuration is available where overhead clearance is a concern.

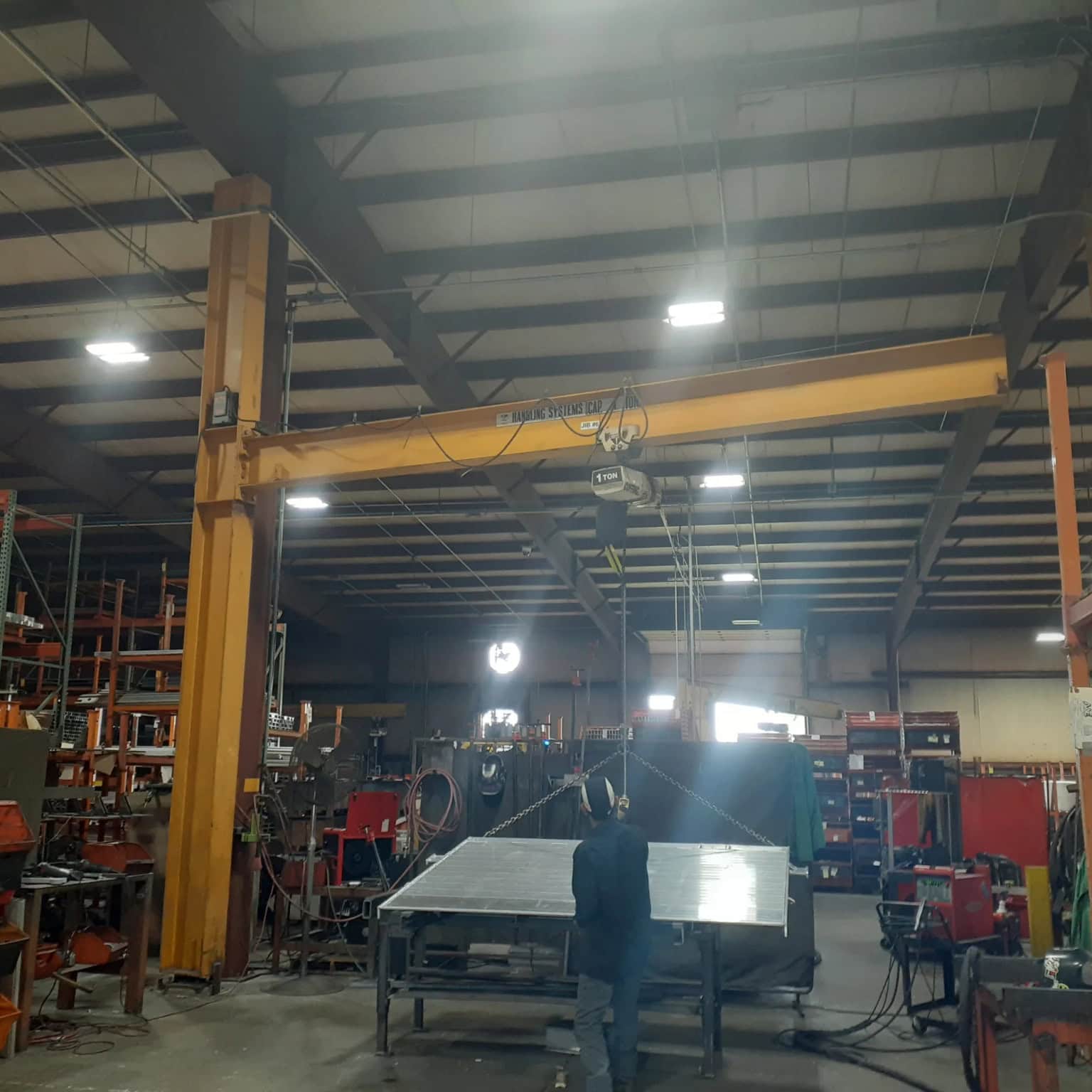

Whether you're outfitting a welding station, a manufacturing assembly cell, a machine maintenance bay, or a warehouse loading zone, the Model 314 delivers the reach, rotation, and reliability your operation demands. Barron Equipment carries the full HSI Model 314 line and can help you configure the right unit for your specific application.
Features & Benefits
The Model 314 is engineered to deliver smooth, consistent performance across a wide range of industrial lifting applications. Here's what sets it apart:
- No Special Foundation Required — The mast-to-floor connection uses your existing slab, significantly reducing installation cost and site preparation time compared to fully freestanding alternatives.
- Full 360° Rotation Standard — Covers the entire work cell without repositioning, improving workflow efficiency and reducing operator fatigue.

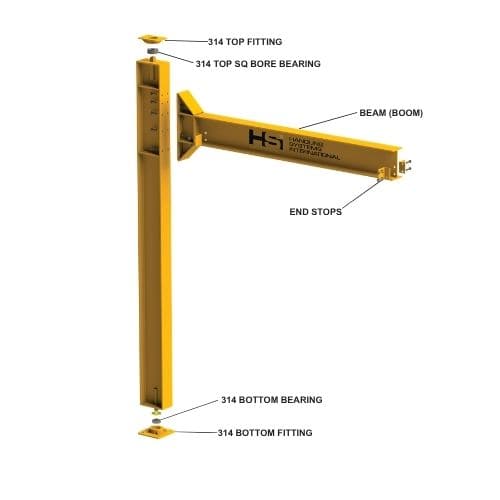

- Low Force Rotation — Heavy-duty cast iron fittings paired with roller bearings and grease fittings (zerks) allow the boom to swing with minimal effort, even under a full load.
- Minimal Structural Demand — The upper tie-in distributes load forces in a way that puts less stress on your building structure than many comparable crane styles.
- Maximized Trolley Travel — The boom design allows the hoist to travel the full usable length of the jib, giving you maximum coverage across the work area.
- Full and Drop Cantilever Options — Choose a standard full-cantilever boom or a drop-boom configuration for low-headroom environments.
- Motorized Rotation Available — For higher-cycle or heavier-load applications, motorized rotation can be added to reduce operator effort further.
- Designed for Low Headroom — The Model 314's profile is optimized for facilities where overhead clearance is limited.
Capacities & Specifications
The Model 314 scales to meet the demands of a broad range of lifting applications — from light assembly work to heavy industrial production.
| Specification | Detail |
|---|---|
| Maximum Capacity | Up to 10 tons |
| Standard Spans & Heights | Up to 30+ feet |
| Custom Configurations | Available upon request |
| Rotation | 360° (standard) |
| Mounting Style | Floor-mounted mast with upper building tie-in |
| Boom Styles | Full cantilever and drop boom |
Need something outside of standard parameters? Barron Equipment works with HSI Cranes to source custom span and height configurations. Contact our team to discuss your requirements.
Options & Accessories
The Model 314 can be tailored to your operation with a range of add-on options:
- Tight Wire Kit (Festooning/Tagline) — Keeps hoist cables organized and tangle-free during rotation
- Rotation Stops — Limits the crane's swing arc to a defined range for safety or layout reasons
- Outdoor Application Package — Weather-resistant treatment for exterior or covered outdoor environments
- Motorized Rotation — Electrically powered swing for high-cycle or heavy-load applications
- Hand Geared Rotation — Mechanical gear assist for controlled, precise positioning
- Hoist & Trolley Packages — Complete your system with a matched hoist and trolley sized for your capacity requirements
Barron Equipment can help you identify which options best match your application, budget, and duty cycle.
Applications
The HSI Model 314 is a proven solution across a wide range of industrial and commercial environments. Its compact footprint, full rotation, and flexible capacity range make it one of the most adaptable floor mounted jib cranes available.
Common applications include:
- Manufacturing & Assembly — Serve multiple workstations within a 360° work cell without repositioning the crane
- Welding & Fabrication — Position heavy weld fixtures, tooling, and assemblies with precision and ease
- Machine Maintenance — Lift and maneuver heavy components for equipment service and repair
- Warehousing & Distribution — Support loading and unloading operations at fixed work points
- Automotive & Aerospace — Handle precision parts in tight production environments
- Metal Fabrication & Foundry Work — Built to handle demanding duty cycles and heavy loads
The Model 314 is particularly effective in facilities where an overhead bridge crane isn't practical or cost-justified, but a single work cell needs dedicated lifting capability. It can also be used to supplement an existing overhead crane system, improving throughput without requiring major infrastructure changes.
Why Choose Barron Equipment for the HSI Model 314?
Barron Equipment is an authorized HSI Cranes distributor with deep expertise in industrial material handling. We don't just ship equipment — we help you choose the right crane for your specific facility, layout, and load requirements.
When you work with Barron, you get:
- Authorized HSI Cranes distributor with access to the full Model 314 product line
- Application engineering support to match capacity, span, and height to your exact needs
- Custom configuration assistance for non-standard spans or site-specific requirements
- Hoist and trolley package recommendations to complete your system
- Competitive pricing and straightforward quoting
Have questions before you buy? Our crane specialists are available to walk you through every option.
Selection Assistance
Selecting the right floor mounted jib crane starts with understanding your application. Before reaching out to Barron for a quote, it helps to have the following information ready:
- Required lift capacity (in pounds or tons)
- Desired boom span (horizontal reach from the mast)
- Height under boom (HUB) — clearance from the floor to the bottom of the beam
- Available overhead clearance — determines whether a standard or drop boom is needed
- Rotation requirements — full 360° or limited arc
- Duty cycle — frequency and duration of lifts per shift
- Power availability — for motorized rotation or electric hoist options
- Structural tie-in point — existing truss or bracket location in your facility
Not sure where to start? Contact Barron Equipment and one of our specialists will help you work through each of these factors to find your ideal configuration.
