What is the HSI Model 350 Freestanding Jib Crane?
The HSI Model 350 is a light-duty, pillar base mounted freestanding jib crane built for facilities that need a reliable, economical lifting solution at a dedicated workstation. Designed by Handling Systems International, the Model 350 is a foundation-required crane — it mounts permanently to the floor using HSI anchor bolts set into a properly engineered concrete foundation. This makes it a sturdy, long-term investment for shops and manufacturing facilities where stationary material handling is part of everyday operations.
The Model 350 delivers full 360-degree rotation as standard, giving workers complete coverage around the crane's pillar. It handles capacities up to 1 ton and is available in standard span and height configurations up to 14 feet, with custom configurations available to fit your specific footprint.
Important: The Model 350 is not the same as the HSI Model 350F. The 350F is the foundationless version and is available as a separate product. If you're looking for a crane that does not require poured concrete, please see the HSI 350F product page.
Features and Benefits of the Model 350
The Model 350 is engineered for value without sacrificing performance. Here's what sets it apart in its class:
- Economical pipe-over-pipe design — Keeps cost low while maintaining structural integrity across its duty cycle
- Full plate-style gussets — Distributes load forces evenly for maximum stability and service life
- 360-degree rotation standard — Allows workers to swing loads in a complete circle around the crane's support pillar
- Up to 1-ton capacity — Sized right for light assembly, welding stations, and repetitive pick-and-place operations
- Standard spans and heights up to 14 feet — Fits most standard industrial bay configurations; custom dimensions available on request
- Anchor bolt and template available separately — HSI can ship templates and anchor bolts in advance, allowing your team to prepare the foundation before crane delivery and minimize installation downtime
- Made in the USA — Manufactured by Handling Systems International, a trusted name in industrial jib cranes
Where the Model 350 Freestanding Jib Crane Performs Best
The HSI Model 350 is the right choice when your operation needs a dedicated, stationary lifting solution at a single workstation. It's not designed for frequent repositioning — but when you need dependable overhead reach in one spot, it excels. Common applications include:
Light Assembly and Manufacturing Fabricators and assemblers use the Model 350 to move components between stages of a build, reducing strain on workers performing repetitive lifts during a shift.

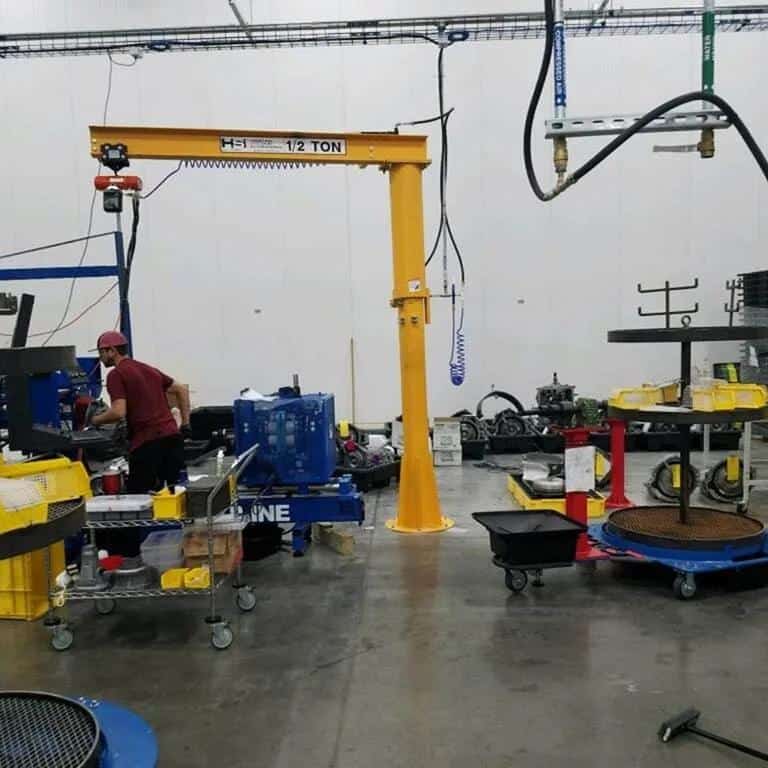

Welding Stations The 360-degree arc of coverage means welders can position a hoist exactly where they need it — above the work, to the side, or behind — without wrestling with the load by hand.
Maintenance and Repair Bays Shops maintaining heavy equipment use the Model 350 to lift engines, components, and tooling at fixed service bays where precision and repeatability matter more than mobility.
Small-Footprint Facilities When wall-mounted or ceiling-mounted cranes aren't structurally feasible, a freestanding pillar-base crane gives you a self-supporting overhead lift without depending on building structure.
Options and Accessories for this Freestanding Jib Crane
Barron Equipment can configure the Model 350 to match your exact application. Available options include:
| Option | Purpose |
|---|---|
| Tight Wire Kit (Festooning/"Tagline") | Manages power cord routing along the jib boom |
| Rotation Stops | Limits swing arc to defined angle, protecting nearby equipment or personnel |
| Top or Bottom Entry Collector | Enables continuous 360-degree rotation with power to the hoist |
| Outdoor Application Package | Protects crane components for exterior or harsh-environment use |
| Hoist & Trolley Packages | Allows you to receive a complete, ready-to-operate system |
| Template and Anchor Bolts | Can be shipped ahead of crane delivery to shorten installation time |
| No Load Parking Device | Positions the boom when not in use to prevent swing and protect nearby workers |
| Epoxy Anchoring System | (Note: This is specific to the 350F foundationless version — not applicable to the standard Model 350) |
How to Select the Right Jib Crane Configuration
Getting the right Model 350 starts with four key inputs your Barron Equipment specialist will use to engineer the crane and its foundation:
- Required capacity — How much weight will the crane lift at the tip of the boom?
- Span — What is the required horizontal reach from the center of the pillar to the hook?
- Height under boom (HUB) — How high does the hook need to travel above the floor?
- Available space and rotational clearance — How much floor area surrounds the crane, and are there any obstructions within the swing arc?
These four parameters drive the beam size selection, the overall height of the crane, and — critically — the foundation design. The HSI Model 350 requires a proper engineered concrete foundation. Foundation specifications are provided with your crane drawing. If you are constrained by an existing slab or cannot pour a new foundation, ask about the HSI Model 350F (foundationless option).
Contact Barron Equipment for a quote. We'll gather your specs and provide a complete package including anchor bolt templates, foundation guidance, and full crane specifications.
