Overview

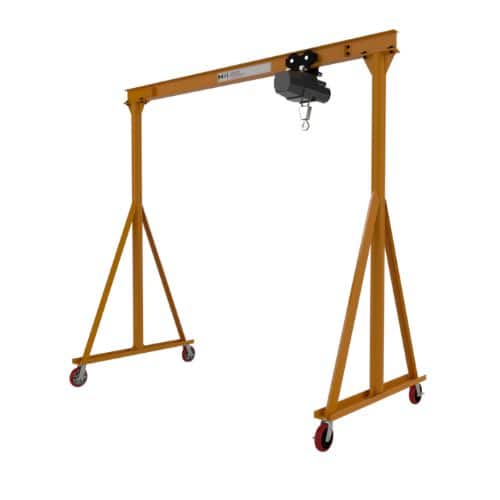

When you need a portable gantry crane that adapts to your lift height requirements — not just your floor space — the 512 Series delivers. Unlike fixed-height models, the 512 Series features adjustable height and span, meaning you can configure the beam height to match the exact lift clearance your application requires, without swapping equipment or improvising.
Designed for everyday use, this gantry crane is recommended for production, installation, and maintenance service where portability is required. It requires no foundation. Available in 1/2 ton (1,000 lbs) and 1 ton (2,000 lbs) configurations, the 512 Series gives you height flexibility, floor freedom, and portability — all in one system.
Looking for a fixed-height model? See the HSI 511 for a portable crane with a fixed beam position. For heavier loads, see the HSI 512HD (4,000–10,000 lbs).
The Adjustable Advantage — What Sets the 512 Apart

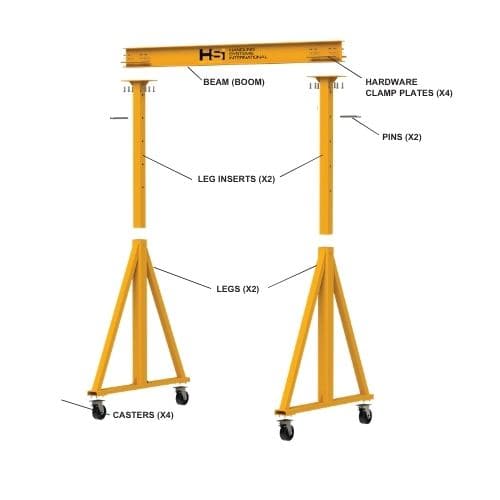

The defining feature of the 512 Series is its adjustable height and span. Span lengths are available up to 25+ feet and heights up to 25+ feet. In practice, this means:
- Variable lift clearance — Set the beam height for each specific job, rather than working around a fixed overhead height
- Flexible span configuration — Widen or narrow the leg spread to match the load or workspace
- Maximum versatility — One crane handles multiple application types across different work areas
This is the right choice when your operations involve varying load heights, multi-purpose use across different workstation types, or maintenance tasks on equipment of different sizes.
Casters, Wheels & Portability
Depending on the capacity, the gantry is equipped with phenolic, poly coated, or forged steel heavy-duty swivel casters. All caster types feature roller bearings for ease of movement. Grease fittings are included for ease of maintenance. 'V' Groove and flanged wheels are also available upon request.
Swivel locks and wheel locks are available to stabilize the crane during lifts, keeping it in position while you work without requiring it to be anchored to the floor.
Capacities & Accessories
The 512 Series is available in the following ecommerce configurations:
| Capacity | Pounds |
|---|---|
| 1/2 ton | 1,000 lbs |
| 1 ton | 2,000 lbs |
Available accessories include:
- Tight Wire Kit (Festooning / "Tagline") for cable management
- Swivel Locks for caster stabilization
- Wheel Locks for additional security during lifts
- Rigid or 'V' Groove Casters for different floor surfaces
- Hoist & Trolley Packages matched to your capacity requirements
- Motorization for powered movement
Where Adjustable Height Makes the Difference
The 512 Series fits operations that require height flexibility alongside portability. Common applications include:
- Multi-height workstations — Adjust the beam height between jobs rather than compromising on clearance
- Maintenance departments — Service equipment of varying heights in a shared work area
- Facilities with changing layouts — Reconfigure both the height and span as your workflow evolves
- Assembly operations — Support parts positioning across different product sizes or assembly fixtures
- Machine tending with varied equipment — Load and unload machines of different heights without fixed crane infrastructure
- Rental and contract environments — One adjustable crane serves multiple job site configurations
Configure Your 512 System
Select your capacity, height, span, and caster configuration from the available options and add to cart. Barron Equipment's product specialists can help match the right hoist and trolley package to your 512 Series configuration. Fill out the quote form below or contact us directly.
