Overview
Some loads do not fit neatly on a flat platform. Furniture with legs, equipment on casters, pianos with curved bases, and irregularly shaped items all need a different approach to transport. This multipurpose dolly is designed for exactly those situations. Its compact profile and cupped center surface cradle furniture legs, caster stems, and rounded bases in place, keeping the load stable and centered during movement. Two capacity options — 400 lbs and 550 lbs — cover the full range of everyday moves in offices, schools, warehouses, showrooms, and homes.
Both models are built from heavy-gauge steel and finished with a non-skid, non-marring red vinyl coating that grips the load, cushions it against surface damage, and protects finished flooring throughout transport. Every unit is manufactured by Raymond Products in Minneapolis, Minnesota and backed by a lifetime warranty.
Features and Benefits
The defining feature of this multi purpose dolly is its compact, cupped-center platform. Unlike flat platform dollies that require loads to have a broad, level base, this design cradles individual furniture legs, caster wheels, or curved surfaces and keeps them from rolling or sliding off the dolly during movement. This makes it the go-to solution for items like pianos, couches, bookcases, display cases, and lab tables — loads that would be unstable or awkward on a standard flat dolly.
The non-skid vinyl coating serves double duty. It adds grip to prevent the load from shifting, and it acts as a protective cushion between the steel frame and the item being moved. The non-marring swivel casters allow free movement in any direction, which is critical for navigating tight corners, narrow doorways, and crowded showroom floors. All casters are hard rubber and safe for use on hardwood, tile, laminate, carpet, and polished concrete.
Both models measure just 8″ W x 19¾” L, making them easy to store when not in use and small enough to position under furniture legs individually or in pairs. Each unit ships via UPS in a single carton with no assembly required.
Available Models
- Model 3300 – 400 Lb Capacity (3-Wheel) — The original multi purpose dolly with three 2½” swivel casters. The three-point contact design provides inherent stability on uneven surfaces and keeps all three wheels in contact with the floor at all times. Ideal for lighter loads and situations where a pair of dollies are used together under a single piece of furniture. Shipping weight: 10 lbs.

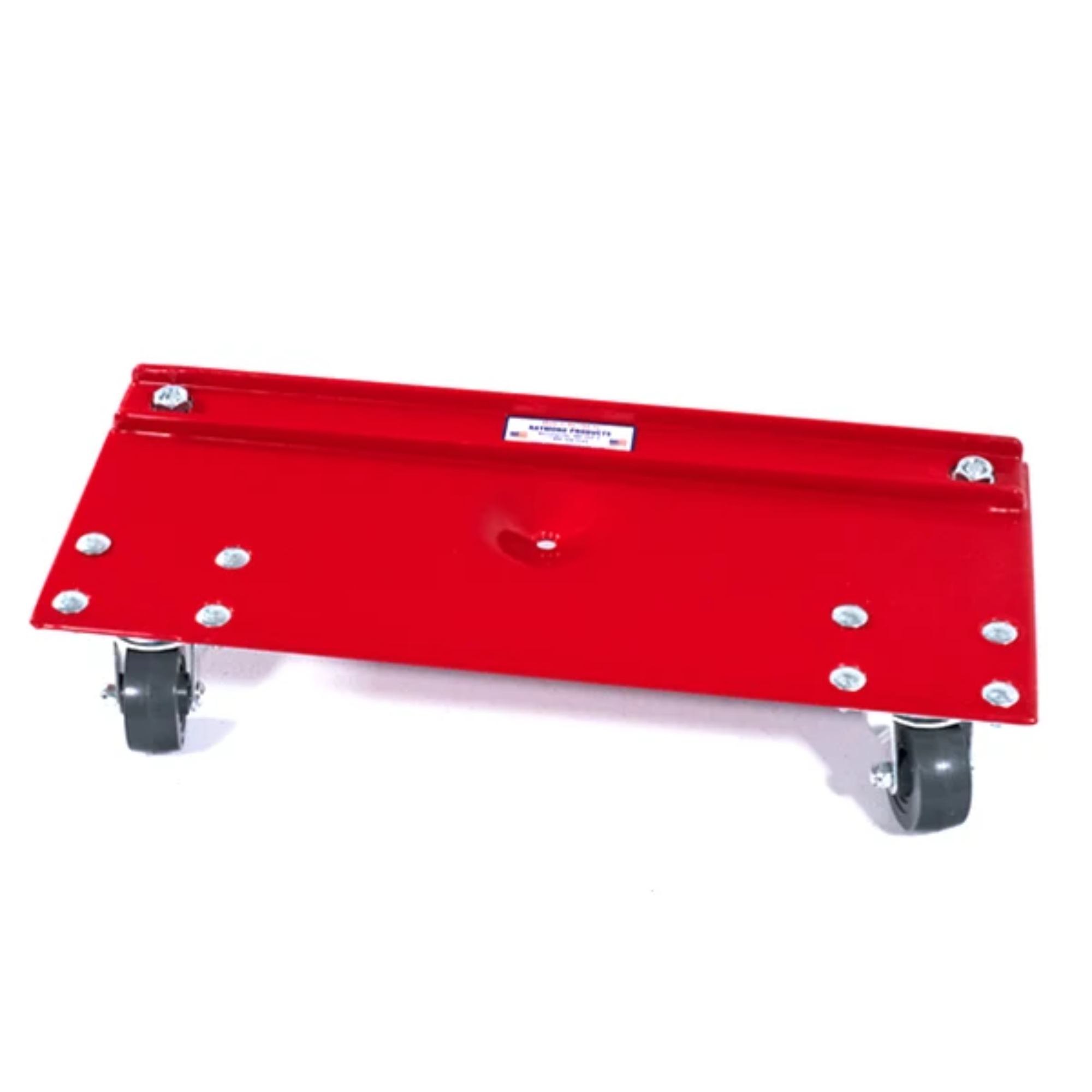

- Model 3400 – 550 Lb Capacity (4-Wheel) — An upgraded version with four 2½” swivel casters and 12-gauge heavy-duty steel construction. The additional caster increases load capacity to 550 lbs and provides a wider base of support for heavier equipment, machinery, and oversized furniture. Shipping weight: 13 lbs.
Both models share the same 8″ x 19¾” footprint, cupped-center design, and non-skid vinyl coating. The choice comes down to load weight and whether the extra stability of a fourth caster is needed for your most common transport tasks.
Applications
Piano movers and music departments are among the most frequent users of this multipurpose dolly. The cupped center cradles piano legs securely, and the non-marring casters protect the finished floors found in concert halls, churches, schools, and homes. A set of three dollies — one under each leg — turns a grand piano into a smoothly rolling load that one or two people can reposition without risking damage to the instrument or the floor.
In offices and retail environments, facilities teams use these dollies to reposition couches, credenzas, bookcases, display cases, and storage cabinets. Schools and universities rely on them for moving lab tables, gang seating, and heavy classroom equipment. Warehouses and industrial facilities use the 550 lb Model 3400 for relocating machinery, heavy crates, and oversized supply containers. Moving companies keep sets of these dollies on every truck for handling legged furniture and irregularly shaped items that do not sit flat on a standard platform dolly.
Selection Assistance
For most furniture moves involving legged items under 400 lbs, the three-wheel Model 3300 is the standard choice. Its three-point contact design naturally conforms to slightly uneven surfaces and keeps the dolly stable without rocking. For heavier loads, industrial equipment, or applications where the extra stability of a wider base matters, the four-wheel Model 3400 at 550 lbs provides additional capacity and support.
Many users purchase these dollies in sets of two, three, or four — placing one under each furniture leg or caster for balanced, controlled transport. If your facility also handles flat-bottomed loads like stacked boxes, crates, or palletized goods, consider pairing these multipurpose dollies with the Raymond Royal Dolly platform series (800 lb capacity) for complete coverage.
Need help determining the right configuration for your application? Barron Equipment’s material handling team is here to assist. Fill out the form below or contact us directly.
