3 Models of Pneumatic Balancers
SM-03, SM-06 & SM-12

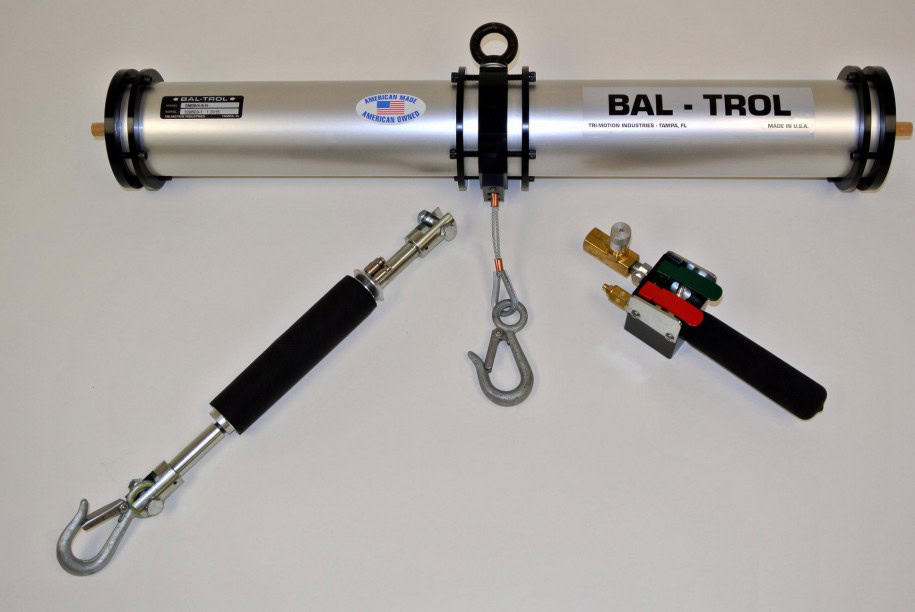

NEW "SM" HORIZONTAL MOUNTING, SINGLE MOUNT PNEUMATIC BALANCER
- Space saving Single Mount horizontal Bal-trolĀ® mounts like a vertical pneumatic hoist.
- The Single Mount advantage is it can be mounted in-line or perpendicular to the rail.
- Only needs one trolley.
- For all repetitive lifting applications.
- Simple to operate.
- Made to order travels from 1 foot to 10 feet or more.
- Contains no expensive electronic components or computer parts to fail, overheat, have moisture damage or require reprogramming.

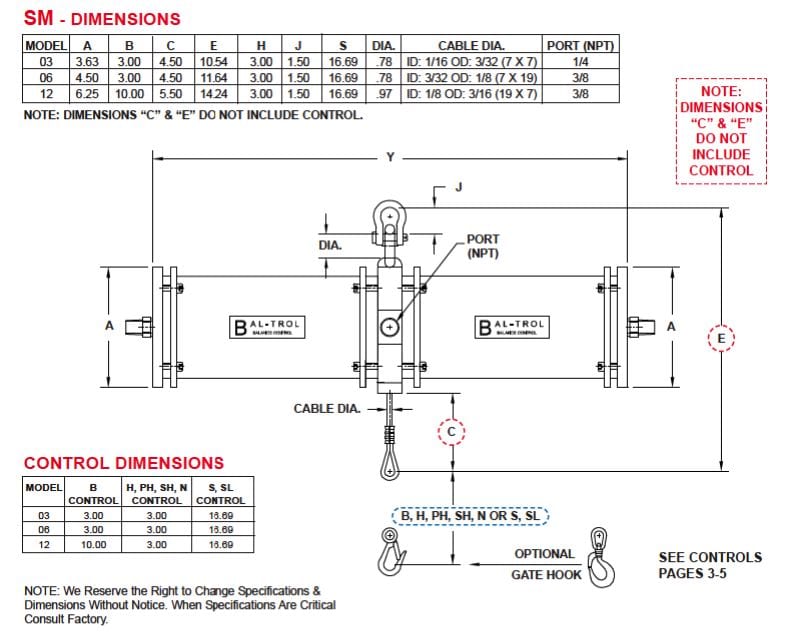

Dimensions

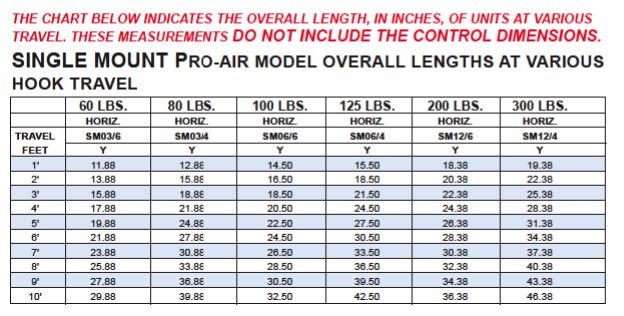

Overall Lengths

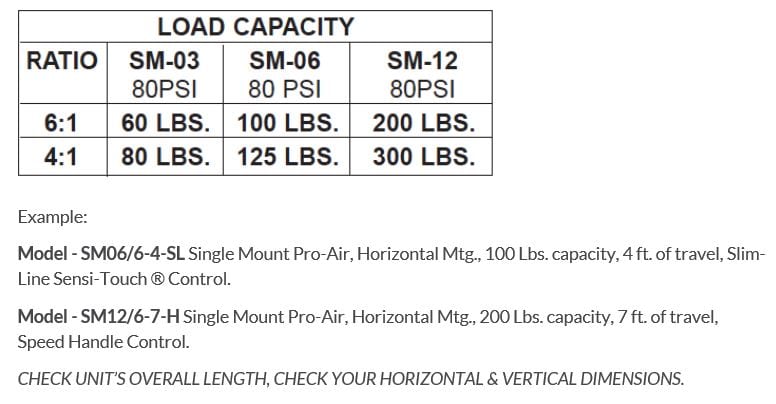

Load Capacity

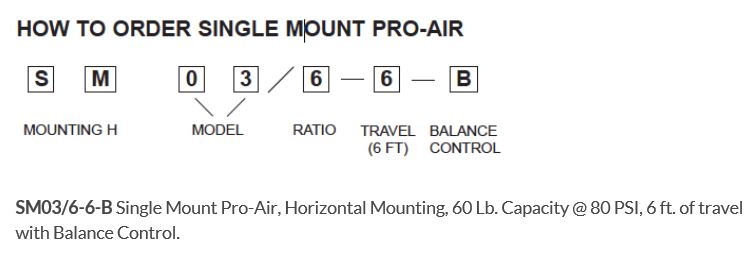

How to Order

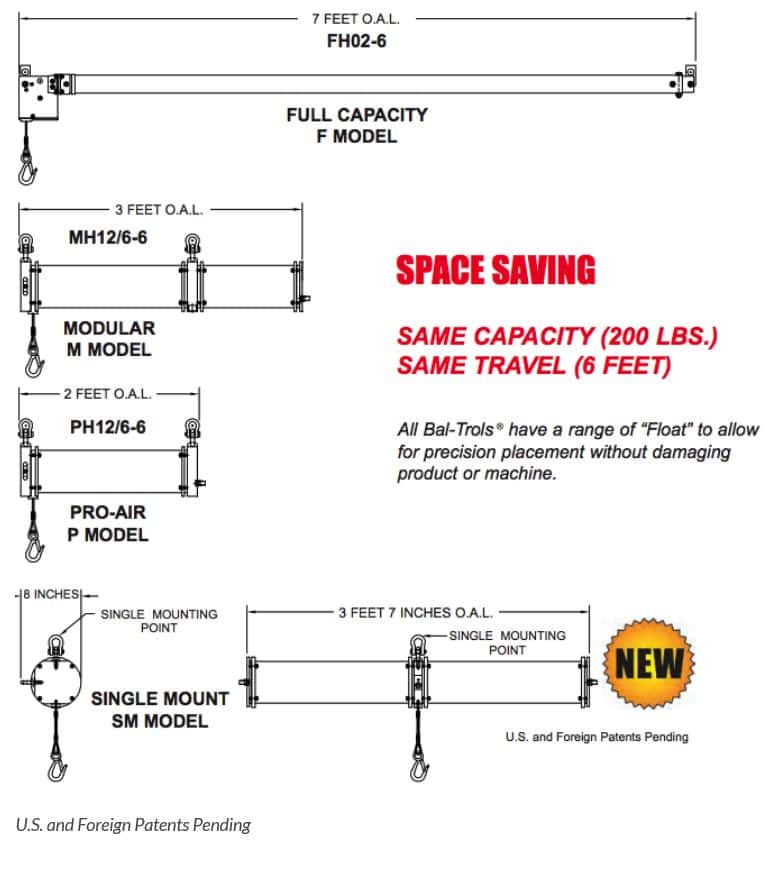

Comparing Overall Lengths
