Overview
Barron Equipment and Overhead Door offers vacuum lifters designed to help workers lift and move materials with better control and less physical strain. This product line includes single-tube units, higher-capacity systems, multi-tube configurations, and mobile vacuum lifts, along with support components such as power units and attachments.
These vacuum lifts are built for a wide range of material handling needs. Systems are designed to handle both porous and non-porous loads, giving operators the ability to move different types of products with one solution. Durable construction and engineered lifting components help support consistent performance in everyday warehouse, manufacturing, and production environments.
Features and Benefits
Vacuum lifters are designed to provide smooth, controlled lifting. Many systems include automatic balance control that allows the operator to stop and hold a load at any height during movement. This helps improve handling accuracy and reduces the chance of sudden movement during lifting.
The lifting system is built for ease of use. Operators can control movement with simple hand controls, allowing for precise “in and out” motion. Adjustable handles and user-friendly controls support comfortable operation for different users, reducing strain during repetitive lifting tasks.
Durability is another key benefit of vacuum lifts. Stainless steel components help support long-term use, while reinforced lift tubes are designed to withstand frequent movement and resist wear. Many systems are also suitable for washdown environments, making them a good fit for facilities that require regular cleaning.
Flexibility is built into the product line. Vacuum lifters can be configured with different suction feet, attachments, and power units to match the product being handled. This allows one system to support multiple lifting applications across a facility.
Applications
Common Uses
- Boxes and crates
- Bags and sacks
- Rolls and packaged goods
- Sheets and panels
- Drums and kegs
- Freight and cargo handling
- Loading, unloading, and palletizing
Vacuum lifts are used in many industries where materials need to be moved safely and efficiently. These include manufacturing, warehousing, food processing, packaging, and more. The systems help improve workflow by reducing the effort needed to lift heavy or bulky items. They also help protect products during handling by allowing smoother, more controlled movement from one location to another.
Selection Assistance
Choosing the right vacuum lifter depends on the type of material being lifted. Important factors include whether the load is porous or non-porous, the weight of the item, and how often lifting will occur. Different models are available to match these needs, from lighter-duty systems to higher-capacity vacuum lifts.
Barron Equipment and Overhead Door can help customers select the right configuration based on their application. With options for different attachments, lift capacities, and system designs, customers can build a solution that supports safer lifting, improved efficiency, and better overall workflow.
FAQs
What is the lifting capacity of this vacuum lifter?

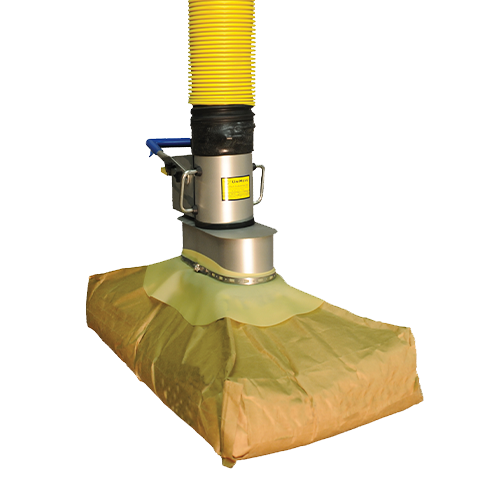

This vacuum lifter is rated for up to 90 pounds on non-porous surfaces and up to 70 pounds on porous materials. It is the lightest-duty model in the vacuum lifter product line and is designed for repetitive lifting of smaller items in packaging, order fulfillment, and light assembly environments where loads typically weigh under 100 pounds.
What industries benefit most from a light-duty vacuum lifter?
Light-duty vacuum lifters are commonly used in food processing, pharmaceutical packaging, consumer goods distribution, and e-commerce fulfillment operations. These environments typically involve repeated lifting of boxes, cartons, bags, crates, and packaged goods throughout the day. Even at lower weights, manual lifting hundreds of times per shift creates cumulative physical strain. A vacuum lifter eliminates the need for bending, gripping, and manually hoisting items, improving operator comfort and reducing the risk of repetitive motion injuries.
What makes the CM450 different from the CM470?
Both the CM450 and CM470 share the same 3 HP direct drive power unit and 10–12 inches of mercury vacuum output. The key difference is the lift tube diameter. The CM450 uses a 5-inch tube, while the CM470 uses a 7-inch tube. The larger tube on the CM470 provides a higher capacity of 175 lbs non-porous and 140 lbs porous, compared to 90 lbs and 70 lbs on the CM450. The CM450 is the better fit when loads consistently fall under 90 lbs and a smaller, more compact tube profile is preferred.
Does this system support both porous and non-porous materials?
Yes. The vacuum lifter is designed to handle both material types within its rated limits. Different suction feet and gripper configurations can be used to maintain an adequate seal on cardboard, paper-wrapped products, shrink-wrapped goods, and other porous materials. A quick-change adapter allows operators to swap grippers without tools when switching between product types during the workday.
What type of power unit does this vacuum lifter use?
This model uses a direct drive power unit — a self-enclosed design where the 3 HP motor connects directly to the vacuum pump without intermediate belts or linkages. This reduces mechanical complexity, lowers maintenance requirements, and provides reliable performance for lighter-duty lifting applications. The power unit operates at 74–75 dBA and protects internal components from dust, debris, and accidental contact.
How does a vacuum lifter reduce workplace injuries?
Vacuum lifters eliminate the need for manual bending, gripping, and lifting of products. By allowing an operator to control the load with one hand using fingertip controls, the system reduces stress on the back, shoulders, wrists, and hands. Automatic balance control also removes the need to physically hold the weight of the load during positioning, which helps prevent fatigue-related injuries during long shifts. These ergonomic benefits can contribute to fewer workers' compensation claims and lower absenteeism over time.
Can this vacuum lifter be used for rolls, kegs, or irregularly shaped items?
Yes. The system supports a range of suction feet and attachments that can be configured to handle rolls, kegs, drums, and other non-standard shapes. The key factor is whether the gripper can maintain a sufficient vacuum seal on the surface of the item. Barron Equipment can review your specific products and recommend the right suction foot configuration to ensure safe, reliable lifting for each application.
How does Barron Equipment help customers choose the right vacuum lifter?
Barron Equipment reviews each customer's application details — including the type of material being handled, maximum load weight, surface characteristics, lifting frequency, and workspace layout. The vacuum lifter product line includes eight models spanning 90 to 900 pounds across single-tube, twin-tube, and triple-tube configurations. Barron Equipment can match your needs to the right system and provide support for start-up, operator training, and ongoing service through authorized local dealers.
