Overview
Benefits

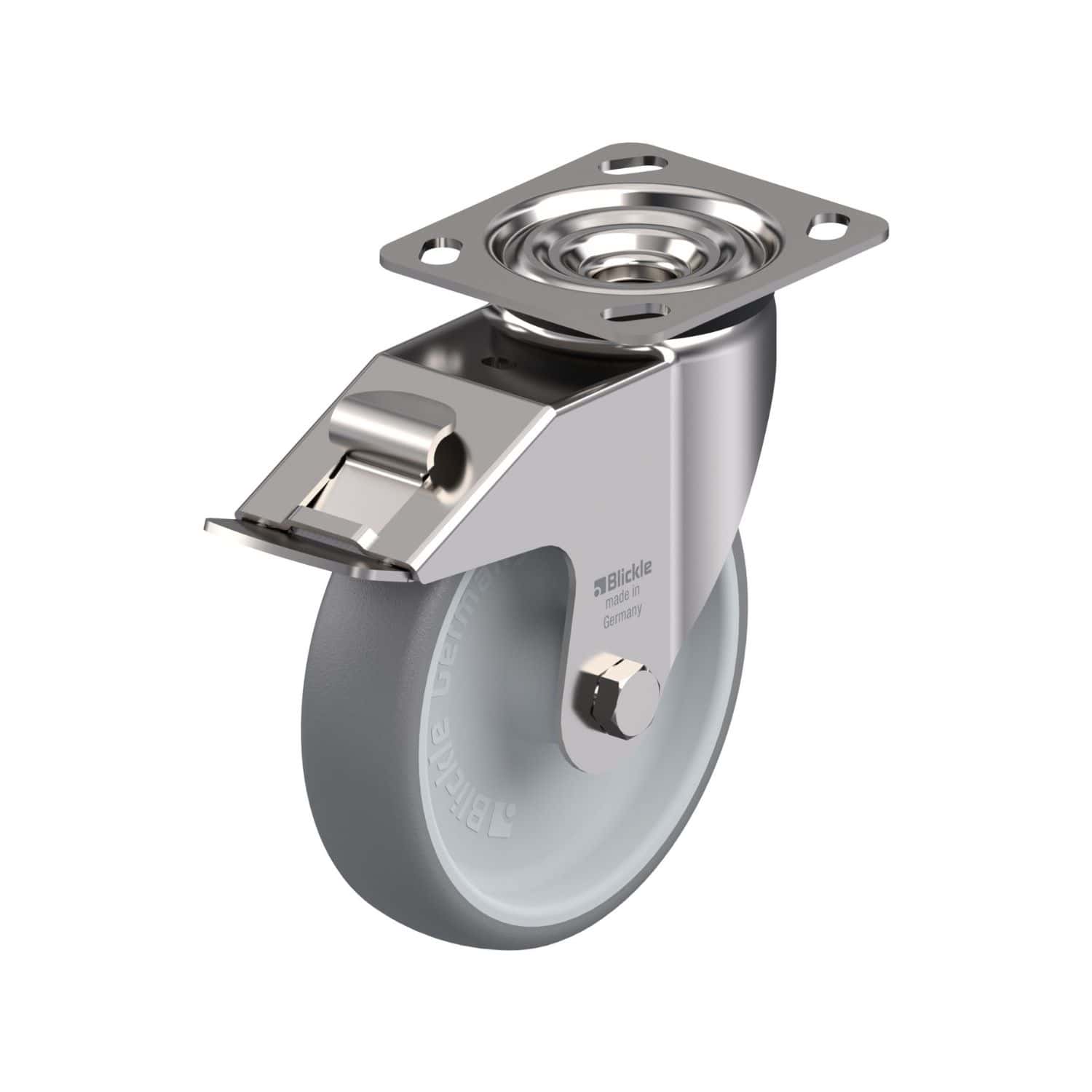

- High-Quality Materials: The wheel is made from thermoplastic rubber-elastomer (TPE) with a hardness of 85 Shore A, chemically bonded to an impact-resistant polypropylene wheel center.
- Non-Marking: The gray tread ensures that the caster does not leave marks on floors, maintaining a clean environment.
- Low Rolling and Swivel Resistance: Designed for smooth and easy movement, reducing the effort required to move heavy loads.
- Load Capacity: With a load capacity of 440 lbs, this caster is suitable for medium to heavy-duty applications.
| SKU | LEX-TPA 160G-14-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 6-5/16 Inches | Maximum Temperature | 140 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Thermoplastic Rubber Elastomer |
| Overall Height | 7-11/16 Inches | Bearing Type | Plain Bore |
| Core Material | Polypropylene | Weight Capacity | 440 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 85 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches x 3 Inches |
Premium Rubber Wheels
Premium rubber wheels are engineered for smooth, quiet, and floor-friendly transport across a wide range of industrial and commercial settings. These wheels offer superior operational comfort, excellent shock absorption, and reduced noise levels—making them ideal for sensitive environments and heavy-duty use.
Barron Equipment offers a robust selection of premium rubber wheel solutions, including multiple series designed for specific applications. Options include:
- Blickle EasyRoll: Elastic solid rubber tires vulcanized onto impact-resistant nylon wheel centers (POEV, ALEV, & SE series)
- Blickle SoftMotion: Soft rubber tires with aluminum or nylon cores for enhanced comfort and maneuverability
(ALES series) - Thermoplastic: High quality thermoplastic with an impact-resistant polypropylene core for low rolling and swivel resistance
(TPA series)
These wheels are available in various configurations—swivel casters, rigid casters, and twin-wheel formats—and support speeds up to 10 mph. They are also resistant to many aggressive substances and offer excellent floor preservation.
Check out the video below for more information.
Applications
- Industrial Equipment: Suitable for use in factories and warehouses where heavy loads need to be moved efficiently.
- Medical Equipment: Non-marking and smooth rolling properties make it perfect for hospital beds and medical carts.
- Retail Displays: Ensures easy maneuverability of display units without damaging floors.
