Overview
Benefits

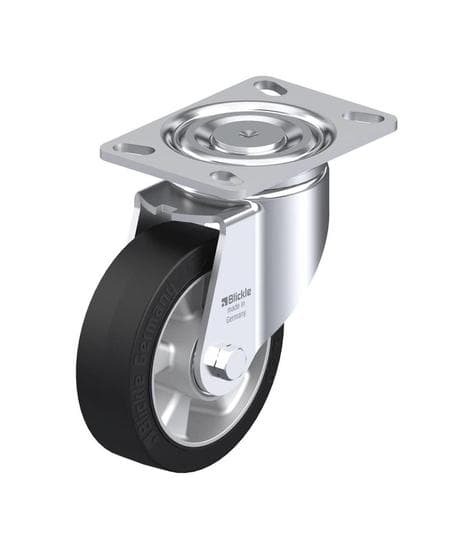

- High Load Capacity:Â With a dynamic load capacity of 880 lbs, this heavy duty swivel caster is ideal for demanding industrial environments.
- Rubber Tread:Â The rubber tread provides excellent floor protection, reducing the risk of damage to surfaces and ensuring quiet operation.
- Precision Ball Bearings:Â The inclusion of precision ball bearings ensures smooth and maintenance-free operation, enhancing the caster's longevity.
- Durable Construction:Â Made from high quality materials, this caster is built to withstand rigorous use and provide long-lasting performance.
| SKU | LH-ALEV 150K-16 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Maximum Temperature | 175 |
| Wheel Width | 2 Inches | Wheel Material | Blickle EasyRoll Rubber |
| Overall Height | 7-3/4 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 880 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 65 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Premium Rubber Wheels
Premium rubber wheels are engineered for smooth, quiet, and floor-friendly transport across a wide range of industrial and commercial settings. These wheels offer superior operational comfort, excellent shock absorption, and reduced noise levels—making them ideal for sensitive environments and heavy-duty use.
Barron Equipment offers a robust selection of premium rubber wheel solutions, including multiple series designed for specific applications. Options include:
- Blickle EasyRoll: Elastic solid rubber tires vulcanized onto impact-resistant nylon wheel centers (POEV, ALEV, & SE series)
- Blickle SoftMotion: Soft rubber tires with aluminum or nylon cores for enhanced comfort and maneuverability
(ALES series) - Thermoplastic: High quality thermoplastic with an impact-resistant polypropylene core for low rolling and swivel resistance
(TPA series)
These wheels are available in various configurations—swivel casters, rigid casters, and twin-wheel formats—and support speeds up to 10 mph. They are also resistant to many aggressive substances and offer excellent floor preservation.
Check out the video below for more information.
Applications
- Industrial carts and trolleys
- Warehouse and distribution equipment
- Heavy machinery and equipment
- Material handling systems
