Overview

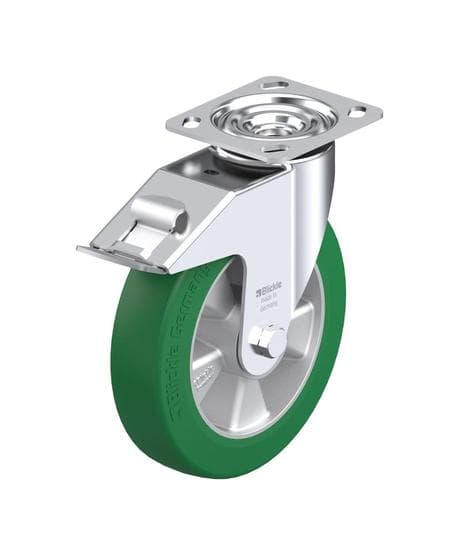

The LE-ALST 200K-14-FI is a robust heavy duty swivel caster designed for industrial applications. It features a polyurethane caster wheel with an aluminum wheel center, ensuring durability and reliable performance. This caster is equipped with a brake system known as 'stop-fix,' providing secure locking when needed.
Benefits
- Heavy Duty Construction: The caster is built with a pressed steel swivel and a top plate fitting, making it suitable for demanding environments.
- Polyurethane Tread: The polyurethane caster wheels offer excellent floor protection, high abrasion resistance, and are non-marking and non-staining.
- Smooth Rolling: The extra crowned running tread ensures smooth and quiet operation.
- Brake System: The 'stop-fix' brake system provides reliable locking, making it a locking caster.
| SKU | LE-ALST 200K-14-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 9-1/4 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 660 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches x 3 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
- Ideal for heavy-duty industrial use where high load capacity and durability are required.
- Suitable for environments where floor protection and non-marking wheels are essential.
Selection Assistance
Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics, and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!
