Overview

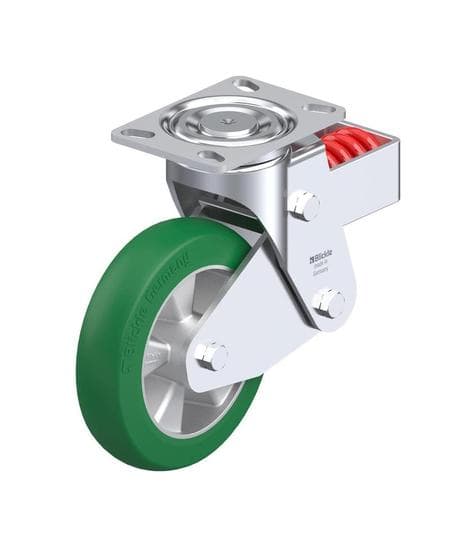

The Blickle LHF-ALST 200K-16-CO heavy duty swivel caster is designed to provide top quality mobility solutions for various industrial applications. This industrial swivel caster features high quality materials and precision ball bearings, ensuring reliable performance and long-lasting durability. The caster is equipped with a polyurethane wheel, offering excellent floor protection and smooth operation.
Benefits
- Heavy Duty Load Capacity: With a dynamic load capacity of 1655 lbs, this heavy duty swivel caster is ideal for demanding environments.
- Precision Ball Bearings:Â Maintenance-free precision ball bearings provide smooth and efficient movement.
- Polyurethane Wheel:Â The polyurethane caster wheel ensures floor protection and reduces noise during operation.
- Durable Construction:Â Made from high quality materials, this caster is built to withstand rigorous use.
| SKU | LHF-ALST 200K-16-CO | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 10-7/16 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 1655 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The Blickle LHF-ALST 200K-16-CO heavy duty swivel caster is suitable for a wide range of applications, including:
- Industrial carts and trolleys
- Heavy machinery and equipment
- Warehouse and distribution centers
- Manufacturing facilities
