Overview

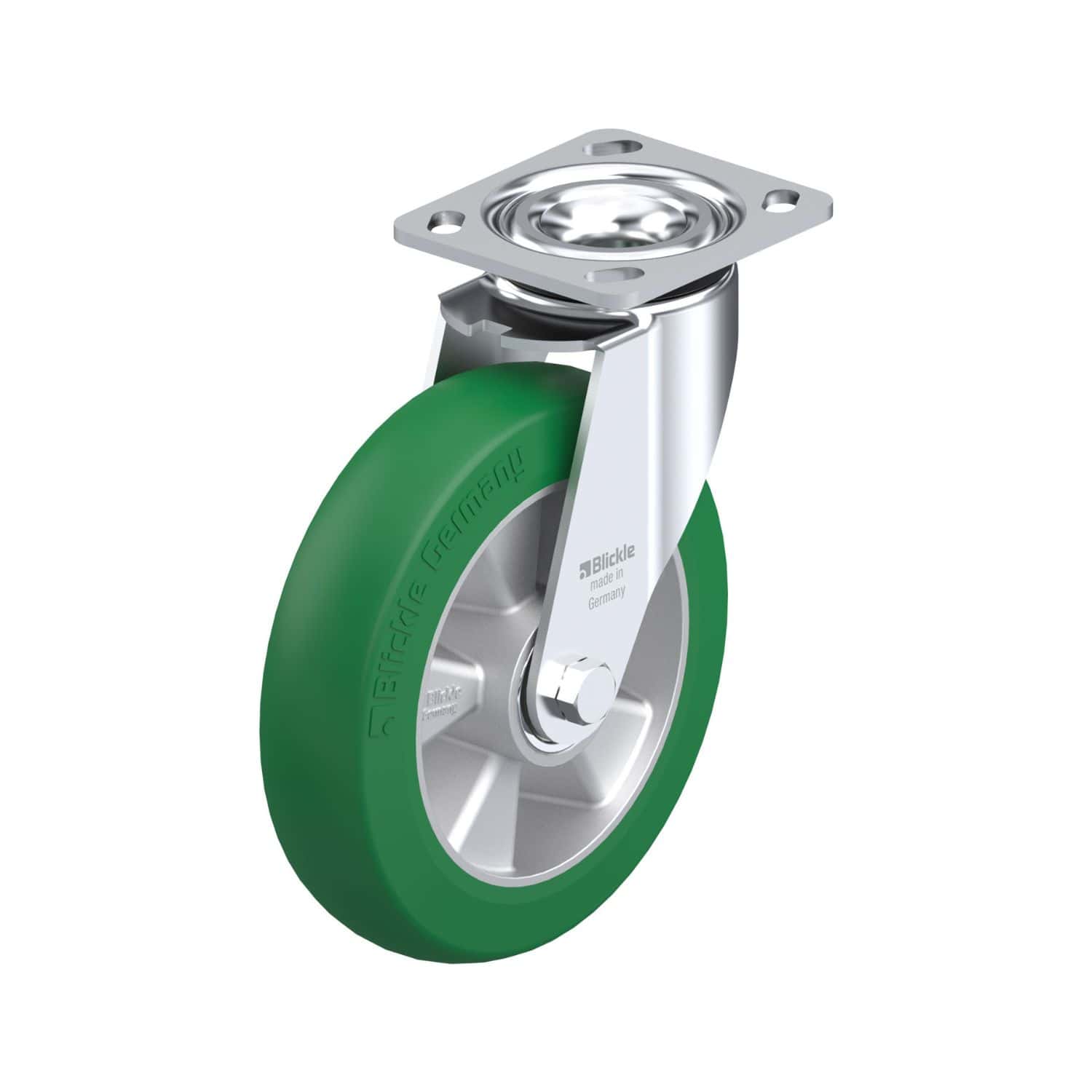

The LEH-ALST 200K-14-CO is a heavy duty swivel caster designed for demanding applications. This industrial swivel caster features a robust construction and high load capacity, making it ideal for various heavy-duty tasks.
Benefits
- Heavy Duty Design: The LEH-ALST 200K-14-CO is built to handle substantial loads, ensuring reliable performance in industrial settings.
- Polyurethane Wheel: Equipped with Blickle Softhane polyurethane caster wheels, this caster offers excellent floor protection and high abrasion resistance. The non-marking and non-staining tread ensures clean and safe operation.
- Precision Ball Bearings: The ball bearing system provides smooth and maintenance-free operation, enhancing the caster's longevity and performance.
- High Load Capacity: With a dynamic weight capacity of 1,255 lbs, this heavy duty swivel caster can support significant loads at speeds up to 2.5 mph.
| SKU | LEH-ALST 200K-14-CO | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 9-1/2 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 1255 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches x 3 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
- Industrial Environments: Suitable for use in factories, warehouses, and other industrial settings where heavy loads need to be moved efficiently.
- Heavy Equipment: Ideal for mounting on heavy machinery and equipment that require durable and reliable mobility solutions.
- Material Handling: Perfect for carts, dollies, and other material handling equipment that need to transport heavy items smoothly.
