Overview
Benefits

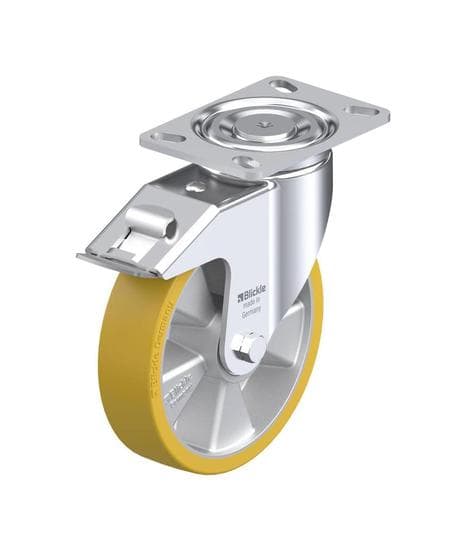

- Heavy Duty Swivel Caster: With a dynamic load capacity of 1765 lbs, this caster is perfect for demanding applications.
- Precision Ball Bearings:Â Maintenance-free and ensures smooth, efficient movement.
- Polyurethane Caster Wheels:Â Offers superior floor protection and durability.
- High-Quality Materials:Â Ensures long-lasting performance and reliability.
- Mounting Plates:Â Easy installation and secure attachment.
| SKU | LH-ALTH 200K-16-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Extrathane Polyurethane Elastomer |
| Overall Height | 9-5/8 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 1765 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 92 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Blickle Extrathane Polyurethane Wheels
Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.
Barron Equipment offers a full range of Extrathane wheel solutions, including:
- GTH Series: Cast iron wheel centers for rugged durability and high load capacity
- ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
- SETH & VSTH Series: Welded steel centers for extreme-duty applications
These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.
Check out the video below to learn more.
Applications
- Material handling equipment
- Warehouse carts and trolleys
- Industrial machinery
- Heavy-duty racks and shelving
- Mobile workstations
