Overview

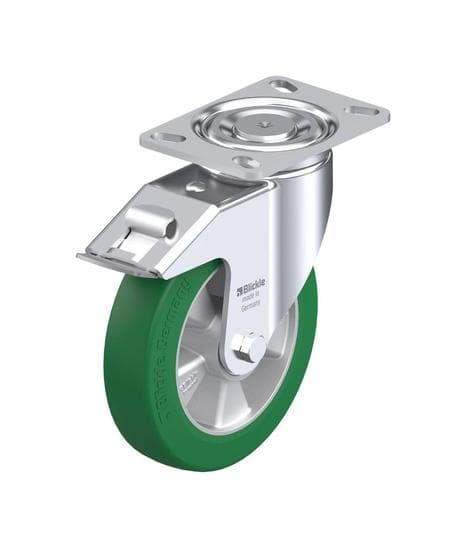

The LH-ALST 200K-16-FI is a heavy duty swivel caster designed for demanding applications. This industrial swivel caster features a robust construction with a pressed steel swivel rig and a top plate fitting. It is equipped with a brake system known as 'stop-fix' for secure locking.
Benefits
- Heavy Duty Design: The caster is built to handle heavy loads, making it suitable for industrial applications.
- Polyurethane Wheel: The wheel is made of Blickle Softhane® polyurethane, providing excellent floor protection and durability.
- Aluminum Wheel Center: The aluminum core ensures a lightweight yet strong structure.
- Extra Crowned Running Tread: This feature enhances maneuverability and reduces rolling resistance.
- Precision Ball Bearings: Maintenance-free precision ball bearings ensure smooth and reliable performance.
| SKU | LH-ALST 200K-16-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 9-5/8 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 1655 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
- Ideal for use in industrial settings where heavy loads need to be moved with ease.
- Suitable for environments requiring non-marking and non-staining wheels.
- Perfect for applications needing secure locking mechanisms to prevent unwanted movement.
