Vacuum Lift System

Overview

Barron Equipment and Overhead Door offers vacuum lift systems designed for safe and efficient material handling in industrial environments. The CM1000 vacuum lift system is part of a multi-tube design that provides higher lifting capacity than single-tube units. This system can lift up to 500 pounds, making it a strong solution for heavier loads and demanding applications.

These vacuum lift systems are built for consistent performance and long-term durability. The CM1000 includes multiple lift tubes, stainless steel components, and a reinforced structure designed for repeated use. The system also uses a high-capacity power unit that delivers steady vacuum and airflow, allowing the equipment to lift and move materials with controlled, reliable motion.

Features and Benefits

The CM1000 vacuum lift system is designed to provide improved control and safety during lifting. It includes automatic balance control, which allows the operator to hold a load at any height by releasing the control handle. This helps reduce sudden movement and improves accuracy when placing materials.

Ease of use is a key advantage of these vacuum lift systems. The system uses a progressive control valve that allows smooth lifting and lowering with simple hand operation. The ergonomic control handle is adjustable and designed to support a natural wrist position, helping reduce fatigue during repeated lifting tasks.

Durability is also a major benefit. The system includes stainless steel components and reinforced lift tubes that are designed to resist wear and punctures. The lift tubes are suitable for washdown environments and resistant to chemicals, making this vacuum lift system a reliable choice in facilities that require regular cleaning or operate in harsh conditions.

The system is also built for efficient movement. A ball-bearing mounted swivel allows full 360-degree rotation, making it easier to position loads during lifting and transfer. This helps improve workflow and reduce handling time when moving materials across a workspace.

Applications

Common Uses

Boxes and cartons
Bags and sacks
Drums and containers
Sheets and panels
Heavy packaged materials
Palletizing and depalletizing operations

Vacuum lift systems like the CM1000 are used in industries where heavier materials need to be handled safely and efficiently. These systems support smooth and controlled lifting, helping reduce the physical effort required from operators. With higher capacity and multi-tube design, this vacuum lift system is well suited for applications that involve frequent movement of heavier items.

By using vacuum lift systems, facilities can improve consistency in handling while helping protect both workers and materials. The system allows for steady lifting and precise placement, which supports safer operations and better workflow in manufacturing, warehousing, and packaging environments.

Selection Assistance

Choosing the right vacuum lift system depends on the size and weight of the materials being handled. The CM1000 vacuum lift system is designed for higher-capacity applications and offers a multi-tube design to support heavier loads. This makes it a strong option for facilities that require consistent lifting of larger or heavier items.

When selecting vacuum lift systems, it is important to consider load weight, product shape, and how often lifting occurs. Systems with higher capacity and proper configuration will provide more reliable performance over time.

Barron Equipment and Overhead Door can help customers select the right system based on their specific application. With the correct setup, vacuum lift systems can improve safety, reduce operator strain, and increase overall efficiency in material handling operations.

FAQs

What capacity does this multi-tube vacuum lift system provide?

This multi-tube vacuum lift system supports loads up to 500 pounds on non-porous surfaces. It uses a twin lift tube assembly with 7-inch diameter tubes to distribute suction evenly, making it a reliable option for lifting boxes, cartons, bags, drums, sheets, and other heavy materials found in packaging, warehousing, and manufacturing environments.

Can this vacuum lift system handle bags, sacks, and other porous materials?

Vacuum lift systems are most effective on non-porous surfaces where a strong seal can be created between the suction foot and the material. For porous items like certain bags or sacks, specialized suction feet or foam pads may be needed to maintain an adequate seal. Barron Equipment can help determine the right gripper configuration based on the specific materials your operation handles.

How does a multi-tube design compare to a single-tube vacuum lifter?

A multi-tube vacuum lift system uses two or more lift tubes to increase lifting capacity beyond what a single-tube unit can achieve. The CM1000 uses a twin-tube design rated for 500 lbs, while single-tube models typically handle lighter loads. Multi-tube configurations also offer a more stable lift for larger or heavier items, providing better control during transfer and placement.

What makes the control valve on this vacuum lifter different from competitors?

The system uses a patented progressive control valve with a Teflon-coated, self-wiping design that prevents sticking and maintains consistent performance over time. Each stroke of the valve is self-cleaning, which helps reduce maintenance needs. The valve provides smooth lifting and lowering with a simple fingertip in-and-out stroke, supporting a neutral wrist position that helps minimize repetitive strain during extended use.

How quiet is the power unit on this vacuum lift system?

The fully enclosed power unit operates at 74–75 dBA, which is comparable to normal conversation levels in most industrial environments. The enclosure also protects operators from accidental contact with hot motor and pump surfaces, while shielding the most expensive components from dust and debris in the working area.

Is operator training included with purchase?

Yes. Authorized local dealers are responsible for system start-up, operator training, and ongoing service. This ensures that operators understand how to use the vacuum lift system safely and effectively from the first day. Dealer support also includes access to knowledgeable service technicians who are experienced with both vacuum lifting equipment and the overhead crane systems used alongside them.

What filtration system does this equipment use?

The system includes a heavy duty, stainless steel, in-line filtration system rated at 10 microns. This fine-level filtration helps protect the vacuum pump from dust and particulate that can accumulate during material handling tasks. By keeping internal components clean, the filtration system supports longer equipment life and more consistent vacuum performance over time.

How do I choose between the 500 lb, 600 lb, and 900 lb vacuum lift models?

The right capacity depends on the weight of the heaviest materials your operation handles on a regular basis. The 500 lb model works well for boxes, cartons, bags, and packaged goods in warehousing and packaging applications. The 600 lb and 900 lb models are better suited for heavier materials like steel plates and large panels used in fabrication or manufacturing. Barron Equipment can review your application details and recommend the capacity that provides the best performance and cost effectiveness for your specific needs.

Resources

View PDF (Vacuum-Lifting-Application-Questionnaire.pdf)

View PDF (CM1000-Vacuum-Lifter.pdf)

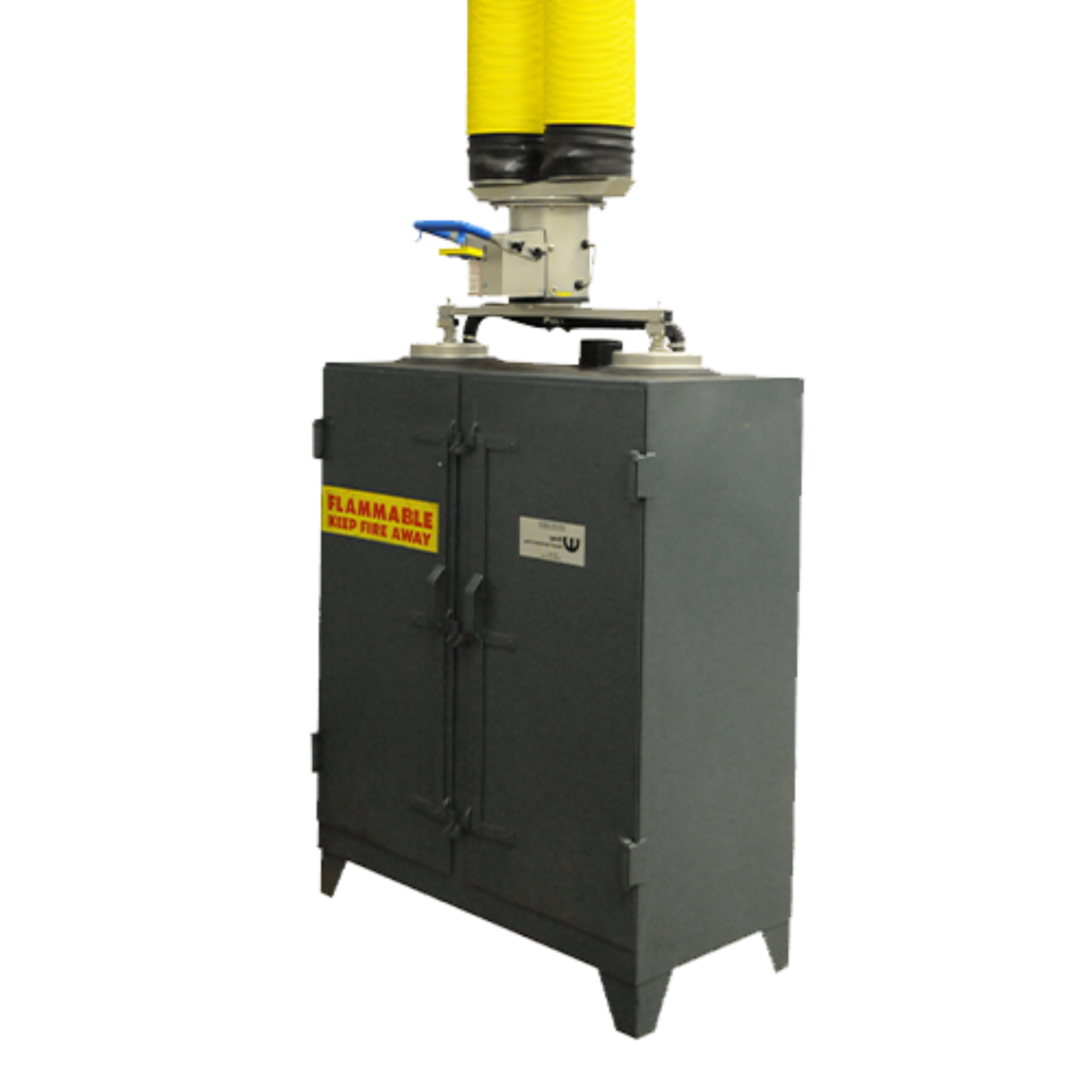

CM1000 Vacuum Lift System – 500 lb Capacity
