Overview

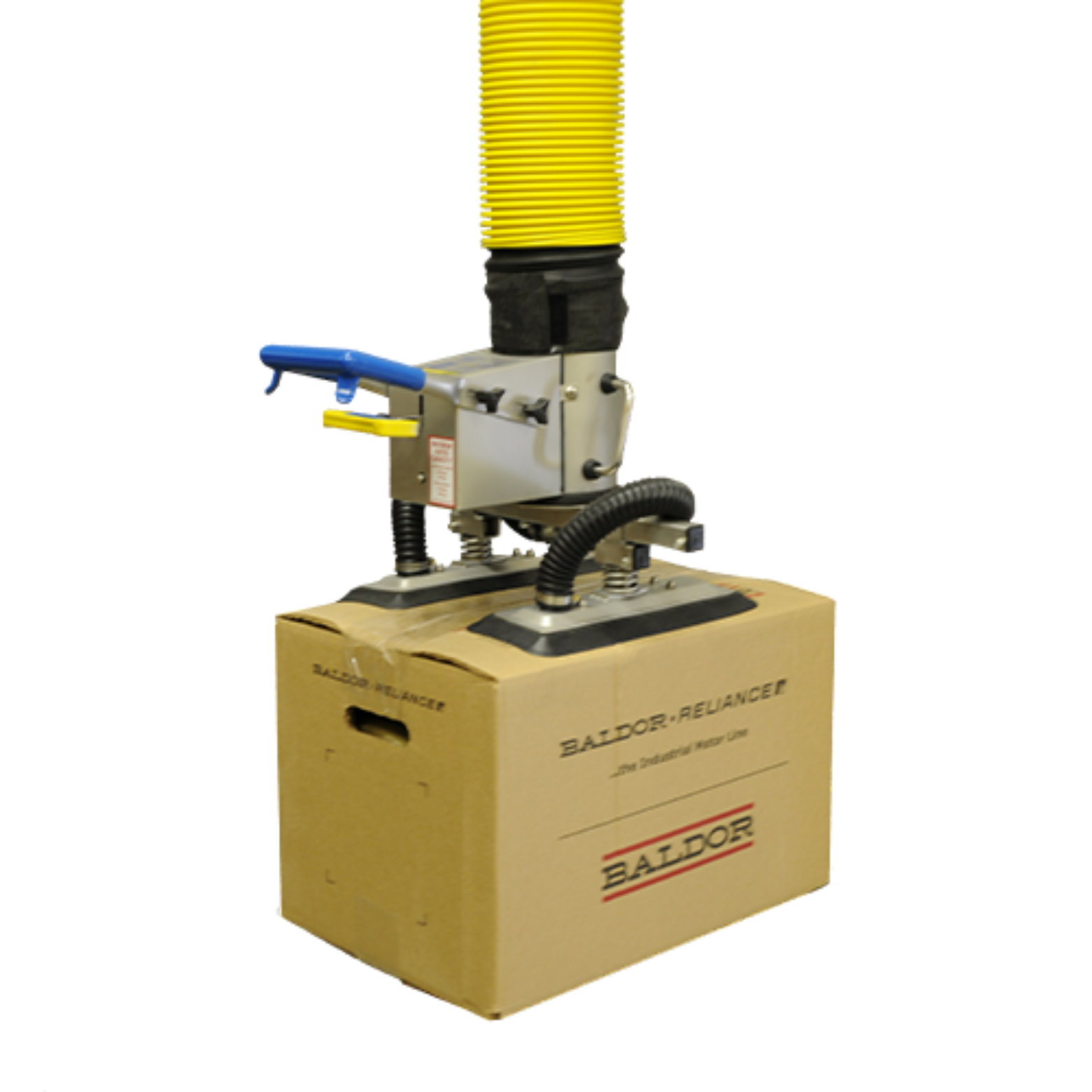

Barron Equipment and Overhead Door offers powered vacuum lifters designed to improve safety and control during material handling. The CM500 powered vacuum lifter is part of a single-tube system built for lifting a variety of products in daily operations. It can lift up to 140 pounds for non-porous materials and 110 pounds for porous materials, providing a reliable solution for different load types.
This powered vacuum lifter is designed for consistent performance and durability. The system includes stainless steel components, a reinforced lift tube, and an enclosed power unit that helps protect internal parts. These features allow operators to lift and move materials smoothly while supporting long-term use in industrial environments.
Features and Benefits
The CM500 powered vacuum lifter is designed to improve control during lifting. It uses automatic balance control, which allows the operator to hold a load at any height by releasing the control handle. This helps provide steady handling and improves placement accuracy.
Ease of use is a key benefit. The system uses a progressive control valve that allows smooth “in and out” movement with simple hand operation. The handle is adjustable to fit different users and supports a natural wrist position, helping reduce strain during repeated lifting tasks.
Durability is built into the design. The powered vacuum lifter includes stainless steel internal components and a reinforced lift tube designed to resist punctures and frequent use. The tube is also resistant to chemicals and suitable for washdown environments, making it useful in facilities that require regular cleaning.
The system also supports efficient movement. A ball-bearing mounted swivel allows full 360-degree rotation, making it easier to position loads during lifting and transfer. This helps improve workflow and handling efficiency across the facility.
Applications
Common Uses
- Boxes and cartons
- Bags and sacks
- Drums and pails
- Sheets and panels
- Packaged materials
- Loading and unloading operations
Powered vacuum lifters like the CM500 are used in many environments where safe and controlled lifting is important. These systems help reduce the physical effort needed to lift materials while improving consistency in handling. By allowing smooth lifting and precise placement, a powered vacuum lifter supports safer workflows and helps protect both the operator and the product being handled.
Selection Assistance
Choosing the right powered vacuum lifter depends on the type of material being handled and the weight of the load. The CM500 powered vacuum lifter is designed to handle both porous and non-porous materials within its rated capacity, making it a flexible solution for many applications.
Barron Equipment and Overhead Door can help customers select the right vacuum lifting system based on their needs. Important factors include load weight, material surface, and how often lifting is required. With the right setup, a powered vacuum lifter can help improve safety, reduce strain, and increase efficiency in material handling operations.
FAQs
What is the capacity of the CM500 powered vacuum lifter?
This powered vacuum lifter is rated for up to 140 pounds on non-porous surfaces and up to 110 pounds on porous materials. It is the entry-level model in the vacuum lifter product line and is designed for everyday lifting tasks in packaging, warehousing, and light manufacturing environments where loads are generally under 150 pounds.
What makes the CM500 different from larger vacuum lifter models?
The CM500 uses a smaller 5-inch diameter lift tube, compared to the 7-inch tubes found on higher-capacity models. It is powered by a 5 HP motor with a two-stage vacuum pump generating 16–18 inches of mercury. This compact configuration makes the CM500 lighter, easier to maneuver, and more energy efficient for operations that handle smaller, lighter products throughout the day. Despite the smaller tube size, the system includes the same stainless steel construction, automatic balance control, and ergonomic operator controls found across the entire product line.
Is a powered vacuum lifter worth the investment for lighter loads?
Yes. Even at lower weight levels, manually lifting and placing items throughout a full shift creates cumulative strain on operators. A powered vacuum lifter reduces the physical effort needed for each lift, helping prevent repetitive strain injuries and fatigue over time. It also improves consistency and speed, which can increase productivity in pick-and-place, loading, and palletizing tasks where the same motion is repeated hundreds of times per day.
What types of products work best with this entry-level vacuum lifter?
The CM500 is well suited for boxes, cartons, small bags and sacks, pails, packaged goods, and lightweight panels or sheets. It is a strong fit for end-of-line packaging stations, order fulfillment areas, and loading and unloading operations where items typically weigh between 20 and 140 pounds. For heavier materials or larger workpieces, Barron Equipment can recommend a higher-capacity model from the same product family.
Does the smaller lift tube affect the performance of the vacuum lifter?
The 5-inch tube provides adequate suction and lift capacity for materials within the system's rated range. It also offers a more compact profile that can be easier to work with in tighter spaces or on smaller products. The tube is made from the same RhinoTube copolymer resin and high-tensile steel reinforcing wire used on larger models, providing the same puncture resistance, chemical resistance, and million-flex durability regardless of tube size.
Can this powered vacuum lifter be used in clean or washdown environments?
Yes. The CM500 features stainless steel internal components and a chemical-resistant lift tube designed for use in washdown environments. The tube operates within a temperature range of -30° to +240°F and is USDA approved, making it suitable for food processing, pharmaceutical, and other regulated facilities where hygiene and regular cleaning are required.
How does the enclosed power unit protect against noise and accidental contact?
The power unit is fully enclosed and operates at 74–75 dBA, which is comparable to standard office noise levels. The enclosure also prevents accidental employee contact with hot motor and pump surfaces during operation. By protecting the most expensive components from dust, debris, and physical contact, the enclosed design helps extend equipment life and reduce maintenance needs.
Which vacuum lifter model should I choose for my application?
The right model depends on your maximum load weight, material type, and how often lifting occurs. The product family includes six configurations ranging from 140 to 900 pounds of lifting capacity across single-tube, twin-tube, and triple-tube designs. The CM500 is ideal for lighter everyday loads under 140 lbs. For heavier or more demanding applications, models like the CM700, CM750, CM1000, CM1400, or CM3000 provide increased capacity with larger tubes and more powerful vacuum pumps. Barron Equipment can review your specific requirements and recommend the best fit.
