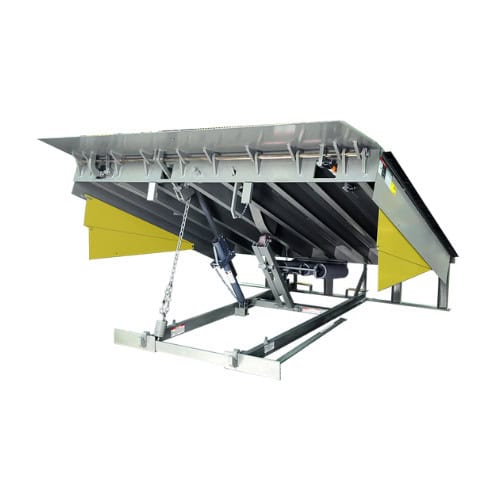

This clearance Poweramp LMP Series mechanical dock leveler gives your facility a strong and dependable way to improve loading dock safety. It has a 7 ft. wide × 8 ft. long platform built with four‑sided box construction and a lug‑hinge deck design for steady performance each day. With a 40,000 lb. Comparative Industry Rating (CIR), this leveler can handle heavy forklift traffic and larger pallet loads. It works through a simple mechanical system, so it does not need hydraulic or air‑powered equipment. The 16-inch yieldable lip plate adds strength and helps the deck connect smoothly with a trailer.

Features and Benefits

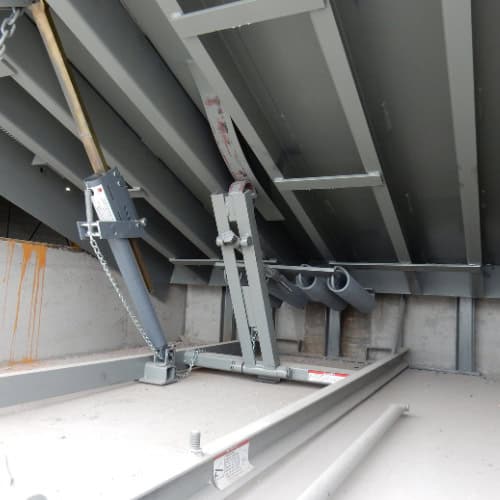

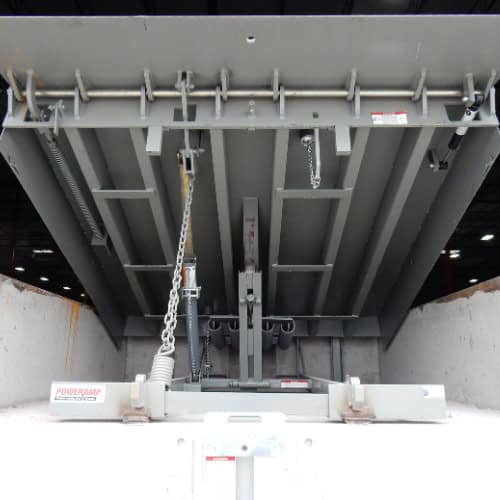

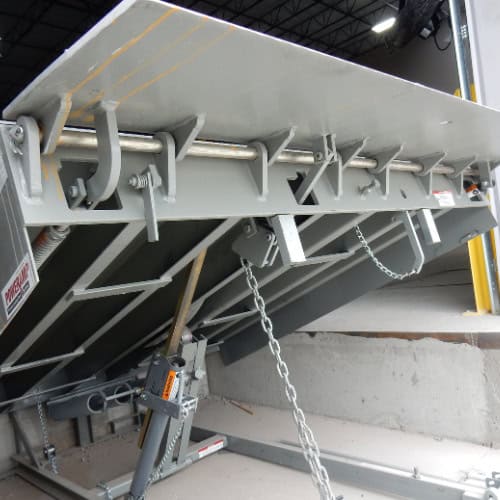

This LMP Series mechanical dock leveler uses a pull‑chain system that lifts the deck and extends the lip with one motion. Once raised, the operator walks the deck down onto the trailer, making it easy to use in busy warehouse settings. It includes Lip Drive positive lip extension and an extended‑range float and hold‑down mechanism, which help the leveler move safely with trailer float, especially with air‑ride trailers.

Safety features include multi‑position safety legs, working‑range toe guards, and a lockout/tagout maintenance strut. These features support safer operation and help reduce risks during maintenance.

Applications

This clearance Poweramp LMP mechanical dock leveler is a great fit for operations that need a sturdy, high‑capacity dock solution without the cost of powered equipment.

Common Application Areas

• Docks needing a 40,000 lb. CIR mechanical leveler for heavier forklift and pallet loads
• Facilities that prefer simple pull‑chain activation and walk‑down use
• Locations working with trailers that shift or use air‑ride suspension systems
• Sites that require a 7 ft. × 8 ft. pit‑style mechanical dock leveler footprint

This model can also adjust for up to 4 inches of canted truck beds, helping forklifts travel more safely when trailers are not level.

Selection Assistance

Before choosing this mechanical dock leveler, confirm that your dock pit is built for a 7′ × 8′ platform and that you need a 40K capacity unit. The LMP Series includes helpful safety features such as toe guards and a lockout/tagout strut, which support everyday warehouse and distribution work.

If your dock needs added accessories such as communication lights, dock lights, weather seals, extended lips, or vehicle restraints, these upgrades are available for the LMP Series. Barron Equipment and Overhead Door can help ensure this clearance model is the right match for your dock layout, trailer traffic, and workflow.
