Overview

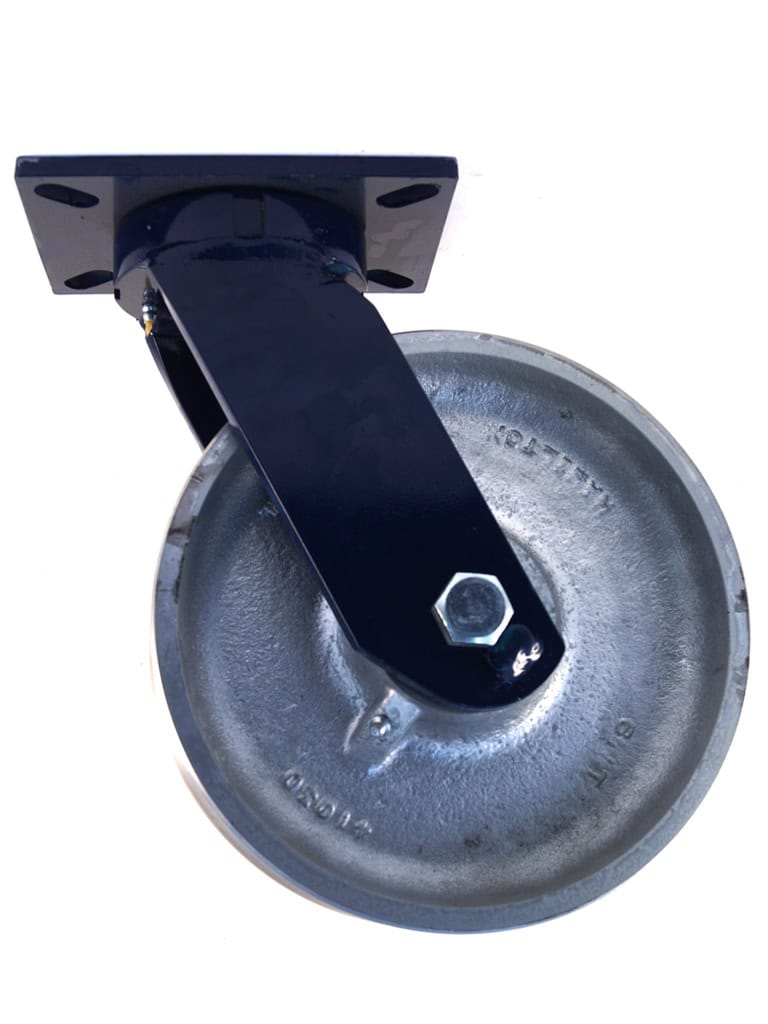

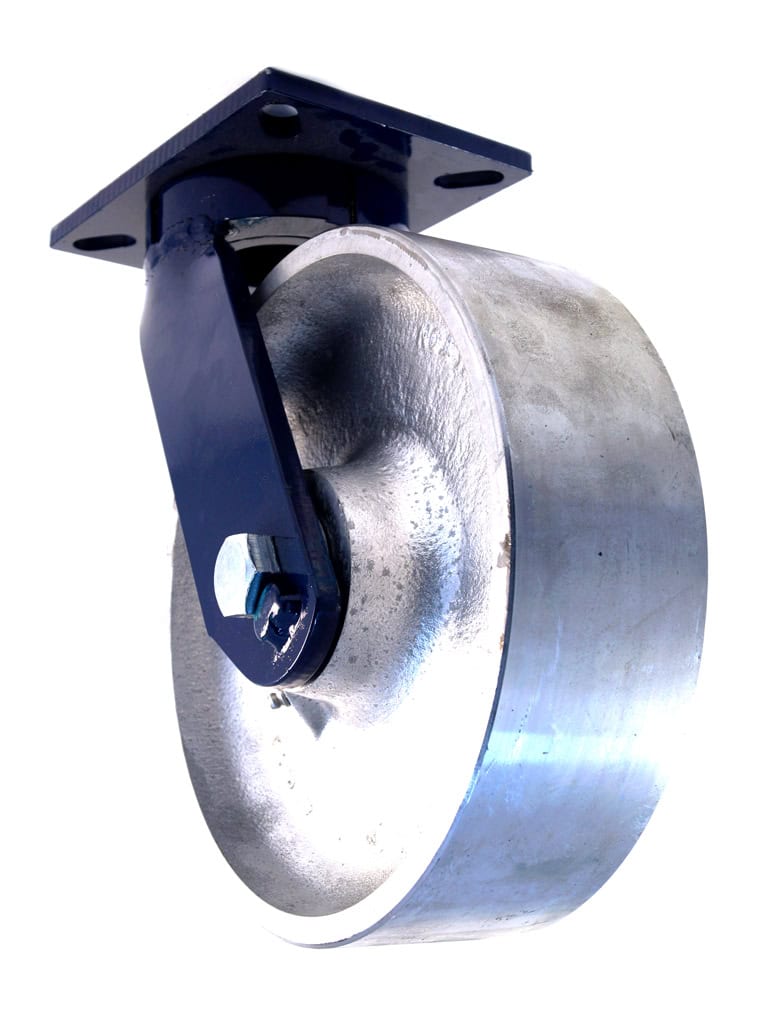

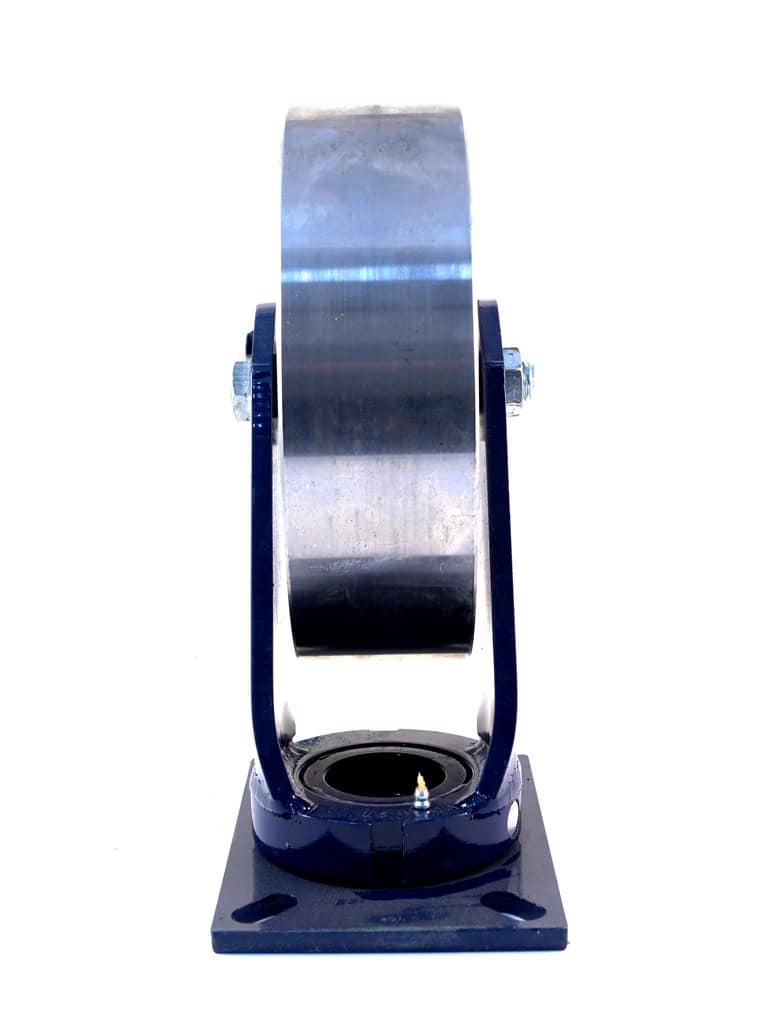

The Barron Equipment 70.103.55.FSB is a heavy duty kingpinless swivel caster designed for demanding industrial environments. This model features a 10-inch forged steel wheel with a 3-inch tread width, a large top plate (5-1/4" x 7-1/4"), and a precision-sealed ball bearing for maximum rolling ease. Engineered to support loads up to 3,500 lbs, the kingpinless rig eliminates the risk of kingpin failure, ensuring reliable performance under high-impact and heavy-duty conditions.
Features and Benefits
The 70.103.55.FSB caster delivers superior load capacity and durability thanks to its forged steel wheel, which is built to withstand heavy weights and harsh impacts. The kingpinless rig design offers increased longevity and reduces maintenance compared to traditional casters. Ball bearings are sealed and pre-lubricated, providing better ergonomics and less maintenance. The hard, slightly-crowned tread allows for smooth maneuverability and low push/pull force, while the wheel resists organic diluters, cleaning solutions, and high temperatures. The large top plate ensures stable mounting for heavy equipment, and the built-in brake provides secure stopping power for added safety and control.
Application
The 70.103.55.FSB heavy duty kingpinless swivel caster with forged steel wheel and ball bearing is engineered for demanding industrial environments. Its robust design and high load capacity make it ideal for:
- Heavy machinery and equipment carts
- Manufacturing lines and material handling in warehouses
- Platform trucks and industrial transport
- Environments requiring resistance to heat and chemicals
- Applications where secure stopping and safety are critical
For best results, forged steel wheels should be used on clean, debris-free floors. If your facility has floors with frequent debris or metal shavings, consider a softer wheel material to help purge embedded debris. Steel wheels are not recommended for smooth floors, as they may cause surface damage and offer limited traction. Always select casters based on dynamic load capacity, which reflects the maximum weight the caster can safely support while rolling, rather than static load capacity
Selection Assistance
Barron Equipment’s team of experts is ready to help you select the right caster for your needs. We provide guidance on product selection, ergonomics, and efficiency. When determining load capacity, always use dynamic load capacity for accurate performance. Contact us or fill out the form below for personalized support.
